Exhaust Manifolds, Heatshields and Electronic Engine Control of Aston Martin Aston Martin Rapide

View All

Aston Martin Rapide - Exhaust Manifolds, Heatshields and Electronic Engine Control

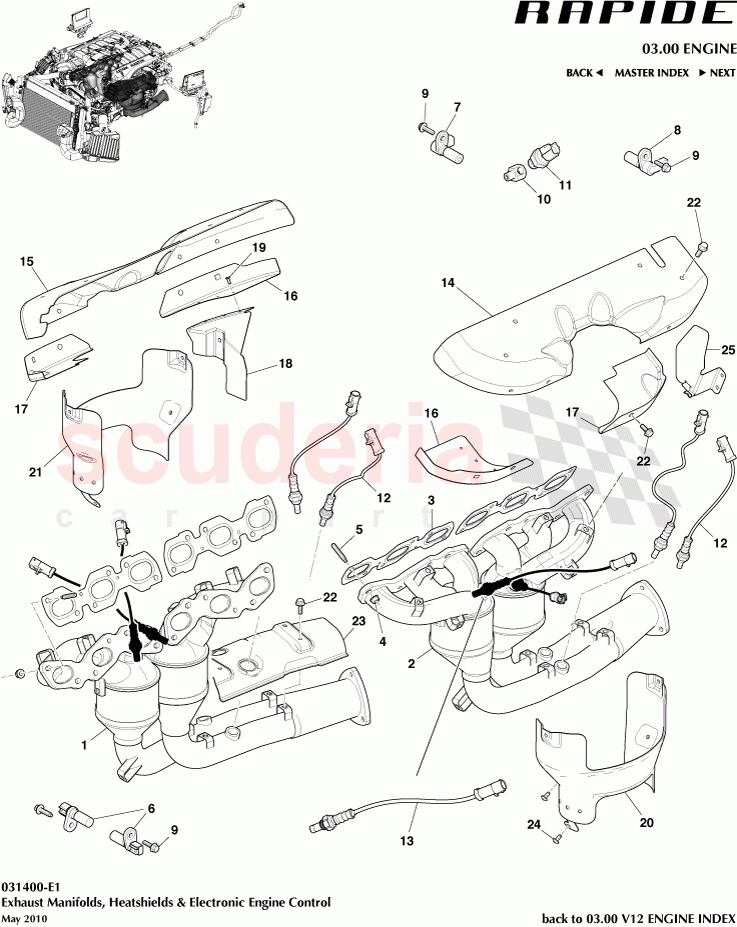

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G435G236BB	Manifold Assy, Exhaust, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G435G232BB	Manifold Exhaust LH	Enquire	To Order
	699736	Clip, Exhaust Heatshields	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510003	Gasket Exhaust Manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697775PK	Nut M8 Hex Flange Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703704	Stud, M8 x 13.6+16, Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3985756	SENSOR-CRANK TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785755	Sensor, Crankshaft Timing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433910014	Sensor, Crankshaft, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702542	BOLT M6 x 20 HF PIL 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED230610174	ADAPTOR-O/PRESS SWTC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910532	Switch, Oil Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120710720	SENSOR RING-IGNITION	Enquire	To Order
	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A462AC	Heat Shield, Exhaust Manifold, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A462BC	Heat Shield, Exhaust Manifold, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439A462AD	Heat Shield, Exhaust Manifold, RH Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG439N454AC	Heat Shield, Catalyst, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG439N454BC	Heat Shield, Catalyst, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23C5K286AA	SHIELD - EXHAUST PIPE HEAT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G436K342BB	CRANK SENSOR HEATSHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703691	Screw, M6 x 12, Pan Head Internal Torx	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G435G236BB	Manifold Assy, Exhaust, RH	8G435G236BB Manifold Assy, Exhaust, RH	-	1	Enquire
2	8G435G232BB	Manifold Exhaust LH	8G435G232BB Manifold Exhaust LH	-	1	Enquire
2	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields	-	4	Enquire
3	4G433510003	Gasket Exhaust Manifold	4G433510003 Gasket Exhaust Manifold	-	4	Enquire
4	697775PK	Nut M8 Hex Flange Head (Pack of 10)	697775PK Nut M8 Hex Flange Head (Pack of 10)	-	24	Enquire
5	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head	-	24	Enquire
6	3985756	SENSOR-CRANK TIMING	3985756 SENSOR-CRANK TIMING	-	1	Enquire
7	785755	Sensor, Crankshaft Timing	785755 Sensor, Crankshaft Timing	-	1	Enquire
8	4G433910014	Sensor, Crankshaft, Rear	4G433910014 Sensor, Crankshaft, Rear	-	1	Enquire
9	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8	-	4	Enquire
10	ED230610174	ADAPTOR-O/PRESS SWTC	ED230610174 ADAPTOR-O/PRESS SWTC	-	1	Enquire
11	1R123910532	Switch, Oil Pressure	1R123910532 Switch, Oil Pressure	-	1	Enquire
12	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	1R123910175 Sensor HEGO RH Rear Post Catalytic Converter	-	4	Enquire
13	1R120710720	SENSOR RING-IGNITION	1R120710720 SENSOR RING-IGNITION	-	1	Enquire
13	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	1R123910174 Heated Exhaust Gas Oxygen Sensor Rear	-	4	Enquire
14	4G439A462AC	Heat Shield, Exhaust Manifold, LH	4G439A462AC Heat Shield, Exhaust Manifold, LH	-	1	Enquire
15	4G439A462BC	Heat Shield, Exhaust Manifold, RH	4G439A462BC Heat Shield, Exhaust Manifold, RH	-	1	Enquire
16	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	8D339A462BB Heat Shield, Exhaust Manifold, LH Front	-	2	Enquire
17	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	4G439A462CC EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	-	2	Enquire
18	8G439A462AD	Heat Shield, Exhaust Manifold, RH Rear	8G439A462AD Heat Shield, Exhaust Manifold, RH Rear	-	1	Enquire
20	BG439N454AC	Heat Shield, Catalyst, LH	BG439N454AC Heat Shield, Catalyst, LH	-	1	Enquire
21	BG439N454BC	Heat Shield, Catalyst, RH	BG439N454BC Heat Shield, Catalyst, RH	-	1	Enquire
22	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	-	16	Enquire
23	AD23C5K286AA	SHIELD - EXHAUST PIPE HEAT RH	AD23C5K286AA SHIELD - EXHAUST PIPE HEAT RH	-	1	Enquire
24	8G436K342BB	CRANK SENSOR HEATSHIELD	8G436K342BB CRANK SENSOR HEATSHIELD	-	1	Enquire
25	703691	Screw, M6 x 12, Pan Head Internal Torx	703691 Screw, M6 x 12, Pan Head Internal Torx	-	9	Enquire
