Aston Martin Rapide - Evaporative Emissions

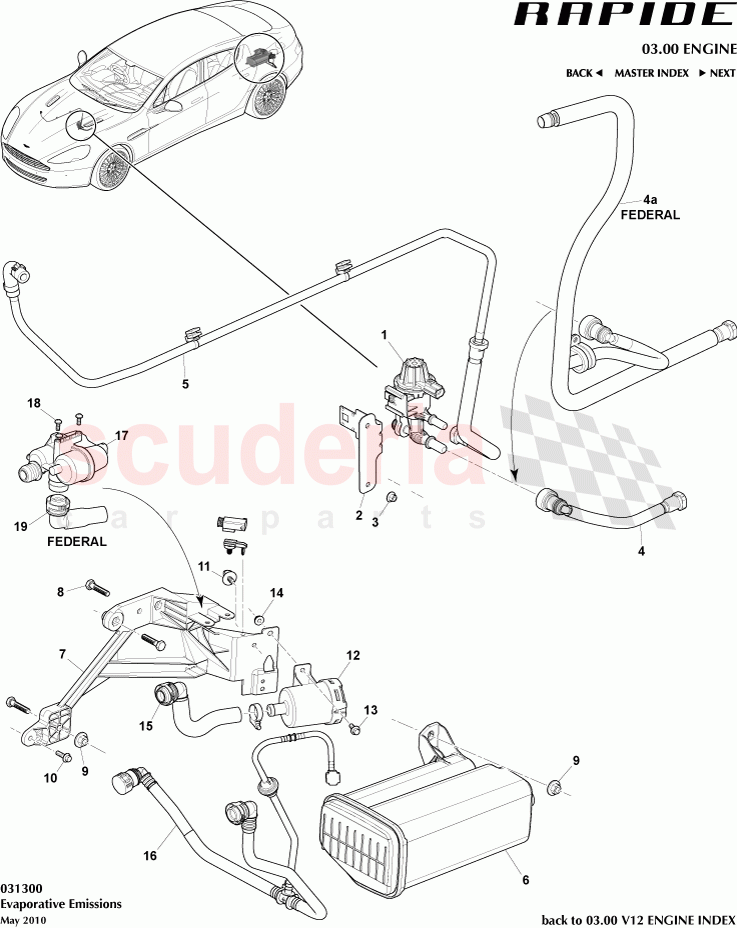

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G433410937	Valve Fuel/ Vapour Purge Electronic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439G743AA	Bracket, Electronic Fuel Vapour Management	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD239B051AA	TUBE - PURGE VALVE INLET	Enquire	To Order
	4G439B051AD	TUBE - PURGE VALVE INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439D289BD	TUBE ASSY - EVMV TO MANIFOLD RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6H439G750AA	Cannister, Carbon	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439C177AA	Bracket, Fuel Tank Vent Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703161	Nut Hex M8 Flanged	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699711	Â‘P Clip, 23 x 15 x M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439B995AA	Filter, Fuel/Vapour Storage Canister	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439G271BA	Hose assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439A228AB	VAPOUR LINE FROM CANISTER TO TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY539C111AA	PMP ON BD DGNTL LEK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439E857AB	FUEL CARBON CANNISTE BRACKET ASSY FEDERAL	Enquire	To Order
	AD439E857AB	FUEL CARBON CANNISTE BRACKET ASSY FEDERAL	Enquire	To Order
	AD439G271AA	Hose assy	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G433410937	Valve Fuel/ Vapour Purge Electronic	4G433410937 Valve Fuel/ Vapour Purge Electronic	-	1	Enquire
2	4G439G743AA	Bracket, Electronic Fuel Vapour Management	4G439G743AA Bracket, Electronic Fuel Vapour Management	-	1	Enquire
3	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
4	AD239B051AA	TUBE - PURGE VALVE INLET	AD239B051AA TUBE - PURGE VALVE INLET	-	1	Enquire
4	4G439B051AD	TUBE - PURGE VALVE INLET	4G439B051AD TUBE - PURGE VALVE INLET FED	-	1	Enquire
5	4G439D289BD	TUBE ASSY - EVMV TO MANIFOLD RH	4G439D289BD TUBE ASSY - EVMV TO MANIFOLD RH	-	1	Enquire
6	6H439G750AA	Cannister, Carbon	6H439G750AA Cannister, Carbon	-	1	Enquire
7	AD439C177AA	Bracket, Fuel Tank Vent Valve	AD439C177AA Bracket, Fuel Tank Vent Valve	-	1	Enquire
9	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged	-	2	Enquire
10	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
11	699711	Â‘P Clip, 23 x 15 x M6	699711 Â‘P Clip, 23 x 15 x M6	-	1	Enquire
12	4G439B995AA	Filter, Fuel/Vapour Storage Canister	4G439B995AA Filter, Fuel/Vapour Storage Canister	-	1	Enquire
13	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	1	Enquire
14	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	1	Enquire
15	AD439G271BA	Hose assy	AD439G271BA Hose assy	-	1	Enquire
16	AD439A228AB	VAPOUR LINE FROM CANISTER TO TANK	AD439A228AB VAPOUR LINE FROM CANISTER TO TANK	-	1	Enquire
17	HY539C111AA	PMP ON BD DGNTL LEK	HY539C111AA PMP ON BD DGNTL LEK FED	-	1	Enquire
19	AD439E857AB	FUEL CARBON CANNISTE BRACKET ASSY FEDERAL	AD439E857AB FUEL CARBON CANNISTE BRACKET ASSY FEDERAL FED, items 6, 7, 8, 12, 17, 18 & 19	-	1	Enquire
19	AD439E857AB	FUEL CARBON CANNISTE BRACKET ASSY FEDERAL	AD439E857AB FUEL CARBON CANNISTE BRACKET ASSY FEDERAL Items 6, 7, 8, 12 & 15	-	1	Enquire
19	AD439G271AA	Hose assy	AD439G271AA Hose assy FED,	-	1	Enquire
