Accessory Drive of Aston Martin Aston Martin Rapide

View All

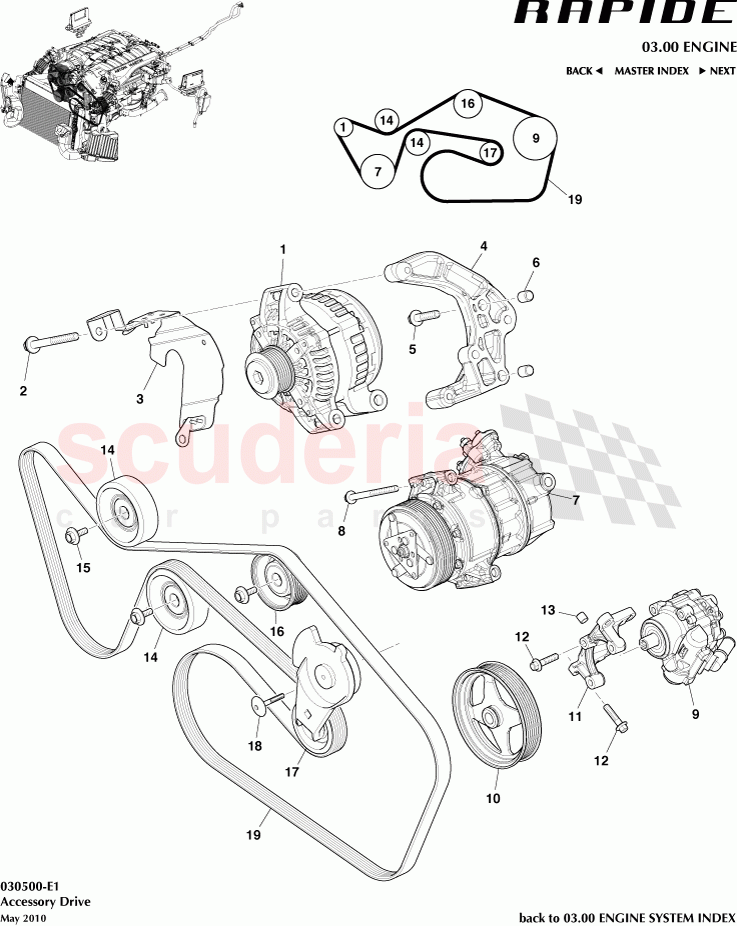

Aston Martin Rapide - Accessory Drive

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D3310300AA	Alternator, 200A	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	704079	Bolt, M10 x 150, Hex Flg Hd	Enquire	To Order
	700140	Bolt and Washer, M10 x 97.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4310A346AA	HEAT SHIELD ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3310239AB	BRKT ASY-ALT MTG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703692	Bolt, flg, M10x45, Alt bkt to cl hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697759	Dowel, hollow, 14.0 X 17.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4319D629AA	COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702557	BOLT M8 X 100 HF 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD433A696AA	P/STRG PUMP & PULLEY (ENGINE MOUNTED)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD433D673AA	Pulley, PAS pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4336189AB	Bracket, PAS Pump mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702859	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120510488	Pulley, Engine Idler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707627	SCREW M8 X 25MM HEX HEAD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120510530	Idler Pulley Grooved	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585368	Tensioner Drive Belt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ED238620AA	Feed Drive Belt	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D3310300AA	Alternator, 200A IN STOCK	8D3310300AA Alternator, 200A IN STOCK	-	1	Enquire
2	704079	Bolt, M10 x 150, Hex Flg Hd	704079 Bolt, M10 x 150, Hex Flg Hd	-	1	Enquire
2	700140	Bolt and Washer, M10 x 97.5	700140 Bolt and Washer, M10 x 97.5	-	2	Enquire
3	AD4310A346AA	HEAT SHIELD ALTERNATOR	AD4310A346AA HEAT SHIELD ALTERNATOR	-	1	Enquire
4	CD3310239AB	BRKT ASY-ALT MTG	CD3310239AB BRKT ASY-ALT MTG	-	1	Enquire
5	703692	Bolt, flg, M10x45, Alt bkt to cl hd	703692 Bolt, flg, M10x45, Alt bkt to cl hd	-	3	Enquire
6	697759	Dowel, hollow, 14.0 X 17.5	697759 Dowel, hollow, 14.0 X 17.5	-	2	Enquire
7	AD4319D629AA	COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT	AD4319D629AA COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT	-	1	Enquire
8	702557	BOLT M8 X 100 HF 8	702557 BOLT M8 X 100 HF 8 Air Con Compressor	-	3	Enquire
9	AD433A696AA	P/STRG PUMP & PULLEY (ENGINE MOUNTED) IN STOCK	AD433A696AA P/STRG PUMP & PULLEY (ENGINE MOUNTED) IN STOCK	-	1	Enquire
10	AD433D673AA	Pulley, PAS pump	AD433D673AA Pulley, PAS pump	-	1	Enquire
11	AD4336189AB	Bracket, PAS Pump mounting	AD4336189AB Bracket, PAS Pump mounting	-	1	Enquire
12	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10) IN STOCK	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) IN STOCK	-	7	Enquire
13	702859	PIN	702859 PIN	-	3	Enquire
14	1R120510488	Pulley, Engine Idler	1R120510488 Pulley, Engine Idler	-	2	Enquire
15	707627	SCREW M8 X 25MM HEX HEAD IN STOCK	707627 SCREW M8 X 25MM HEX HEAD IN STOCK	-	3	Enquire
16	1R120510530	Idler Pulley Grooved	1R120510530 Idler Pulley Grooved	-	1	Enquire
17	585368	Tensioner Drive Belt IN STOCK	585368 Tensioner Drive Belt IN STOCK	-	1	Enquire
19	ED238620AA	Feed Drive Belt IN STOCK	ED238620AA Feed Drive Belt IN STOCK	-	1	Enquire
