Engine Power Conversion of Aston Martin Aston Martin Rapide

View All

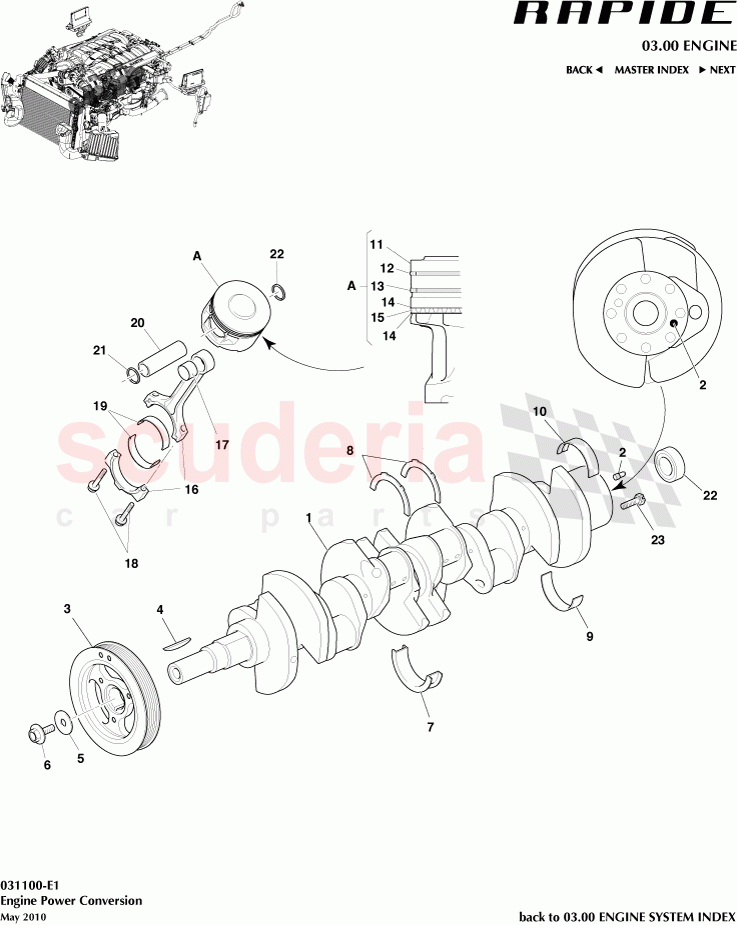

Aston Martin Rapide - Engine Power Conversion

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G430210229	CrankShaft	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R124110177	DOWEL PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210939	Pulley Assy, Crankshaft	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	285008	Key, Crankshaft, 4.76 x 53.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210821	WASHER-13.5 x 39.5 x 7.35 FL STL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210822	BOLT-M12x48 HF PIL10	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4R3E6A339BA	Washer Crankshaft Main Thrust Lower	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012)	Enquire	IN STOCK
	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	Enquire	To Order
	285020	BEARING CRANKSHAFT MAIN LOWER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2	Enquire	IN STOCK
	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3	Enquire	To Order
	8G436100AA	Piston and connecting rod assy	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D330210018	Piston, Grade Size 1	Enquire	To Order
	4G4E6110BB	Piston, Grade 2	Enquire	To Order
	4G4E6110CB	Piston, Grade 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210060	Piston Ring Compression Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285013	Piston Ring Compression Lower Orange/Yellow Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285014	Segment, Piston Oil Control Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285015	Spacer, Piston Oil Control Segment	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ED236200AB	ROD ASY CONN	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430210968	BUSH - CONN ROD V12	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	285018	Bolt, Connecting Rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6E5E6211AB	Bearing, Connecting Rod	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430210955	PIN-PISTON (SINGLE)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120210448	Retainer, Piston Pin	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120210061	Bearing Assembly Pilot	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697748	Plug-Oil Pan Drain	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G430210229	CrankShaft IN STOCK	4G430210229 CrankShaft IN STOCK	-	1	Enquire
2	1R124110177	DOWEL PIN	1R124110177 DOWEL PIN	-	1	Enquire
3	4G430210939	Pulley Assy, Crankshaft IN STOCK	4G430210939 Pulley Assy, Crankshaft IN STOCK	-	1	Enquire
4	285008	Key, Crankshaft, 4.76 x 53.5	285008 Key, Crankshaft, 4.76 x 53.5	-	1	Enquire
5	4G430210821	WASHER-13.5 x 39.5 x 7.35 FL STL	4G430210821 WASHER-13.5 x 39.5 x 7.35 FL STL	-	1	Enquire
6	4G430210822	BOLT-M12x48 HF PIL10 IN STOCK	4G430210822 BOLT-M12x48 HF PIL10 IN STOCK	-	1	Enquire
7	4R3E6A339BA	Washer Crankshaft Main Thrust Lower IN STOCK	4R3E6A339BA Washer Crankshaft Main Thrust Lower IN STOCK	-	1	Enquire
8	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper IN STOCK	BR3E6A341BA Washer, Crankshaft Main Thrust Upper IN STOCK	-	2	Enquire
9	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012) IN STOCK	4R3E6A338BA Bearing, Crankshaft, Main, Lower (.012) IN STOCK	-	-	Enquire
9	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	4R3E6A338CA Bearing, Crankshaft, Main, Lower (.014)	-	-	Enquire
9	285020	BEARING CRANKSHAFT MAIN LOWER IN STOCK	285020 BEARING CRANKSHAFT MAIN LOWER IN STOCK	-	6	Enquire
10	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2 IN STOCK	4R3E6333BA Bearing Crankshaft Main Upper Grade 2 IN STOCK	-	-	Enquire
10	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3	4R3E6333CA Bearing Crankshaft Main Upper Grade 3	-	-	Enquire
10	8G436100AA	Piston and connecting rod assy	8G436100AA Piston and connecting rod assy	-	12	Enquire
10	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1 IN STOCK	4R3E6333AA Bearing Crankshaft Main Upper Grade 1 IN STOCK	-	7	Enquire
11	8D330210018	Piston, Grade Size 1	8D330210018 Piston, Grade Size 1	-	-	Enquire
11	4G4E6110BB	Piston, Grade 2	4G4E6110BB Piston, Grade 2	-	-	Enquire
11	4G4E6110CB	Piston, Grade 3	4G4E6110CB Piston, Grade 3	-	-	Enquire
12	1R120210060	Piston Ring Compression Upper	1R120210060 Piston Ring Compression Upper	-	12	Enquire
13	285013	Piston Ring Compression Lower Orange/Yellow Ring	285013 Piston Ring Compression Lower Orange/Yellow Ring	-	12	Enquire
14	285014	Segment, Piston Oil Control Ring	285014 Segment, Piston Oil Control Ring	-	24	Enquire
15	285015	Spacer, Piston Oil Control Segment IN STOCK	285015 Spacer, Piston Oil Control Segment IN STOCK	-	12	Enquire
16	ED236200AB	ROD ASY CONN IN STOCK	ED236200AB ROD ASY CONN IN STOCK	-	12	Enquire
17	4G430210968	BUSH - CONN ROD V12 IN STOCK	4G430210968 BUSH - CONN ROD V12 IN STOCK	-	12	Enquire
18	285018	Bolt, Connecting Rod	285018 Bolt, Connecting Rod	-	24	Enquire
19	6E5E6211AB	Bearing, Connecting Rod IN STOCK	6E5E6211AB Bearing, Connecting Rod IN STOCK	-	24	Enquire
20	4G430210955	PIN-PISTON (SINGLE) IN STOCK	4G430210955 PIN-PISTON (SINGLE) IN STOCK	-	12	Enquire
21	1R120210448	Retainer, Piston Pin IN STOCK	1R120210448 Retainer, Piston Pin IN STOCK	-	24	Enquire
22	1R120210061	Bearing Assembly Pilot IN STOCK	1R120210061 Bearing Assembly Pilot IN STOCK	-	1	Enquire
23	697748	Plug-Oil Pan Drain IN STOCK	697748 Plug-Oil Pan Drain IN STOCK	-	8	Enquire
