Aston Martin Rapide - Engine Structure

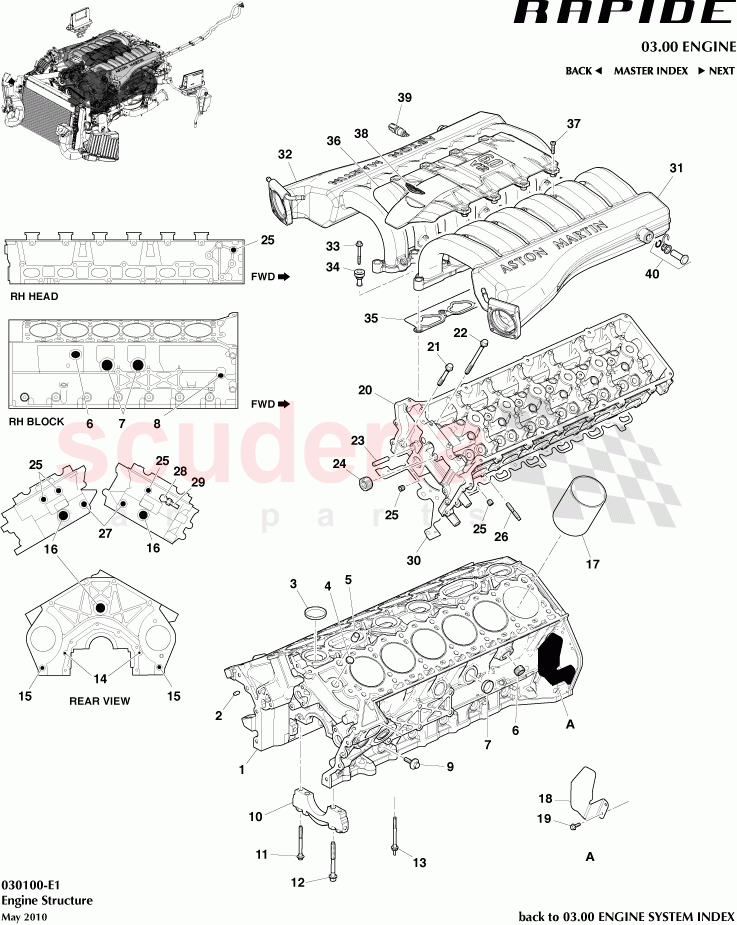

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD436015AA	Cylinder block assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	Dowel, 8 x 18	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	185000	Plug, 52.6 dia cup	$16.88	To Order

Photo	Part No	Description	Price (each)	Stock
	185001	Plug, Cup Expansion	$7.93	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	Dowel, 16 x 19	$0.89	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	184997	Plug 1.26 Cup (32mm)	$5.21	To Order

Photo	Part No	Description	Price (each)	Stock
	186452	Plug, 1/4-18 x 10.8	$16.88	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110819	Bolt Main Bearing Cap	$39.44	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	$89.73	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110203	Bolt, M10 x 1.5 x 91	$15.62	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head	$6.42	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	185133	Stud Bolt, Bearing Caps	$28.95	To Order

Photo	Part No	Description	Price (each)	Stock
	707151	PIN-6x16 DWL CHMFR H	$23.66	To Order

Photo	Part No	Description	Price (each)	Stock
	699134	Dowel, Hollow	$18.68	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	7G436055AA	Cylinder Liner, V12	$62.61	To Order

Photo	Part No	Description	Price (each)	Stock
	8G436K342BB	CRANK SENSOR HEATSHIELD	$50.44	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	8G436M099AA	Cylinder head assy LH (inc valves/springs/adjusters etc, minus cams etc)	$15,847.90	To Order
	8G436049AA	HD ASY CYL(6.0L-V12-	$9,820.77	To Order

Photo	Part No	Description	Price (each)	Stock
	703690	Bolt M8 x 63 Hex Flange Head	$29.90	To Order

Photo	Part No	Description	Price (each)	Stock
	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	$21.04	To Order

Photo	Part No	Description	Price (each)	Stock
	184996	DOWEL-10x49.25	$2.75	To Order

Photo	Part No	Description	Price (each)	Stock
	185032	Plug 1- 11.5x18 Hl	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186452	Plug, 1/4-18 x 10.8	$16.88	To Order

Photo	Part No	Description	Price (each)	Stock
	703704	Stud, M8 x 13.6+16, Hex Head	$10.84	To Order

Photo	Part No	Description	Price (each)	Stock
	686441	PLUG-3/8 - 18x 10.8	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	ED230610174	ADAPTOR-O/PRESS SWTC	$137.50	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910532	Switch, Oil Pressure	$8.95	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336083AA	Gasket, Cylinder Head, LH	$400.26	To Order
	CD336051AA	Gasket, Cylinder Head, RH	$400.26	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439425CA	Intake, manifold assy LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439425DA	Intake, manifold assy RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	$14.64	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G430810002	Isolator, Intake, Manifold	$29.47	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	$400.81	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439J444AA	SUPPORT BRACE INTAKE MANIFOLD	$596.91	To Order

Photo	Part No	Description	Price (each)	Stock
	702847	SCREW-M6x25 PAN INT LOB 8	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43001B46BB	MANIFOLD BADGE	$117.19	To Order

Photo	Part No	Description	Price (each)	Stock
	EG330810726	SENSOR-AIR TEMPERATURE	$13.98	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432A411AA	CARTRIDGE ASSEMBLY	$111.52	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	91950	ENGINE ASSY-DB9 08MY	91950 ENGINE ASSY-DB9 08MY RAPIDE	$30,440.59	1
1	AD436015AA	Cylinder block assy	AD436015AA Cylinder block assy AM09	-	1	Enquire
2	184995	Dowel, 8 x 18	184995 Dowel, 8 x 18	$1.16	2
3	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup	$16.88	4
4	185001	Plug, Cup Expansion	185001 Plug, Cup Expansion	$7.93	1
5	184994	Dowel, 16 x 19	184994 Dowel, 16 x 19	$0.89	4
6	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	$1.60	2
7	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm)	$5.21	4
8	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8	$16.88	7
9	4G430110819	Bolt Main Bearing Cap ARRIVING SOON	4G430110819 Bolt Main Bearing Cap ARRIVING SOON	$39.44	14
10	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	1R120110678 CAP-CRANKSHAFT MAIN BRG-REAR	$89.73	7
11	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91	$15.62	14
12	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	$6.42	10
13	185133	Stud Bolt, Bearing Caps	185133 Stud Bolt, Bearing Caps	$28.95	4
14	707151	PIN-6x16 DWL CHMFR H	707151 PIN-6x16 DWL CHMFR H	$23.66	2
15	699134	Dowel, Hollow	699134 Dowel, Hollow	$18.68	2
16	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	$1.60	3
17	7G436055AA	Cylinder Liner, V12	7G436055AA Cylinder Liner, V12	$62.61	12
18	8G436K342BB	CRANK SENSOR HEATSHIELD	8G436K342BB CRANK SENSOR HEATSHIELD	$50.44	1
19	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	$0.21	2
20	8G436M099AA	Cylinder head assy LH (inc valves/springs/adjusters etc, minus cams etc)	8G436M099AA Cylinder head assy LH (inc valves/springs/adjusters etc, minus cams etc)	$15,847.90	1
20	8G436049AA	HD ASY CYL(6.0L-V12-	8G436049AA HD ASY CYL(6.0L-V12-	$9,820.77	1
21	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head	$29.90	4
22	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head	$21.04	28
23	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25	$2.75	2
24	185032	Plug 1- 11.5x18 Hl	185032 Plug 1- 11.5x18 Hl	-	2	Enquire
25	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8	$16.88	2
26	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head	$10.84	24
27	686441	PLUG-3/8 - 18x 10.8	686441 PLUG-3/8 - 18x 10.8	$0.91	2
28	ED230610174	ADAPTOR-O/PRESS SWTC	ED230610174 ADAPTOR-O/PRESS SWTC	$137.50	1
29	1R123910532	Switch, Oil Pressure	1R123910532 Switch, Oil Pressure	$8.95	1
30	CD336083AA	Gasket, Cylinder Head, LH	CD336083AA Gasket, Cylinder Head, LH	$400.26	1
30	CD336051AA	Gasket, Cylinder Head, RH	CD336051AA Gasket, Cylinder Head, RH	$400.26	1
31	8G439425CA	Intake, manifold assy LHS	8G439425CA Intake, manifold assy LHS	-	1	Enquire
32	8G439425DA	Intake, manifold assy RHS	8G439425DA Intake, manifold assy RHS	-	1	Enquire
33	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 ARRIVING SOON	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 ARRIVING SOON	$14.64	14
34	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold	$29.47	14
35	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2)	$400.81	2
36	8G439J444AA	SUPPORT BRACE INTAKE MANIFOLD	8G439J444AA SUPPORT BRACE INTAKE MANIFOLD	$596.91	1
37	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	$1.46	8
38	4G43001B46BB	MANIFOLD BADGE	4G43001B46BB MANIFOLD BADGE	$117.19	1
39	EG330810726	SENSOR-AIR TEMPERATURE	EG330810726 SENSOR-AIR TEMPERATURE	$13.98	1
40	4G432A411AA	CARTRIDGE ASSEMBLY	4G432A411AA CARTRIDGE ASSEMBLY	$111.52	1
