Valve Train of Aston Martin Aston Martin Rapide

View All

Aston Martin Rapide - Valve Train

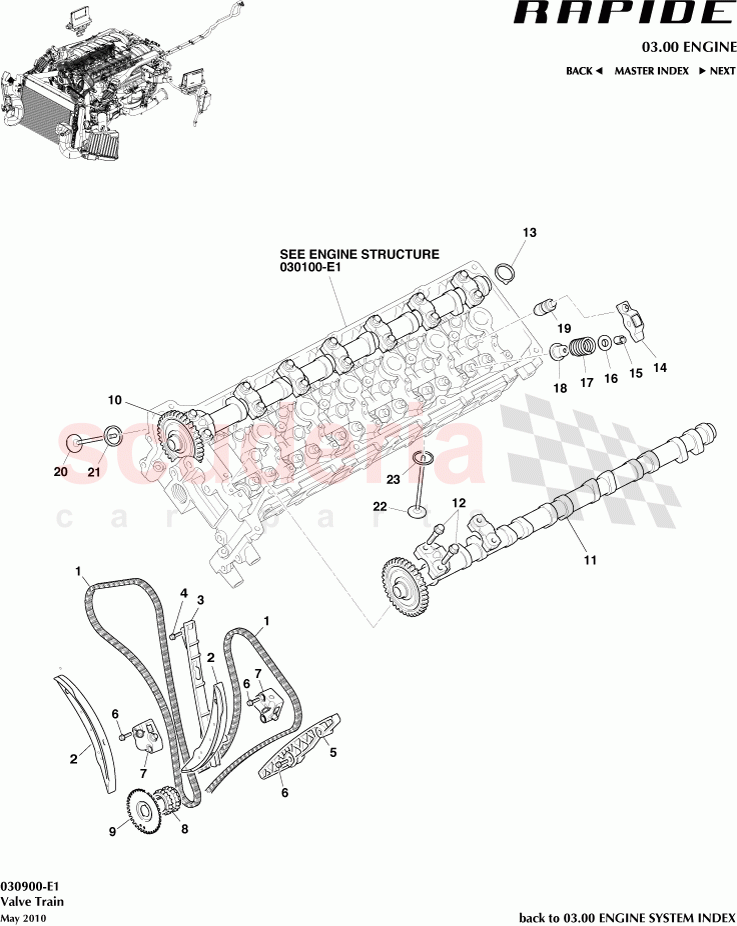

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R120310483	Chain, Timing	$114.09	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430310013	Arm Assembly, Timing Chain Tensioner	$58.53	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310069	Guide, Timing Chain, RH	$75.01	To Order

Photo	Part No	Description	Price (each)	Stock
	702851	BOLT & WASHER M8 X 32 HEX FLANGE	$5.21	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310070	Guide, Timing Chain, LH	$75.01	To Order

Photo	Part No	Description	Price (each)	Stock
	703694	BOLT & WASHER M8x45 HF PIL 8	$6.04	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310071	Tensioner - Timing Chain	$285.69	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	$68.28	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120710720	SENSOR RING-IGNITION	$50.58	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4E6A267AB	Camshaft Assy, Intake, LH	$1,284.71	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4E6A269AB	Camshaft Assy, Exhaust, LH	$1,267.45	To Order
	7G4E6A268AB	Camshaft Assy, Exhaust, RH	$1,267.45	To Order
	7G4E6A266AB	Camshaft Assy, Intake, RH	$1,285.00	To Order

Photo	Part No	Description	Price (each)	Stock
	685321	Bolt, M6 x 40, Hex Hd	$7.54	To Order

Photo	Part No	Description	Price (each)	Stock
	785366	GASKET SPARK PLUG HOLE	$7.20	To Order

Photo	Part No	Description	Price (each)	Stock
	685914	Arm Assembly Valve Rocker	$31.08	To Order

Photo	Part No	Description	Price (each)	Stock
	685041	Key, Valve Spring	$16.14	To Order

Photo	Part No	Description	Price (each)	Stock
	685040	Retainer Valve Spring	$1.80	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120610062	Spring, Valve	$12.77	To Order

Photo	Part No	Description	Price (each)	Stock
	685038PK	Seal Valve Stem (Pack of 24)	$83.17	To Order

Photo	Part No	Description	Price (each)	Stock
	685042	Adjuster Valve Lash	$34.43	To Order

Photo	Part No	Description	Price (each)	Stock
	685037	Valve, Exhaust	$53.02	To Order

Photo	Part No	Description	Price (each)	Stock
	685034	INSERT-V/SEAT EXH	$3.55	To Order
	685035	Bushing, Valve Guide	$4.08	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430610577	Valve, Inlet	$125.64	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430610177	Insert, Valve Seat, Intake	$2.25	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	1R120310483	Chain, Timing	1R120310483 Chain, Timing	$114.09	2
2	4G430310013	Arm Assembly, Timing Chain Tensioner	4G430310013 Arm Assembly, Timing Chain Tensioner	$58.53	2
3	1R120310069	Guide, Timing Chain, RH	1R120310069 Guide, Timing Chain, RH	$75.01	1
4	702851	BOLT & WASHER M8 X 32 HEX FLANGE	702851 BOLT & WASHER M8 X 32 HEX FLANGE	$5.21	2
5	1R120310070	Guide, Timing Chain, LH	1R120310070 Guide, Timing Chain, LH	$75.01	1
6	703694	BOLT & WASHER M8x45 HF PIL 8	703694 BOLT & WASHER M8x45 HF PIL 8	$6.04	6
7	1R120310071	Tensioner - Timing Chain	1R120310071 Tensioner - Timing Chain	$285.69	2
8	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	4G430210012 CRANKSHAFT SPROCKET-DOUBLE - 21T	$68.28	1
9	1R120710720	SENSOR RING-IGNITION	1R120710720 SENSOR RING-IGNITION	$50.58	1
10	7G4E6A267AB	Camshaft Assy, Intake, LH	7G4E6A267AB Camshaft Assy, Intake, LH	$1,284.71	1
11	7G4E6A269AB	Camshaft Assy, Exhaust, LH	7G4E6A269AB Camshaft Assy, Exhaust, LH	$1,267.45	1
11	7G4E6A268AB	Camshaft Assy, Exhaust, RH	7G4E6A268AB Camshaft Assy, Exhaust, RH	$1,267.45	1
11	7G4E6A266AB	Camshaft Assy, Intake, RH	7G4E6A266AB Camshaft Assy, Intake, RH	$1,285.00	1
12	685321	Bolt, M6 x 40, Hex Hd	685321 Bolt, M6 x 40, Hex Hd	$7.54	56
13	785366	GASKET SPARK PLUG HOLE	785366 GASKET SPARK PLUG HOLE	$7.20	12
14	685914	Arm Assembly Valve Rocker	685914 Arm Assembly Valve Rocker	$31.08	48
15	685041	Key, Valve Spring	685041 Key, Valve Spring	$16.14	96
16	685040	Retainer Valve Spring	685040 Retainer Valve Spring	$1.80	48
17	1R120610062	Spring, Valve	1R120610062 Spring, Valve	$12.77	48
18	685038PK	Seal Valve Stem (Pack of 24)	685038PK Seal Valve Stem (Pack of 24)	$83.17	48
19	685042	Adjuster Valve Lash	685042 Adjuster Valve Lash	$34.43	48
20	685037	Valve, Exhaust	685037 Valve, Exhaust	$53.02	24
21	685034	INSERT-V/SEAT EXH	685034 INSERT-V/SEAT EXH	$3.55	24
21	685035	Bushing, Valve Guide	685035 Bushing, Valve Guide	$4.08	48
22	4G430610577	Valve, Inlet	4G430610577 Valve, Inlet	$125.64	24
23	6G430610177	Insert, Valve Seat, Intake	6G430610177 Insert, Valve Seat, Intake	$2.25	24
