Engine Cooling (Engine Fit) of Aston Martin Aston Martin Rapide

View All

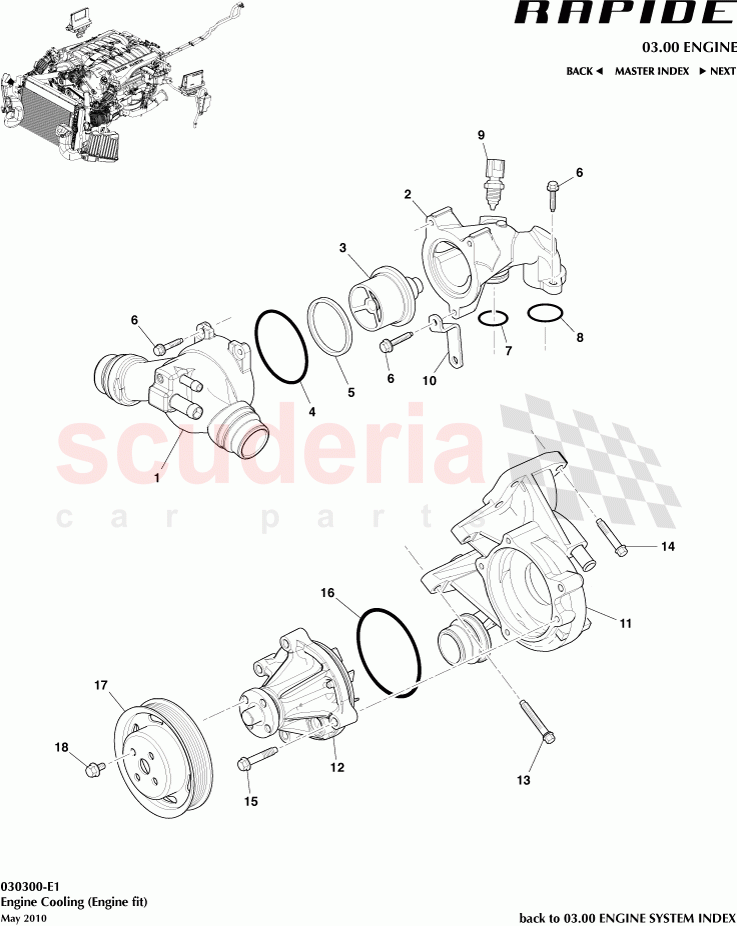

Aston Martin Rapide - Engine Cooling (Engine Fit)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G439K478AA	Housing assy, thermostat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G438594AA	Connection, Water Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4E8575AB	Thermostat	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3285114	O Ring - Seal Housing	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3285116	Seal Thermostat	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702855	BOLT &WASHER-M6x30 HEX FLG PIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3285112	O Ring - Water Outlet	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3285113	O RING SEAL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G433910080	Sensor, Engine Coolant Temperature	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7G438A588AA	Bracket, Engine Thermostat Connector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G438A513BA	Cover, water pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430510957	WATER PUMP (NOSE CONE ASSEMBLY)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702842	Bolt, M8 x 1.25 x 41, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697741	BOLT-M8 x 49.3 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703194	BOLT M8x45 HEX FLNG CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123210531	WATER PUMP PRESS IN SEAL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	585104	Pulley, Water Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702843	Screw and Washer, M8 x 1.25 x 19, Hex Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8G438A586AC	Housing & Connection Assy, Engine Thermostat	8G438A586AC Housing & Connection Assy, Engine Thermostat	-	1	Enquire
1	8G439K478AA	Housing assy, thermostat	8G439K478AA Housing assy, thermostat pt of 8G43-8A586-AA	-	1	Enquire
2	7G438594AA	Connection, Water Outlet	7G438594AA Connection, Water Outlet pt of 8G43-8A586-AA	-	1	Enquire
3	4G4E8575AB	Thermostat IN STOCK	4G4E8575AB Thermostat pt of 8G43-8A586-AA IN STOCK	-	1	Enquire
4	3285114	O Ring - Seal Housing IN STOCK	3285114 O Ring - Seal Housing IN STOCK	-	1	Enquire
5	3285116	Seal Thermostat IN STOCK	3285116 Seal Thermostat IN STOCK	-	1	Enquire
6	702855	BOLT &WASHER-M6x30 HEX FLG PIL	702855 BOLT &WASHER-M6x30 HEX FLG PIL	-	5	Enquire
7	3285112	O Ring - Water Outlet IN STOCK	3285112 O Ring - Water Outlet IN STOCK	-	1	Enquire
8	3285113	O RING SEAL IN STOCK	3285113 O RING SEAL IN STOCK	-	1	Enquire
9	6G433910080	Sensor, Engine Coolant Temperature IN STOCK	6G433910080 Sensor, Engine Coolant Temperature IN STOCK	-	1	Enquire
10	7G438A588AA	Bracket, Engine Thermostat Connector	7G438A588AA Bracket, Engine Thermostat Connector	-	1	Enquire
11	8G438A513BA	Cover, water pump	8G438A513BA Cover, water pump	-	1	Enquire
12	4G430510957	WATER PUMP (NOSE CONE ASSEMBLY) IN STOCK	4G430510957 WATER PUMP (NOSE CONE ASSEMBLY) IN STOCK	-	1	Enquire
13	702842	Bolt, M8 x 1.25 x 41, Hex Flange Head	702842 Bolt, M8 x 1.25 x 41, Hex Flange Head	-	3	Enquire
14	697741	BOLT-M8 x 49.3 FLG	697741 BOLT-M8 x 49.3 FLG	-	3	Enquire
15	703194	BOLT M8x45 HEX FLNG CHROME FREE	703194 BOLT M8x45 HEX FLNG CHROME FREE	-	4	Enquire
16	1R123210531	WATER PUMP PRESS IN SEAL IN STOCK	1R123210531 WATER PUMP PRESS IN SEAL IN STOCK	-	1	Enquire
17	585104	Pulley, Water Pump	585104 Pulley, Water Pump	-	1	Enquire
18	702843	Screw and Washer, M8 x 1.25 x 19, Hex Head	702843 Screw and Washer, M8 x 1.25 x 19, Hex Head	-	4	Enquire
