Aston Martin Rapide - Engine Lubrication

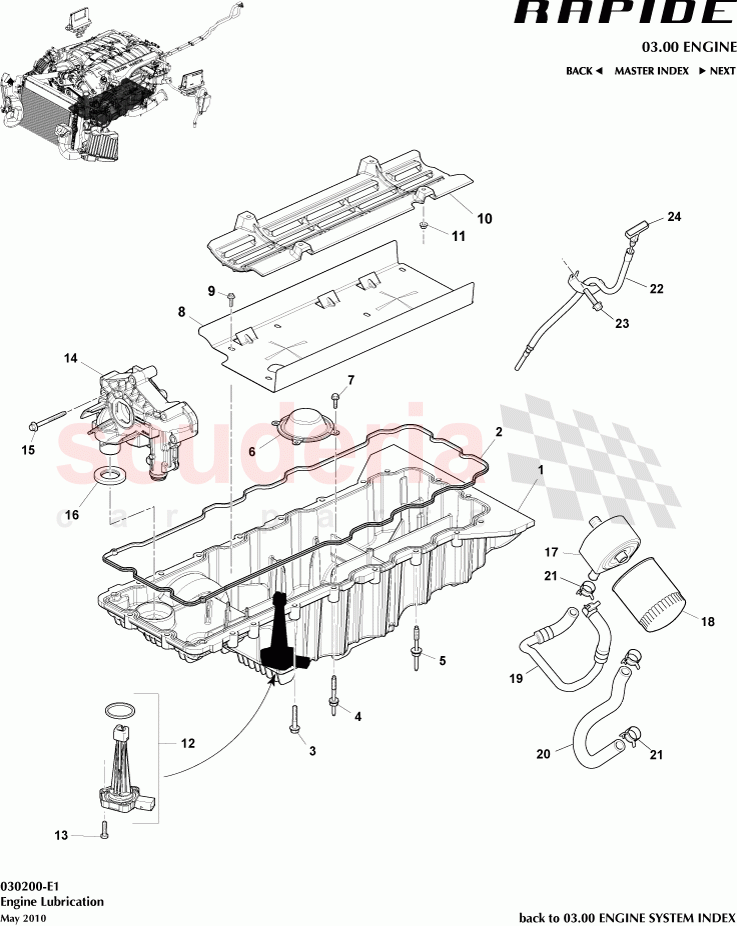

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D336675DA	OIL PAN ASSEMBLY	Enquire	To Order
	4G430410205	Plug, Oil Pan Drain	Enquire	IN STOCK
	8D336676DA	Oil Pan	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	485092	Engine Sump Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702605	BOLT M8 x 45 HEX FLANGE 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702604	STUD & WASHER M6 x 20 + M8 x 47.5 HF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702604	STUD & WASHER M6 x 20 + M8 x 47.5 HF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4E6622BA	SCREEN & COVER - SUMP OIL PICK UP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	69111	Bolt M6x18.5 hex flg hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D336686AD	Baffle Plate, Oil Pan	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702601	BOLT-M6-1.0 X 16 HEX FLG PT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4E6B660BA	WINDAGE TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430410972	Sensor Engine Low Oil Level	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G430411112	Service Assy - Oil Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702552	BOLT M8 X 70 HF PIL 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410196	Seal, Oil Pump Pickup Tube to Pan	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434410007	INSERT-OIL CLR BOLT	Enquire	IN STOCK
	8G436A642BB	COOLER ASSEMBLY - ENGINE OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG436714AA	Oil Filter	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4E6N867BB	TUB & HOS ASY-ENG OIL COOL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4E8B451BA	HOSE ASSY - ENGINE OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702858	HOSE CLAMP 23.9-27.1	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4E6754AD	TUBE ASSEMBLY - OIL LEVEL ASSEMBLY	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701745	Bolt, M8 x 30, Hex Flg Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D336750CA	OIL LEVEL INDICATOR ASSEMBLY	Enquire	IN STOCK
