Coolant Hoses of Aston Martin Aston Martin Rapide

View All

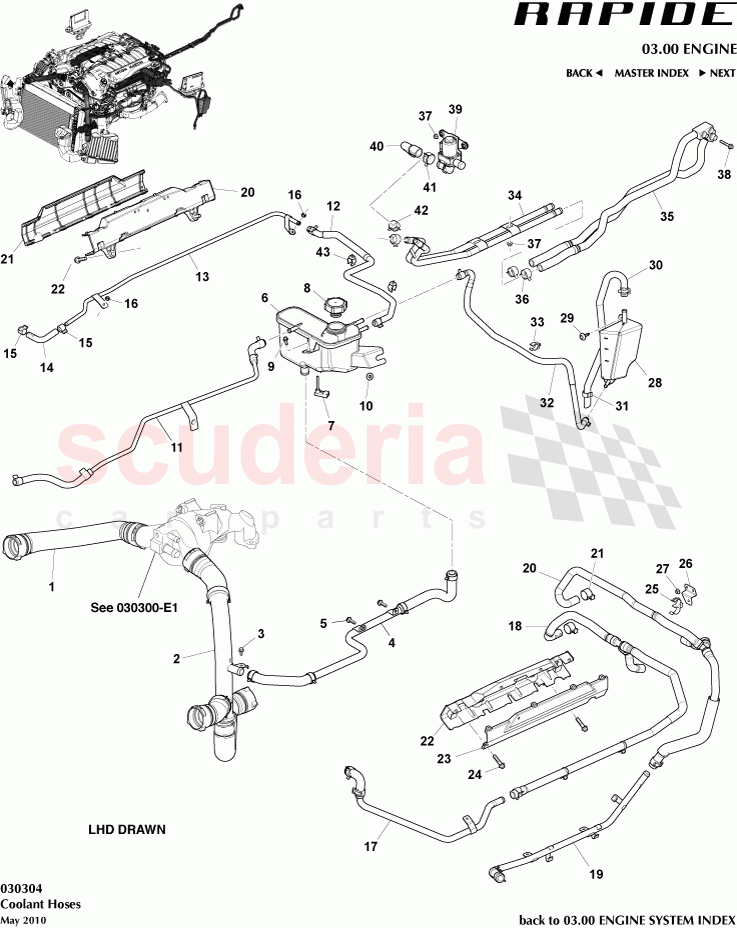

Aston Martin Rapide - Coolant Hoses

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D338333AA	HOSE RADIATOR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D338555AB	TUBE WATER BYPASS	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438C350GB	HOS-ENG COOL RSVR A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4319B518BD	RADIATOR EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710166	Switch, Coolant Level	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438101BB	PRESSURE CAP 150KPA	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438C363FC	HOSE RAD DEGAS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438063AE	Hose, Engine to Supply Tank	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438003EB	Pipe, Cross Over Bleed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702904	Spring Clamp, Hose, 17 x 15	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438584EB	HOSE ASY THERMO UPR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4318D334AA	HOS-HTR INLT ASSY LH	Enquire	To Order
	AD4318D334BA	HOS-HTR INLT ASSY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4318D359AA	HOS-HTR OLET ASSY LH	Enquire	To Order
	AD4318D359BA	HOS-HTR OLET ASSY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701335	Clip, Hose Spring, 20 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434867BA	Cover assy, bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436793BB	Top Cover, Engine Harness	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	700229	Bolt, M8 x 35, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4358AA	HOSE CLIP SPACER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432A155AA	BRACKET - HOSE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701345	NUT M6 HEX FLG MTL 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33TBD2BA	Reservoir, Coolant Expansion	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703734	Bolt and Washer M6x25 hex hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438N029AG	Hose Assy, Overflow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4355AA	DOUBLE C CLIP 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD438B081AA	HOSE RADIATOR SUPPLY TANK OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701181	Clip, 16 x 6.5 x 1.5-6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD4318D359EA	HTR PIPE OLET INLET ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4318D359DA	HTR PIPE OLET INLET ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702901	HEAVY DUTY SPRING BAND CLAMP 23 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703198	Bolt, M6 x 40, Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD4318495AA	Valve assy, Water Heater Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4318D359FA	Hose, Heater Outlet, LHD	Enquire	To Order
	AD4318D359CA	HOSE HEATER OUTLET ASSY RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701172	Clip, 16 x 2.8 - 3.3	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D338333AA	HOSE RADIATOR IN STOCK	8D338333AA HOSE RADIATOR IN STOCK	-	1	Enquire
2	8D338555AB	TUBE WATER BYPASS IN STOCK	8D338555AB TUBE WATER BYPASS IN STOCK	-	1	Enquire
3	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD IN STOCK	-	1	Enquire
4	4G438C350GB	HOS-ENG COOL RSVR A	4G438C350GB HOS-ENG COOL RSVR A	-	1	Enquire
5	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD Hose, engine cool reservoir IN STOCK	-	2	Enquire
6	4G4319B518BD	RADIATOR EXPANSION TANK	4G4319B518BD RADIATOR EXPANSION TANK	-	1	Enquire
7	1R123710166	Switch, Coolant Level IN STOCK	1R123710166 Switch, Coolant Level IN STOCK	-	1	Enquire
8	4G438101BB	PRESSURE CAP 150KPA IN STOCK	4G438101BB PRESSURE CAP 150KPA IN STOCK	-	1	Enquire
9	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD Tank assy, expansion IN STOCK	-	1	Enquire
10	703612	Nut & Washer, M6, HVAC to XCB IN STOCK	703612 Nut & Washer, M6, HVAC to XCB IN STOCK	-	1	Enquire
11	4G438C363FC	HOSE RAD DEGAS	4G438C363FC HOSE RAD DEGAS	-	1	Enquire
12	4G438063AE	Hose, Engine to Supply Tank IN STOCK	4G438063AE Hose, Engine to Supply Tank IN STOCK	-	1	Enquire
13	4G438003EB	Pipe, Cross Over Bleed	4G438003EB Pipe, Cross Over Bleed	-	1	Enquire
14	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	4G438003CA Hose, Thermo Housing, Cross Over Bleed	-	1	Enquire
15	702904	Spring Clamp, Hose, 17 x 15 IN STOCK	702904 Spring Clamp, Hose, 17 x 15 IN STOCK	-	2	Enquire
16	702295	Nut, M5, Hex Flange Head IN STOCK	702295 Nut, M5, Hex Flange Head Crossover Bleed Pipe IN STOCK	-	2	Enquire
17	4G438584EB	HOSE ASY THERMO UPR	4G438584EB HOSE ASY THERMO UPR	-	1	Enquire
18	AD4318D334AA	HOS-HTR INLT ASSY LH	AD4318D334AA HOS-HTR INLT ASSY LH LHD	-	1	Enquire
18	AD4318D334BA	HOS-HTR INLT ASSY RH	AD4318D334BA HOS-HTR INLT ASSY RH RHD	-	1	Enquire
20	AD4318D359AA	HOS-HTR OLET ASSY LH	AD4318D359AA HOS-HTR OLET ASSY LH LHD	-	1	Enquire
20	AD4318D359BA	HOS-HTR OLET ASSY RH	AD4318D359BA HOS-HTR OLET ASSY RH RHD	-	1	Enquire
21	701335	Clip, Hose Spring, 20 x 15	701335 Clip, Hose Spring, 20 x 15	-	2	Enquire
22	4G434867BA	Cover assy, bottom	4G434867BA Cover assy, bottom	-	2	Enquire
23	4G436793BB	Top Cover, Engine Harness IN STOCK	4G436793BB Top Cover, Engine Harness IN STOCK	-	2	Enquire
24	700229	Bolt, M8 x 35, Hex Flange Head	700229 Bolt, M8 x 35, Hex Flange Head	-	4	Enquire
25	4G4358AA	HOSE CLIP SPACER PLATE	4G4358AA HOSE CLIP SPACER PLATE	-	1	Enquire
26	AD432A155AA	BRACKET - HOSE CLIP	AD432A155AA BRACKET - HOSE CLIP	-	1	Enquire
27	701345	NUT M6 HEX FLG MTL 8	701345 NUT M6 HEX FLG MTL 8	-	2	Enquire
28	6G33TBD2BA	Reservoir, Coolant Expansion IN STOCK	6G33TBD2BA Reservoir, Coolant Expansion IN STOCK	-	1	Enquire
29	703734	Bolt and Washer M6x25 hex hd	703734 Bolt and Washer M6x25 hex hd Overflow tank	-	3	Enquire
30	4G438N029AG	Hose Assy, Overflow	4G438N029AG Hose Assy, Overflow	-	1	Enquire
31	AD4355AA	DOUBLE C CLIP 18	AD4355AA DOUBLE C CLIP 18	-	1	Enquire
32	AD438B081AA	HOSE RADIATOR SUPPLY TANK OVERFLOW	AD438B081AA HOSE RADIATOR SUPPLY TANK OVERFLOW	-	1	Enquire
33	701181	Clip, 16 x 6.5 x 1.5-6 IN STOCK	701181 Clip, 16 x 6.5 x 1.5-6 IN STOCK	-	1	Enquire
34	AD4318D359EA	HTR PIPE OLET INLET ASSY	AD4318D359EA HTR PIPE OLET INLET ASSY	-	1	Enquire
35	AD4318D359DA	HTR PIPE OLET INLET ASSY	AD4318D359DA HTR PIPE OLET INLET ASSY	-	1	Enquire
36	702901	HEAVY DUTY SPRING BAND CLAMP 23 x 15	702901 HEAVY DUTY SPRING BAND CLAMP 23 x 15 Rear Heater Pipe assy	-	2	Enquire
37	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head Rear Heater Pipe assy IN STOCK	-	2	Enquire
38	703198	Bolt, M6 x 40, Chrome Free IN STOCK	703198 Bolt, M6 x 40, Chrome Free Rear Heater Pipe assy IN STOCK	-	1	Enquire
39	AD4318495AA	Valve assy, Water Heater Control	AD4318495AA Valve assy, Water Heater Control	-	1	Enquire
40	AD4318D359FA	Hose, Heater Outlet, LHD	AD4318D359FA Hose, Heater Outlet, LHD LHD	-	1	Enquire
40	AD4318D359CA	HOSE HEATER OUTLET ASSY RHD	AD4318D359CA HOSE HEATER OUTLET ASSY RHD RHD	-	1	Enquire
43	701172	Clip, 16 x 2.8 - 3.3 IN STOCK	701172 Clip, 16 x 2.8 - 3.3 IN STOCK	-	2	Enquire
