Air Cleaner and Emissions of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Air Cleaner and Emissions

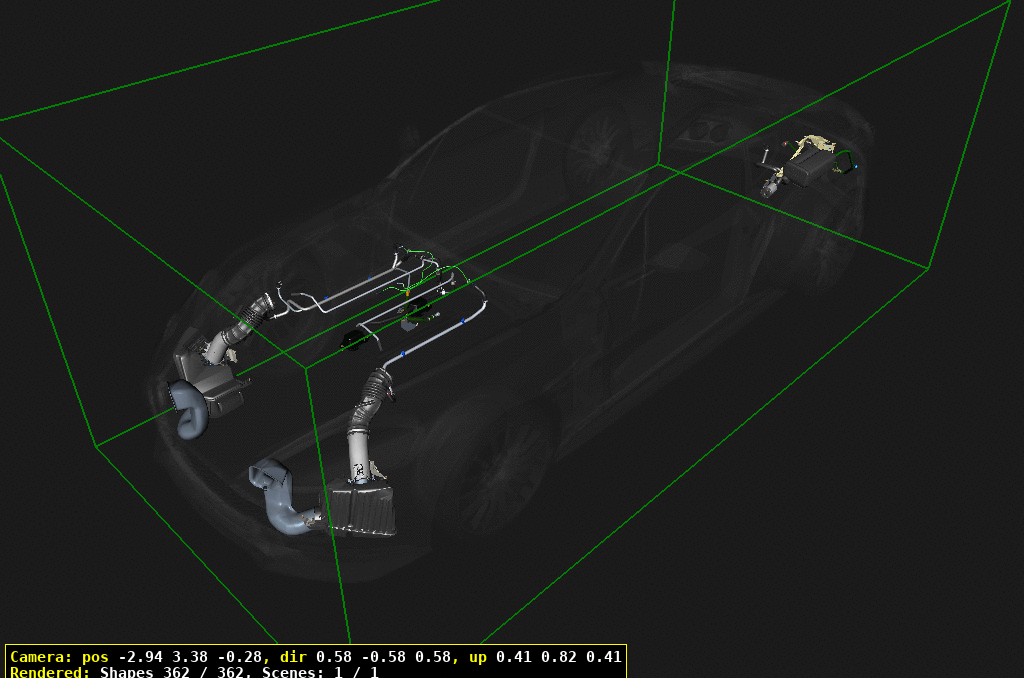

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	4G439600CD	Air Filter Box LH ARRIVING SOON	4G439600CD Air Filter Box LH ARRIVING SOON	-	1	Enquire
30	4G439600BD	Airbox RH	4G439600BD Airbox RH	-	1	Enquire
40	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	4	Enquire
50	4G439B609AC	BRACKET - AIR CLEANER OUTER	4G439B609AC BRACKET - AIR CLEANER OUTER	-	2	Enquire
60	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	4	Enquire
70	4G430410AA	Screw - 5.2x32 Self Tap	4G430410AA Screw - 5.2x32 Self Tap	-	2	Enquire
100	CD339B609FA	Bracket, Air Cleaner Outer	CD339B609FA Bracket, Air Cleaner Outer	-	2	Enquire
110	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged	-	4	Enquire
120	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
140	4G439601ABPK	Air Filter (Pack of 2)	4G439601ABPK Air Filter (Pack of 2) Pack of 2	-	1	Enquire
150	4G430410AA	Screw - 5.2x32 Self Tap	4G430410AA Screw - 5.2x32 Self Tap	-	14	Enquire
160	ED2312B612AA	BDY-ENG ELECTR MS AI	ED2312B612AA BDY-ENG ELECTR MS AI	-	2	Enquire
170	4G436C704BA	O-Ring Engine Duct Interior ARRIVING SOON	4G436C704BA O-Ring Engine Duct Interior ARRIVING SOON	-	2	Enquire
200	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Pack of 20	-	2	Enquire
230	4G436C704AA	O Ring - Engine Duct	4G436C704AA O Ring - Engine Duct	-	2	Enquire
250	ED2312B579AA	SNS ASSY ENG	ED2312B579AA SNS ASSY ENG	-	2	Enquire
260	CD339C623BB	Duct Assy, Air Cleaner to Engine RH	CD339C623BB Duct Assy, Air Cleaner to Engine RH	-	1	Enquire
270	CD339C623AB	Duct Assy, Air Cleaner to Engine LH	CD339C623AB Duct Assy, Air Cleaner to Engine LH	-	1	Enquire
280	4G439N832BB	HOSE CLAMP DUCT TO AIRBOX	4G439N832BB HOSE CLAMP DUCT TO AIRBOX	-	4	Enquire
320	22AA637GP	ASSY GLASS RR QTR RH GT	22AA637GP ASSY GLASS RR QTR RH GT	-	1	Enquire
330	22AA884GP	ASSY GLASS - REAR PILLAR LH - LH	22AA884GP ASSY GLASS - REAR PILLAR LH - LH Includes items 340	-	1	Enquire
340	3485327	PCV Valve	3485327 PCV Valve	-	2	Enquire
350	22AA583GP	REAR PILLAR GLASS LH	22AA583GP REAR PILLAR GLASS LH	-	1	Enquire
380	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8	-	4	Enquire
390	1R120110487	Gasket, Oil Separator to Cylinder Block	1R120110487 Gasket, Oil Separator to Cylinder Block	-	2	Enquire
400	ED239D289AB	TUB ASY-FU/VPR TO EN	ED239D289AB TUB ASY-FU/VPR TO EN	-	1	Enquire
420	ED239B051AD	TUB-FU/VPR VLV INLT	ED239B051AD TUB-FU/VPR VLV INLT	-	1	Enquire
440	3280356	GROMMET	3280356 GROMMET	-	2	Enquire
450	700119	SPACER	700119 SPACER	-	2	Enquire
460	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE	703145 M6 x 30 WSHR HO BOLT ASSY CHROME FREE	-	2	Enquire
470	22AB064GP	SEAL LH	22AB064GP SEAL LH RH	-	1	Enquire
480	22AA885GP	ASSY GLASS - REAR PILLAR LH - RH	22AA885GP ASSY GLASS - REAR PILLAR LH - RH LH	-	1	Enquire
490	4G433710113	Clip, Tie Wrap	4G433710113 Clip, Tie Wrap	-	2	Enquire
500	8D339D665BA	BRACKET ASSEMBLY FILTER (NON FEDERAL)	8D339D665BA BRACKET ASSEMBLY FILTER (NON FEDERAL) RoW. Includes items520-540	-	1	Enquire
510	8D339D665AB	BRACKET ASSEMBLY DMTL & FILTER	8D339D665AB BRACKET ASSEMBLY DMTL & FILTER Federal. Includes items520-570	-	1	Enquire
520	4G439B995AA	Filter, Fuel/Vapour Storage Canister	4G439B995AA Filter, Fuel/Vapour Storage Canister	-	1	Enquire
530	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	1	Enquire
540	8D339C177AB	Bracket, Fuel Tank Vent Valve	8D339C177AB Bracket, Fuel Tank Vent Valve	-	1	Enquire
560	6H529C111BA	PMP ON BD DGNTL LEK	6H529C111BA PMP ON BD DGNTL LEK Federal	-	1	Enquire
570	W506961S437	Screw, M5 x 10, Pan Head	W506961S437 Screw, M5 x 10, Pan Head Federal	-	3	Enquire
580	6G430310043	CLIP HOSE-SPRING	6G430310043 CLIP HOSE-SPRING RoW	-	1	Enquire
590	BG439F984BB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984BB Hose, Fuel/Vapour Canister Vent Inlet RoW	-	1	Enquire
600	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	3	Enquire
610	BG439F984AB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984AB Hose, Fuel/Vapour Canister Vent Inlet Federal	-	1	Enquire
700	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged	-	2	Enquire
710	22AA584GP	REAR PILLAR GLASS RH	22AA584GP REAR PILLAR GLASS RH	-	1	Enquire
720	AD439E857BA	CAN & BRKT NON FED	AD439E857BA CAN & BRKT NON FED RoW. Includes items 520,730-750	-	1	Enquire
721	AD439E857AB	FUEL CARBON CANNISTE BRACKET ASSY FEDERAL	AD439E857AB FUEL CARBON CANNISTE BRACKET ASSY FEDERAL Federal. Includes items520, 560, 740-770	-	1	Enquire
730	22AB065GP	SEAL RH	22AB065GP SEAL RH RoW	-	1	Enquire
740	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
750	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE	703145 M6 x 30 WSHR HO BOLT ASSY CHROME FREE	-	1	Enquire
760	00RA028	Bolt - M8x25 - 10.9 - Hex	00RA028 Bolt - M8x25 - 10.9 - Hex Federal	-	1	Enquire
770	707121	SCREW-M5 x 12 T/FORM	707121 SCREW-M5 x 12 T/FORM Federal	-	3	Enquire
