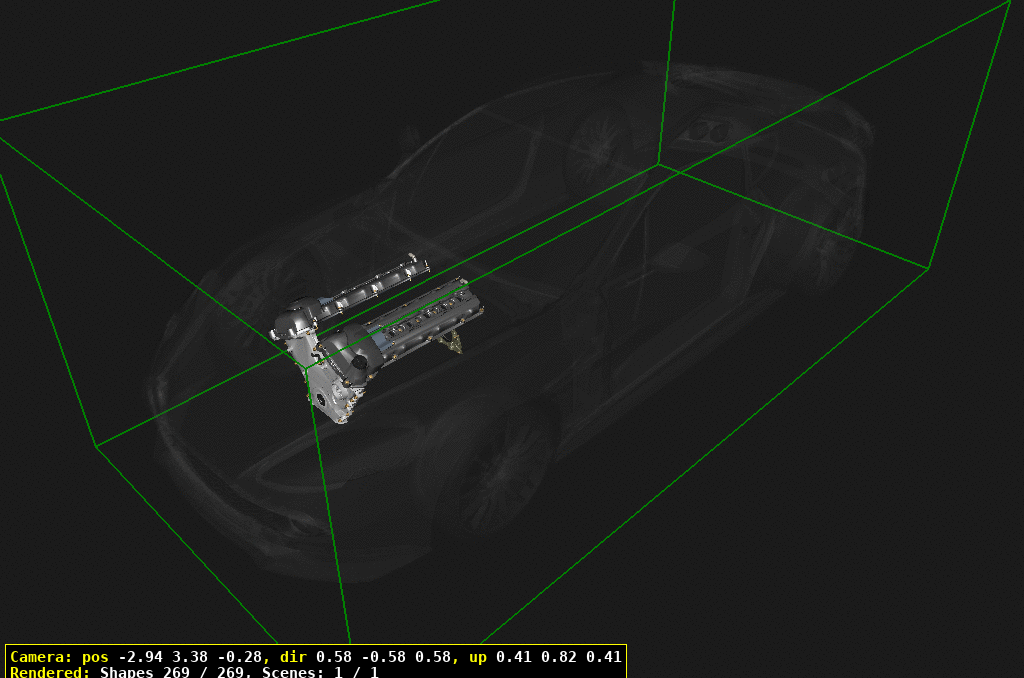

Engine Covers of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Engine Covers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	CD333296AA	Female Bollhoff Fixing	CD333296AA Female Bollhoff Fixing	-	6	Enquire
30	CD3313C026AA	Cover, Oil Control Valve Solenoid	CD3313C026AA Cover, Oil Control Valve Solenoid	-	2	Enquire
40	702853	BOLT-M8 x 47.5 W/WSH	702853 BOLT-M8 x 47.5 W/WSH	-	14	Enquire
50	CD336766AA	Oil Filler Cap	CD336766AA Oil Filler Cap	-	1	Enquire
60	8G436D080DA	COVER ENGINE FRONT	8G436D080DA COVER ENGINE FRONT	-	1	Enquire
70	7G438A588AA	Bracket, Engine Thermostat Connector	7G438A588AA Bracket, Engine Thermostat Connector	-	1	Enquire
80	385067	Oil Seal - Crankshaft Front	385067 Oil Seal - Crankshaft Front	-	1	Enquire
90	385064	Gasket Engine Front Cover LH	385064 Gasket Engine Front Cover LH	-	1	Enquire
100	ED236A505AA	CAM COVER LH	ED236A505AA CAM COVER LH Includes item 110	-	1	Enquire
110	CD3338565AA	Gasket Kit	CD3338565AA Gasket Kit	-	2	Enquire
120	13AA220GP	WINDSCREEN - GT - LHD	13AA220GP WINDSCREEN - GT - LHD Part of item 100 & 160	-	5	Enquire
130	13AA222GP	WINDSCREEN - GT - RHD	13AA222GP WINDSCREEN - GT - RHD Part of item 100 & 160	-	29	Enquire
140	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Part of item 100 & 160	-	4	Enquire
150	55027316	SUITCASE BDGE F167	55027316 SUITCASE BDGE F167 Part of item 100 & 160	-	4	Enquire
160	ED236582AA	CAM COVER RH	ED236582AA CAM COVER RH Includes item 110	-	1	Enquire
170	703168	NUT M6 HF PTM 8	703168 NUT M6 HF PTM 8	-	4	Enquire
180	CD335867827AA	Snaploc Screw	CD335867827AA Snaploc Screw	-	6	Enquire
190	385065	Gasket Front Cover Centre ARRIVING SOON	385065 Gasket Front Cover Centre ARRIVING SOON	-	1	Enquire
200	385066	Gasket Engine Front Cover RH ARRIVING SOON	385066 Gasket Engine Front Cover RH ARRIVING SOON	-	1	Enquire
210	702851	BOLT & WASHER M8 X 32 HEX FLANGE	702851 BOLT & WASHER M8 X 32 HEX FLANGE	-	1	Enquire
220	1R120110434	Seal Crankshaft Rear	1R120110434 Seal Crankshaft Rear	-	1	Enquire
230	4G430110194	Slinger, Rear Seal	4G430110194 Slinger, Rear Seal	-	1	Enquire
240	702603	SCREW M6X22 HEX FLNG	702603 SCREW M6X22 HEX FLNG	-	6	Enquire
250	185003	Retainer, Crankshaft Oil Seal	185003 Retainer, Crankshaft Oil Seal	-	1	Enquire
260	CD336P068AB	Coil Cover, Spark Plug	CD336P068AB Coil Cover, Spark Plug -> 17MY	-	2	Enquire
270	706471	SCREW-5 x 16 PN TI R	706471 SCREW-5 x 16 PN TI R -> 17MY	-	8	Enquire
280	CD3395487AB	VENT PIPE	CD3395487AB VENT PIPE	-	2	Enquire
