Aston Martin GT VANQUISH ZAGATO (2016-2019) - Electrical and Sensors

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

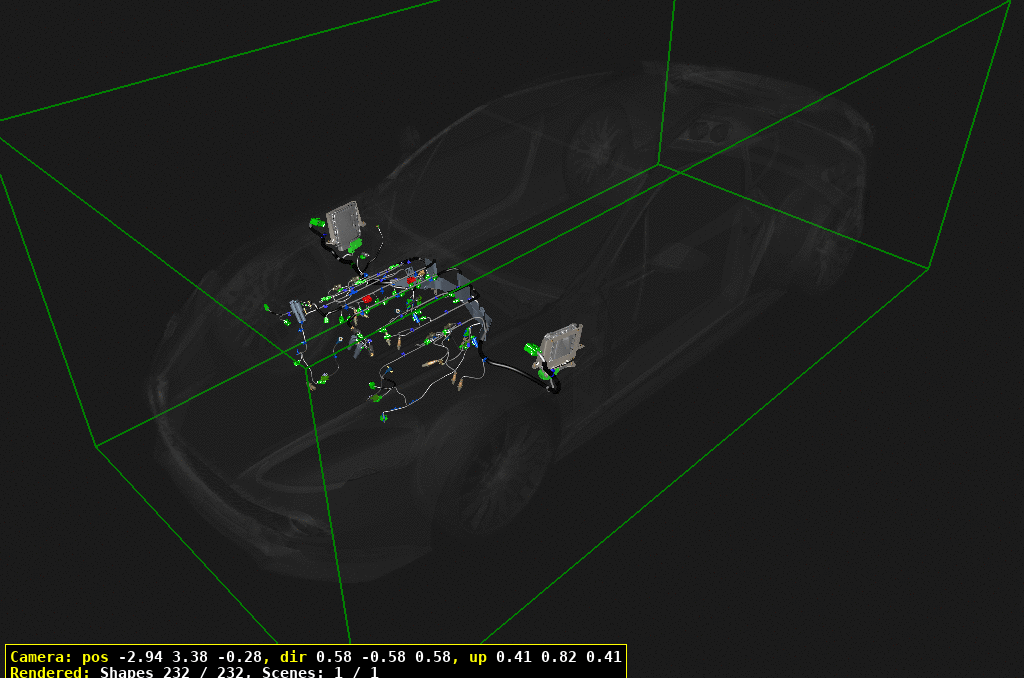

Electrical and Sensors of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
20 FD3312B695AC
BOSCH ECU BRKT 		- 1 Enquire
30 ED2312A650AA
BOSCH ENG MAN MOD 		- 2 Enquire
40 FD3312B695AB
BOSCH ECU BRKT 		- 1 Enquire
50 703151
Screw M6x16 Washer Hex HD Chrome Free 		- 6 Enquire
60 00RA302
SCREW - M8X20 - HEX 		- 8 Enquire
70 ED2312B637AG
HARNESS ENGINE 		- 1 Enquire
80 4G4314W163DA
BRACKET WIRING HARNESS MOUNTING RH 		- 1 Enquire
90 4G4314W163EA
BRACKET WIRING HARNESS MOUNTING LH 		- 1 Enquire
100 703665
TIE CLIP 		- 19 Enquire
110 702840
Nut & Washer, M6, Hex Flange Head 		- 1 Enquire
210 685664
ADAPTOR-O/PRESS SWTC 		- 1 Enquire
220 CM5E6B297CC
VCT SOLENOID 		- 4 Enquire
230 00RA002
BOLT - M8X20 - HEX 		- 1 Enquire
240 702844
BOLT-M8 x 30 HF 8 		- 4 Enquire
250 CD3312A699BA
Sensor Assy, Engine Knock 		- 2 Enquire
260 CD3312A699AA
Sensor Assy, Engine Knock 		- 2 Enquire
270 1R123910475
Sensor, Crankshaft, Front
When fitted 		- 1 Enquire
280 ED236C315AA
SNS ASY CRKSHT TIM 		- 1 Enquire
290 ED2312K073BA
SNSR ASY CMSHFT TIMN 		- 4 Enquire
300 EG330810726
SENSOR-AIR TEMPERATURE 		- 1 Enquire
350 ED239F472AA
HEATED EXHAUST GAS OXYGEN SENSOR
Upstream
ARRIVING SOON 		- 4 Enquire
360 6C119G444AA
LAMBDA SENSOR
Downstream 		- 4 Enquire
370 ED23110005AA
Harness Retention Clip 		- 4 Enquire
