Aston Martin GT VANQUISH ZAGATO (2016-2019) - Sump and Lubrication

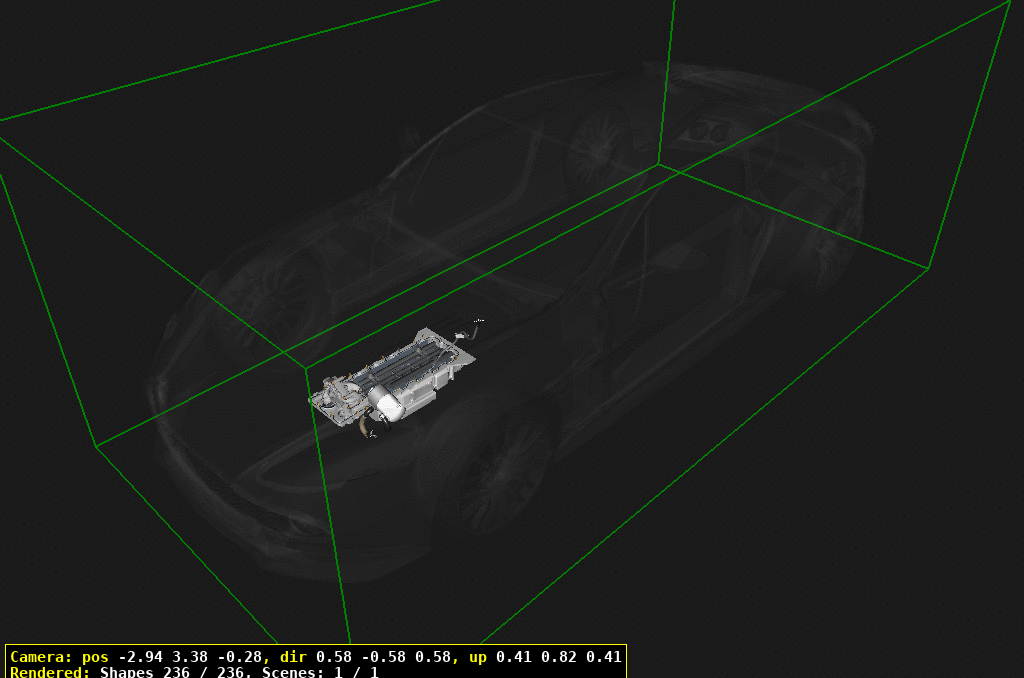

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	CD336754AB	Tube Assy, Oil Level Indicator	CD336754AB Tube Assy, Oil Level Indicator	-	1	Enquire
30	8D336750CA	OIL LEVEL INDICATOR ASSEMBLY	8D336750CA OIL LEVEL INDICATOR ASSEMBLY	-	1	Enquire
40	4G436K804AA	DEC ENG OIL LVL IND	4G436K804AA DEC ENG OIL LVL IND	-	1	Enquire
60	22AB171GP	LICENSE PLATE PLINTH EU-UK	22AB171GP LICENSE PLATE PLINTH EU-UK Includes items 70-110.See Service BulletinSB-03-0371	-	1	Enquire

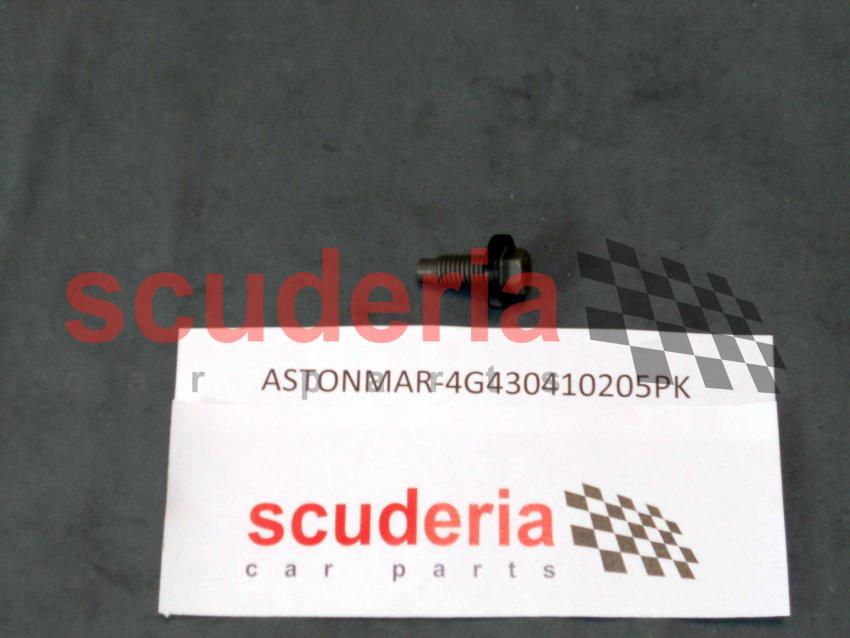

70	4G430410205PK	PLUG-OIL PAN DRAIN M12x1.75-6g THREAD (LONG) PACK OF 8	4G430410205PK PLUG-OIL PAN DRAIN M12x1.75-6g THREAD (LONG) PACK OF 8 Minimum order quantity of8	-	1	Enquire
80	4G430410972	Sensor Engine Low Oil Level	4G430410972 Sensor Engine Low Oil Level Includes item 90	-	1	Enquire
90	8W9387030BA	O Ring, Engine Low Oil Level Sensor	8W9387030BA O Ring, Engine Low Oil Level Sensor ALWAYS REPLACE. DO NOTRE-USE	-	1	Enquire
100	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	-	3	Enquire
110	CD3310630CAA	Bolt, M6 x 30	CD3310630CAA Bolt, M6 x 30	-	4	Enquire
120	705052	Screw, M6 x 14	705052 Screw, M6 x 14	-	7	Enquire
130	AD236686AA	Sump Baffle Plate	AD236686AA Sump Baffle Plate	-	1	Enquire
140	4G4E6A731AA	SEAL-OIL PMP PICK UP	4G4E6A731AA SEAL-OIL PMP PICK UP	-	1	Enquire
160	CD336A642AA	Oil Cooler, Engine	CD336A642AA Oil Cooler, Engine	-	1	Enquire
170	702604	STUD & WASHER M6 x 20 + M8 x 47.5 HF	702604 STUD & WASHER M6 x 20 + M8 x 47.5 HF	-	1	Enquire
180	706713	STUD M8 + M6 HF PIL	706713 STUD M8 + M6 HF PIL	-	1	Enquire
190	SY9Y10677AA	SD DR ELATCH CAB COV	SY9Y10677AA SD DR ELATCH CAB COV	-	9	Enquire
200	706714	BOLT - M8 x 140 HF8	706714 BOLT - M8 x 140 HF8	-	4	Enquire
210	706715	BOLT- M8 x 105 HF8	706715 BOLT- M8 x 105 HF8	-	5	Enquire
220	702552	BOLT M8 X 70 HF PIL 8	702552 BOLT M8 X 70 HF PIL 8	-	4	Enquire
230	AD236B660AC	WINDAGE TRAY	AD236B660AC WINDAGE TRAY	-	1	Enquire
240	8G430411112	Service Assy - Oil Pump ARRIVING SOON	8G430411112 Service Assy - Oil Pump ARRIVING SOON	-	1	Enquire
250	703168	NUT M6 HF PTM 8	703168 NUT M6 HF PTM 8	-	4	Enquire
260	22AC516GP	HEATSHIELD - REAR LH	22AC516GP HEATSHIELD - REAR LH	-	1	Enquire
270	CD338B451AC	Hose Assy, Oil Cooler Outlet	CD338B451AC Hose Assy, Oil Cooler Outlet	-	1	Enquire
290	CD336N867AA	Hose Assy, Oil Cooler Inlet	CD336N867AA Hose Assy, Oil Cooler Inlet	-	1	Enquire
