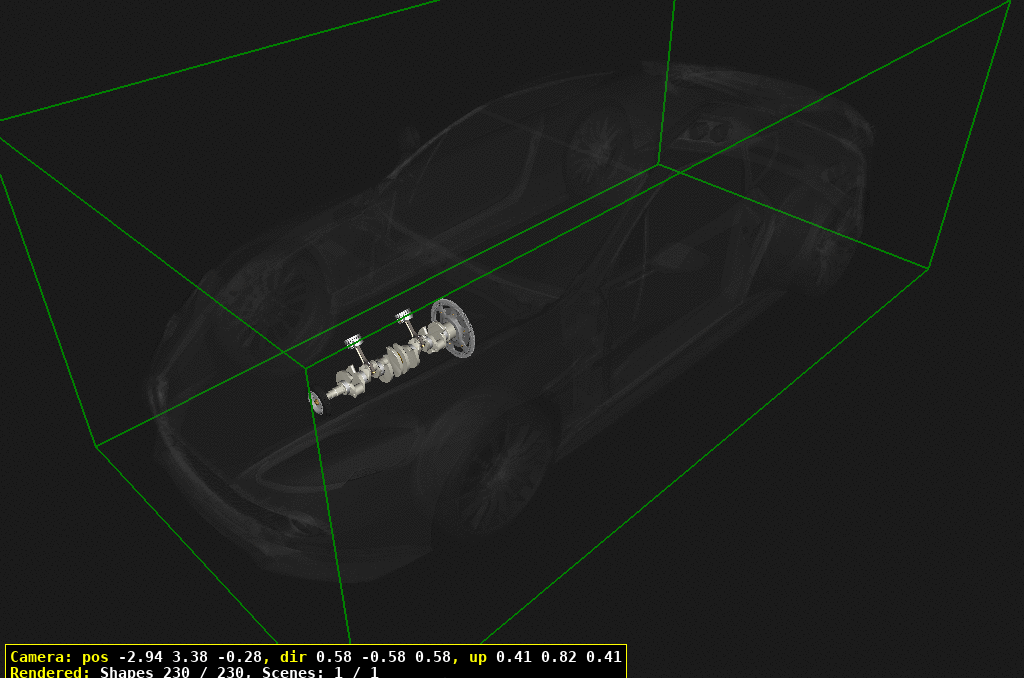

Crankshaft and Pistons of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Crankshaft and Pistons

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	1R120210061	Bearing Assembly Pilot ARRIVING SOON	1R120210061 Bearing Assembly Pilot ARRIVING SOON	-	1	Enquire
30	4G430210821	WASHER-13.5 x 39.5 x 7.35 FL STL	4G430210821 WASHER-13.5 x 39.5 x 7.35 FL STL	-	1	Enquire
40	4G430210822	BOLT-M12x48 HF PIL10 ARRIVING SOON	4G430210822 BOLT-M12x48 HF PIL10 ALWAYS REPLACE. DO NOTRE-USE ARRIVING SOON	-	1	Enquire
50	CD336316AA	Damper Assy, Crankshaft	CD336316AA Damper Assy, Crankshaft	-	1	Enquire
60	4R3E6A338AA	Bearing CrankShaft Main Thrust Lower	4R3E6A338AA Bearing CrankShaft Main Thrust Lower Grade 1	-	6	Enquire
61	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012)	4R3E6A338BA Bearing, Crankshaft, Main, Lower (.012) Grade 2	-	6	Enquire
62	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	4R3E6A338CA Bearing, Crankshaft, Main, Lower (.014) Grade 3	-	6	Enquire
70	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1	4R3E6333AA Bearing Crankshaft Main Upper Grade 1 Grade 1	-	7	Enquire
71	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2	4R3E6333BA Bearing Crankshaft Main Upper Grade 2 Grade 2	-	7	Enquire
72	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3	4R3E6333CA Bearing Crankshaft Main Upper Grade 3 Grade 3	-	7	Enquire
80	6E5E6211AB	Bearing, Connecting Rod	6E5E6211AB Bearing, Connecting Rod	-	24	Enquire
81	6E5E6211BB	BEARING CON ROD 0.25	6E5E6211BB BEARING CON ROD 0.25 0.25mm undersized	-	24	Enquire
90	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper	BR3E6A341BA Washer, Crankshaft Main Thrust Upper	-	2	Enquire
100	285008	Key, Crankshaft, 4.76 x 53.5	285008 Key, Crankshaft, 4.76 x 53.5	-	1	Enquire
110	4R3E6A339AA	Washer CrankShaft MN Thrust Lower	4R3E6A339AA Washer CrankShaft MN Thrust Lower Grade 1	-	1	Enquire
111	4R3E6A339BA	Washer Crankshaft Main Thrust Lower	4R3E6A339BA Washer Crankshaft Main Thrust Lower Grade 2	-	1	Enquire
112	4R3E6A339CA	BEARING CRANKSHAFT MN THRUST LOWER	4R3E6A339CA BEARING CRANKSHAFT MN THRUST LOWER Grade 3	-	1	Enquire
120	4G430210229	CrankShaft	4G430210229 CrankShaft Includes item 130	-	1	Enquire
140	CD336100AA	Piston & Connecting Rod Assy, Grade Size 1	CD336100AA Piston & Connecting Rod Assy, Grade Size 1 Grade 1	-	12	Enquire
160	ED236200AB	ROD ASY CONN	ED236200AB ROD ASY CONN	-	12	Enquire
170	4G430210968	BUSH - CONN ROD V12	4G430210968 BUSH - CONN ROD V12	-	12	Enquire
180	4G430210955	PIN-PISTON (SINGLE)	4G430210955 PIN-PISTON (SINGLE)	-	12	Enquire
190	1R120210448	Retainer, Piston Pin	1R120210448 Retainer, Piston Pin	-	24	Enquire
200	CD336K109AA	Piston and Ring Assy, Grade 1	CD336K109AA Piston and Ring Assy, Grade 1 Grade 1. Includes items210-240	-	12	Enquire
201	CD336K109BA	Piston and Ring Assy, Grade 2	CD336K109BA Piston and Ring Assy, Grade 2 Grade 2. Includes items210-240	-	12	Enquire
202	CD336K109CA	Piston and Ring Assy, Grade 3	CD336K109CA Piston and Ring Assy, Grade 3 Grade 3. Includes items210-240	-	12	Enquire
210	1R120210060	Piston Ring Compression Upper	1R120210060 Piston Ring Compression Upper	-	12	Enquire
220	285013	Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	285013 Piston Ring Compression Lower Orange/Yellow Ring Orange/Yellow Ring ARRIVING SOON	-	12	Enquire
230	285014	Segment, Piston Oil Control Ring	285014 Segment, Piston Oil Control Ring	-	24	Enquire
240	285015	Spacer, Piston Oil Control Segment	285015 Spacer, Piston Oil Control Segment	-	12	Enquire
300	FD33405073AA	AUTO FLYWHEEL ASY	FD33405073AA AUTO FLYWHEEL ASY	-	1	Enquire
310	HY536W366AD	DRIVELINE COUPLING	HY536W366AD DRIVELINE COUPLING RoW	-	1	Enquire
311	FD336W366AC	AUTO DLINE DAMPER	FD336W366AC AUTO DLINE DAMPER Federal	-	1	Enquire
320	700036S447	Bolt, M8 x 1.25 x 25, Hex Flg Hd	700036S447 Bolt, M8 x 1.25 x 25, Hex Flg Hd	-	6	Enquire
330	697786	BOLT M10 x 1 x 30	697786 BOLT M10 x 1 x 30	-	8	Enquire
340	22AC515GP	HEATSHIELD CENTRAL	22AC515GP HEATSHIELD CENTRAL	-	2	Enquire
