Engine Structure of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Engine Structure

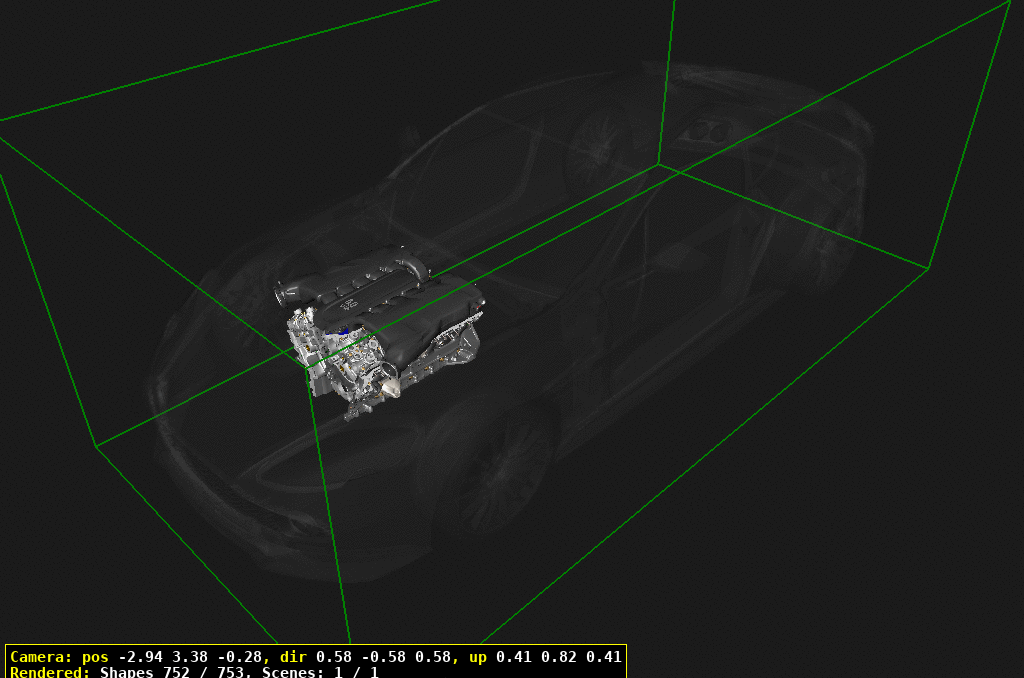

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	HD336007AA	AM27 ENGINE ASSY	HD336007AA AM27 ENGINE ASSY	-	1	Enquire
21	22AA403GP	GAS STRUT BONNET	22AA403GP GAS STRUT BONNET Engines are NOT suppliedwith Pilot Bearing.Please order separately	-	-	Enquire
30	22AB172GP	BUMPER BEAM BRACKET	22AB172GP BUMPER BEAM BRACKET With Valves, Adjusters,Springs & Camshafts	-	1	Enquire
32	ED236049AB	HEAD ASSY CYL RH	ED236049AB HEAD ASSY CYL RH Less Valves, Adjusters,Springs & Camshafts	-	1	Enquire
40	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head	-	24	Enquire
60	685321	Bolt, M6 x 40, Hex Hd	685321 Bolt, M6 x 40, Hex Hd	-	56	Enquire
70	685031	PLUG-3/8 x 14	685031 PLUG-3/8 x 14	-	2	Enquire
80	685032	PLUG-1 x 11.5	685032 PLUG-1 x 11.5	-	2	Enquire
90	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE	-	2	Enquire
100	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8	-	4	Enquire
110	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25	-	1	Enquire
120	22AB454GP	ASSY RR LICENSE PLATE PLINTH EU	22AB454GP ASSY RR LICENSE PLATE PLINTH EU With Valves, Adjusters,Springs & Camshafts	-	1	Enquire
130	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head ALWAYS REPLACE. DO NOTRE-USE	-	28	Enquire
140	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) Pack of 2	-	2	Enquire
150	DG436031AA	SUPT-ENG FRT LH	DG436031AA SUPT-ENG FRT LH	-	1	Enquire
160	DG436030AA	SUPT-ENG FRT RH	DG436030AA SUPT-ENG FRT RH	-	1	Enquire
170	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Pack of 10	-	8	Enquire
180	1R120210537	PISTON OIL SQUIRTER	1R120210537 PISTON OIL SQUIRTER	-	12	Enquire
210	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head ALWAYS REPLACE. DO NOTRE-USE ARRIVING SOON	-	10	Enquire
220	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap ALWAYS REPLACE. DO NOTRE-USE	-	14	Enquire
230	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm)	-	4	Enquire
240	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	1R120110678 CAP-CRANKSHAFT MAIN BRG-REAR	-	7	Enquire
250	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup	-	4	Enquire
260	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE	-	4	Enquire
270	704775	Plug, 19.35, Exp Cup	704775 Plug, 19.35, Exp Cup	-	1	Enquire
280	185133	Stud Bolt, Bearing Caps ARRIVING SOON	185133 Stud Bolt, Bearing Caps ARRIVING SOON	-	4	Enquire
290	W701202S300	Pin, 8 x 18.25	W701202S300 Pin, 8 x 18.25	-	4	Enquire
300	707151	PIN-6x16 DWL CHMFR H	707151 PIN-6x16 DWL CHMFR H	-	2	Enquire
310	699134	Dowel, Hollow	699134 Dowel, Hollow	-	2	Enquire
320	707150	PIN	707150 PIN	-	2	Enquire
330	7G436055AA	Cylinder Liner, V12	7G436055AA Cylinder Liner, V12	-	12	Enquire
360	HD339424AA	MNIFLD ASY INTKE RH	HD339424AA MNIFLD ASY INTKE RH	-	1	Enquire
380	4G432A411AA	CARTRIDGE ASSEMBLY ARRIVING SOON	4G432A411AA CARTRIDGE ASSEMBLY ARRIVING SOON	-	2	Enquire
390	HD339424BC	MNIFLD ASSY INTKE LH	HD339424BC MNIFLD ASSY INTKE LH	-	1	Enquire
400	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	-	14	Enquire
410	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold	-	14	Enquire
420	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	-	8	Enquire
430	CD339J444AD	SUPPORT BRACE - INT	CD339J444AD SUPPORT BRACE - INT	-	1	Enquire
440	700211	SCREW M6x14 HEX FLG8	700211 SCREW M6x14 HEX FLG8	-	1	Enquire
450	CD339J446AA	CAP ASY VAC POR INTK	CD339J446AA CAP ASY VAC POR INTK	-	2	Enquire
