Exhaust Manifolds of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Exhaust Manifolds

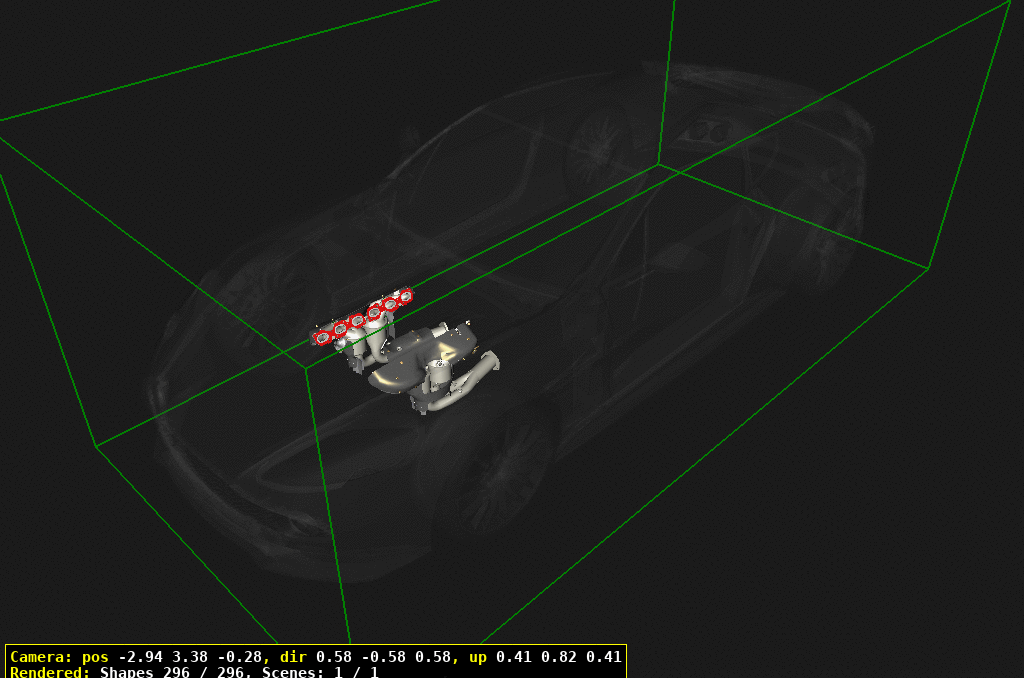

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	CD335G232AA	Manifold Assy, Exhaust, LH	CD335G232AA Manifold Assy, Exhaust, LH	-	1	Enquire
30	CD335G236AA	Manifold Assy, Exhaust, RH	CD335G236AA Manifold Assy, Exhaust, RH	-	1	Enquire
40	706712	Nut, M8 x 1.25, Hex Flg Hd	706712 Nut, M8 x 1.25, Hex Flg Hd	-	24	Enquire
50	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	8D339A462BB Heat Shield, Exhaust Manifold, LH Front	-	1	Enquire
60	8G439A462AD	Heat Shield, Exhaust Manifold, RH Rear	8G439A462AD Heat Shield, Exhaust Manifold, RH Rear	-	1	Enquire
70	700211	SCREW M6x14 HEX FLG8	700211 SCREW M6x14 HEX FLG8	-	20	Enquire
100	703691	Screw, M6 x 12, Pan Head Internal Torx	703691 Screw, M6 x 12, Pan Head Internal Torx	-	8	Enquire
110	4G432K175AA	CLIP EXHAUST HT SHLD	4G432K175AA CLIP EXHAUST HT SHLD	-	24	Enquire
120	CD33C5K286AA	Heat Shield, Exhaust Pipe, RH	CD33C5K286AA Heat Shield, Exhaust Pipe, RH	-	1	Enquire
130	4G439A462AC	Heat Shield, Exhaust Manifold, LH	4G439A462AC Heat Shield, Exhaust Manifold, LH	-	1	Enquire
140	4G439A462BC	Heat Shield, Exhaust Manifold, RH	4G439A462BC Heat Shield, Exhaust Manifold, RH	-	1	Enquire
150	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	4G439A462CC EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	-	2	Enquire
160	CD336K342BA	Heat Shield, Crank Sensor	CD336K342BA Heat Shield, Crank Sensor	-	1	Enquire
170	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8	-	8	Enquire
190	CD3345367BA	Heatshield, Knock Sensor, LH Rear	CD3345367BA Heatshield, Knock Sensor, LH Rear	-	1	Enquire
200	CD3345367AB	Heatshield, Knock Sensor, LH Front	CD3345367AB Heatshield, Knock Sensor, LH Front	-	1	Enquire
210	CD3345368AA	Heatshield, Knock Sensor, RH Front	CD3345368AA Heatshield, Knock Sensor, RH Front	-	1	Enquire
