Cooling System

Aston Martin GT VANQUISH ZAGATO (2016-2019)

Find Your Part

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Cooling System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

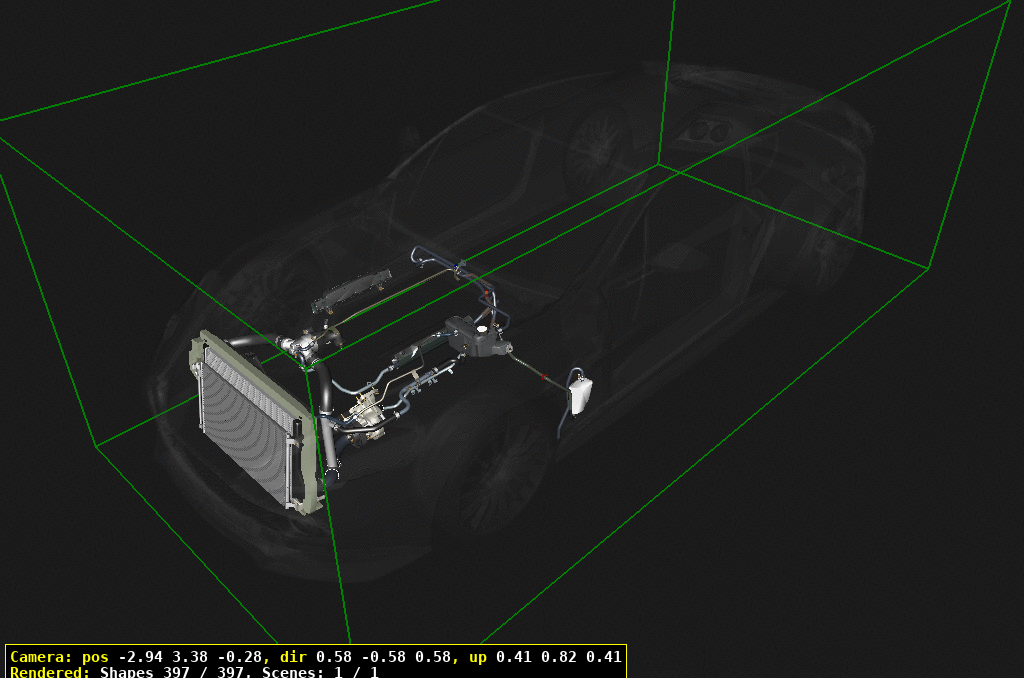

Cooling System of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 22AB201GP
ASSY PNL RR FENDER SUPPORT UPR LH 		- - Enquire
- 13A4984CP
COVER - DOOR - GAS STRUT - RH 		- - Enquire
30 4G432A155AD
Bracket, Hose Clip, Heater Outlet 		- 1 Enquire
40 4G4358AA
HOSE CLIP SPACER PLATE 		- 1 Enquire
50 CD3318D359AA
Hose Assy, Heater Outlet 		- 1 Enquire
70 701335
Clip, Hose Spring, 20 x 15 		- 2 Enquire
80 701570
Clip, Swivel 20-24.5mm 		- 1 Enquire
100 4G438063AE
Hose, Engine to Supply Tank 		- 1 Enquire
110 4G438B081AG
HOSE - RADIATOR SUPPLY TANK OVERFLOW 		- 1 Enquire
120 6G33TBD2BA
Reservoir, Coolant Expansion 		- 1 Enquire
130 703734
Bolt and Washer M6x25 hex hd 		- 2 Enquire
140 4G438N029AG
Hose Assy, Overflow 		- 1 Enquire
170 4G4319B518BC
Tank-Asy Expansion
Includes items 180-190 		- 1 Enquire
180 4G438101BA
Pressure Cap Assy 		- 1 Enquire
190 1R123710166
Switch, Coolant Level 		- 1 Enquire
200 702514
SCREW M6 x 14 PAN HEAD 		- 1 Enquire
210 703145
M6 x 30 WSHR HO BOLT ASSY CHROME FREE 		- 1 Enquire
220 CD331660AA
Spacer, Coolant Reservoir Assy 		- 1 Enquire
230 CD338C363AC
Hose Assy, Radiator Degas 		- 1 Enquire
240 707641
CLAMP-HOSE-27 x 15mm 		- 2 Enquire
250 CD338C350AB
Hose Assy, Engine Coolant Reservoir 		- 1 Enquire
260 703264
SCREW-M6 x 14 HEX HD 		- 3 Enquire
270 CD338556AC
TUB-WTR BYP ASSY 		- 1 Enquire
280 8D338333AA
HOSE RADIATOR 		- 1 Enquire
290 4G436793BB
Top Cover, Engine Harness 		- 2 Enquire
300 4G434867BC
Bottom Cover, Engine Harness 		- 2 Enquire
310 703731
Bolt, M8 x 35, Hex Flange Head 		- 4 Enquire
330 CD3318D359BA
Hose Assy, Heater Outlet 		- 1 Enquire
400 CD338A586AA
Housing and Connection Assembly, Engine Thermostat
Includes items 410-450 		- 1 Enquire
410 702855
BOLT &WASHER-M6x30 HEX FLG PIL 		- 3 Enquire
440 3285114
O Ring - Seal Housing 		- 1 Enquire
450 CD333910072
SENSOR- OIL/WATER TP 		- 1 Enquire
460 702855
BOLT &WASHER-M6x30 HEX FLG PIL 		- 3 Enquire
470 3285112
O Ring - Water Outlet 		- 1 Enquire
480 3285113
O RING SEAL
ARRIVING SOON 		- 1 Enquire
500 CD338003AA
Tube Assy, Crossover 		- 1 Enquire
510 702901
HEAVY DUTY SPRING BAND CLAMP 23 x 15 		- 1 Enquire
520 ED238584AA
HOS ASY THERMO UPR 		- 1 Enquire
530 CD338K168AA
Pump and Cover Assembly
Includes items 540-570 		- 1 Enquire
540 702843
Screw and Washer, M8 x 1.25 x 19, Hex Head 		- 4 Enquire
560 22AB711GP
PLUG 23X1.7-2.2 		$20.95 4
570 1R123210531
WATER PUMP PRESS IN SEAL 		- 1 Enquire
580 702573
BOLT M8 X 35 		- 3 Enquire
590 703694
BOLT & WASHER M8x45 HF PIL 8 		- 2 Enquire
600 585382
Gasket, Water Pump 		- 1 Enquire
610 AD2318674AB
Tube Assy, Heater Outlet 		- 1 Enquire
710 13AA435MP
ROOF GLASS - SMART 		- 1 Enquire
730 3285101PK
Bush Mounting Upper (Pack of 2)
Pack of 2 		- 4 Enquire
740 CD33F8B171AA
Foam Seal, Radiator LH 		- 1 Enquire
750 CD33F8B170BA
Foam Seal, Radiator RH 		- 1 Enquire
770 CD338W000BB
Radiator and Oil Cooler Assy
Includes items 780-790 		- 1 Enquire
780 CD338005BB
Radiator Module Assembly 		- 1 Enquire
790 CD337A095BA
Oil Cooler, Auto Trans 		- 1 Enquire
810 703728
Screw, M6 x 19, Square Head 		- 2 Enquire
820 8D338C607AD
Fan Module 		- 1 Enquire
830 FD43E830667AAPK
Washer 25mm x 6.4mm (Pack of 10)
Pack of 10 		- 2 Enquire
840 703169
NUT - M6 HEX FLANGE CHROME FREE 		- 2 Enquire
