Engine Ancillaries

Aston Martin GT VANQUISH ZAGATO (2016-2019)

Find Your Part

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Engine Ancillaries

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

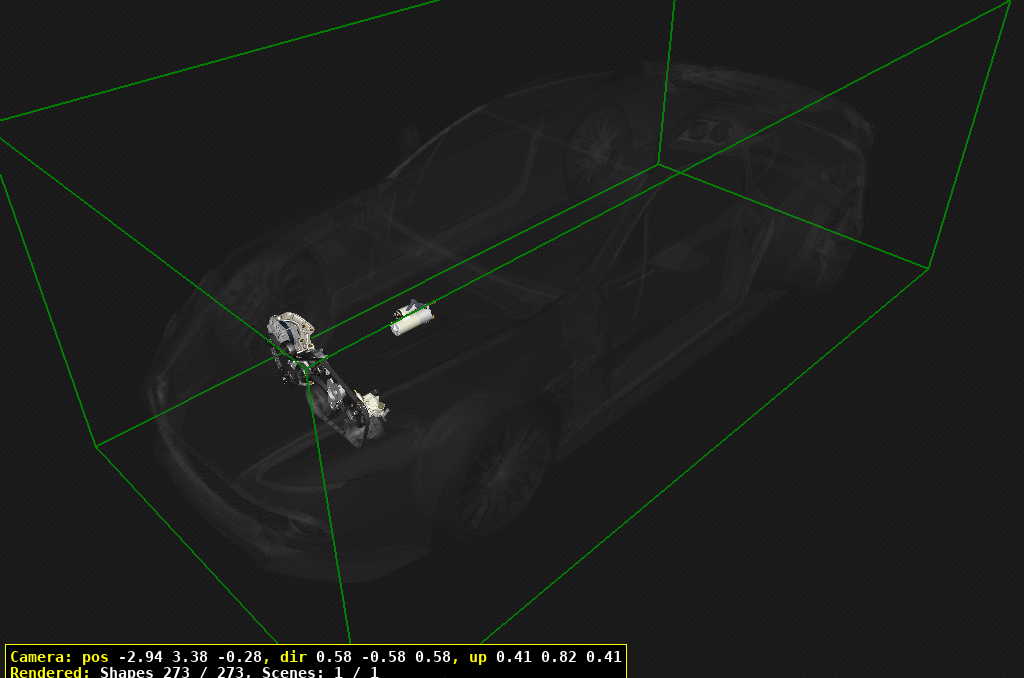

Engine Ancillaries of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
10 702856
BOLT&WASHER-M10x97.5 		- 2 Enquire
20 704079
Bolt, M10 x 150, Hex Flg Hd 		- 1 Enquire
30 FD3314W163AA
HRNS SUPP BRKT ALT 		- 1 Enquire
40 8D3310300AA
Alternator, 200A 		- 1 Enquire
50 703692
Bolt, flg, M10x45, Alt bkt to cl hd 		- 3 Enquire
60 CD3310239AB
BRKT ASY-ALT MTG 		- 1 Enquire
70 6G430110067
DOWEL CYL HD TO BLK 		- 2 Enquire
80 8G4311000AB
STARTER MOTOR DRIVE RELAY 		- 1 Enquire
90 4G4314A004GG
BRKT-CMS SENSOR BNKA 		- 1 Enquire
100 703707
BOLT-M10 X 80 HEX FLANGE HEAD GRADE 8.8 		- 2 Enquire
110 699733
WASHER M6 ST STL 		- 1 Enquire
120 699697
Nut, M6, Flg Duralock 		- 1 Enquire
130 FD433K738AC
BRKT ASSY PAS PUMP 		- 1 Enquire
140 702564
BOLT M8 X 20 		- 1 Enquire
150 702551
BOLT M8 X 35 PN TI 8 		- 3 Enquire
160 706476
BOLT-M8 x 1.25 x 55 		- 2 Enquire
170 FD433A696AA
PMP & PLY ASY-PWR ST 		- 1 Enquire
190 HD2319D629AA
COMP & CLUT ASSY AIR 		- 1 Enquire
200 703702
BOLT M8x1.25x24.5 		- 3 Enquire
210 ED238620AA
Feed Drive Belt 		- 1 Enquire
220 1R120510488
Pulley, Engine Idler 		- 2 Enquire
230 1R120510530
Idler Pulley Grooved 		- 1 Enquire
240 585368
Tensioner Drive Belt 		- 1 Enquire
