Aston Martin GT DBS (2007-2012) - Valve Train

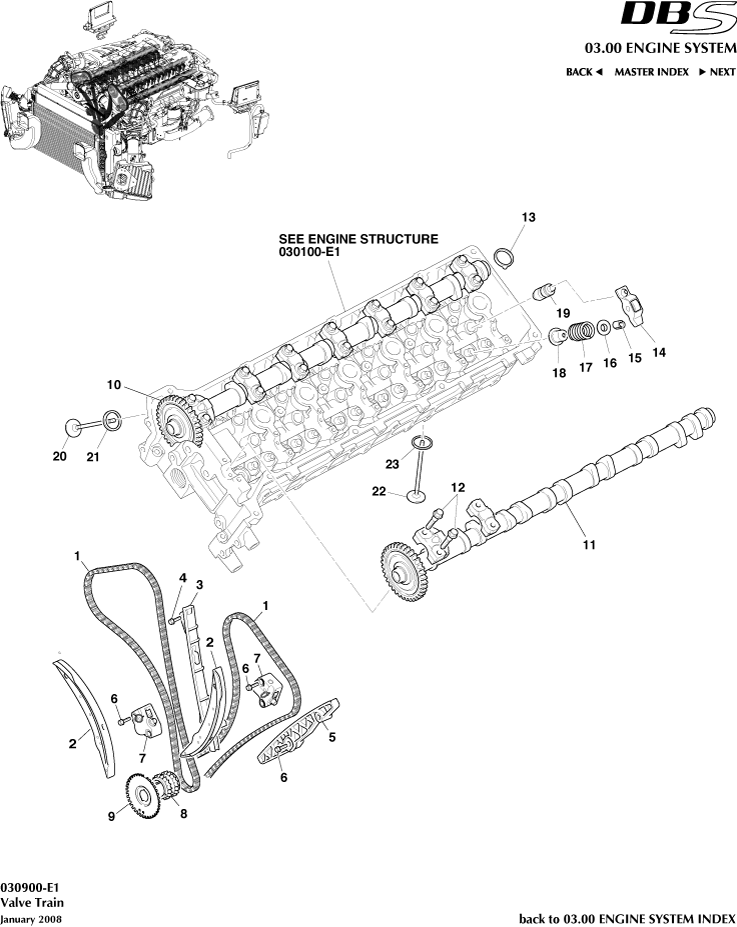

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7G4E6A266AB	Camshaft Assy, Intake, RH	7G4E6A266AB Camshaft Assy, Intake, RH -	-	1	Enquire
-	7G4E6A268AB	Camshaft Assy, Exhaust, RH	7G4E6A268AB Camshaft Assy, Exhaust, RH -	-	1	Enquire
-	685035	Bushing, Valve Guide	685035 Bushing, Valve Guide -	-	48	Enquire
-	SY9Y23942UBW	DOOR ASSY TRIM RH	SY9Y23942UBW DOOR ASSY TRIM RH 12MY	-	48	Enquire
1	1R120310483	Chain, Timing	1R120310483 Chain, Timing -	-	2	Enquire
2	4G430310013	Arm Assembly, Timing Chain Tensioner	4G430310013 Arm Assembly, Timing Chain Tensioner -	-	2	Enquire
3	1R120310069	Guide, Timing Chain, RH	1R120310069 Guide, Timing Chain, RH -	-	1	Enquire
4	702851	BOLT & WASHER M8 X 32 HEX FLANGE	702851 BOLT & WASHER M8 X 32 HEX FLANGE -	-	2	Enquire
5	1R120310070	Guide, Timing Chain, LH	1R120310070 Guide, Timing Chain, LH -	-	1	Enquire
6	703694	BOLT & WASHER M8x45 HF PIL 8	703694 BOLT & WASHER M8x45 HF PIL 8 -	-	6	Enquire
7	1R120310071	Tensioner - Timing Chain ARRIVING SOON	1R120310071 Tensioner - Timing Chain - ARRIVING SOON	-	2	Enquire
8	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	4G430210012 CRANKSHAFT SPROCKET-DOUBLE - 21T -	-	1	Enquire
9	1R120710230	SENSOR RING-IGNITION	1R120710230 SENSOR RING-IGNITION -	-	1	Enquire
10	7G4E6A267AB	Camshaft Assy, Intake, LH	7G4E6A267AB Camshaft Assy, Intake, LH -	-	1	Enquire
11	7G4E6A269AB	Camshaft Assy, Exhaust, LH	7G4E6A269AB Camshaft Assy, Exhaust, LH -	-	1	Enquire
12	685321	Bolt, M6 x 40, Hex Hd	685321 Bolt, M6 x 40, Hex Hd -	-	56	Enquire
13	785366	GASKET SPARK PLUG HOLE	785366 GASKET SPARK PLUG HOLE -	-	12	Enquire
14	685914	Arm Assembly Valve Rocker ARRIVING SOON	685914 Arm Assembly Valve Rocker - ARRIVING SOON	-	48	Enquire
15	685041	Key, Valve Spring	685041 Key, Valve Spring -	-	96	Enquire
16	685040	Retainer Valve Spring	685040 Retainer Valve Spring -	-	48	Enquire
17	1R120610062	Spring, Valve	1R120610062 Spring, Valve -	-	48	Enquire
18	685038PK	Seal Valve Stem (Pack of 24)	685038PK Seal Valve Stem (Pack of 24) -	-	48	Enquire
19	685042	Adjuster Valve Lash	685042 Adjuster Valve Lash -	-	48	Enquire
20	685037	Valve, Exhaust ARRIVING SOON	685037 Valve, Exhaust - ARRIVING SOON	-	24	Enquire
21	685034	INSERT-V/SEAT EXH	685034 INSERT-V/SEAT EXH -	-	24	Enquire
22	4G430610577	Valve, Inlet ARRIVING SOON	4G430610577 Valve, Inlet - ARRIVING SOON	-	24	Enquire
23	6G430610177	Insert, Valve Seat, Intake	6G430610177 Insert, Valve Seat, Intake -	-	24	Enquire
