Power Conversion of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Power Conversion

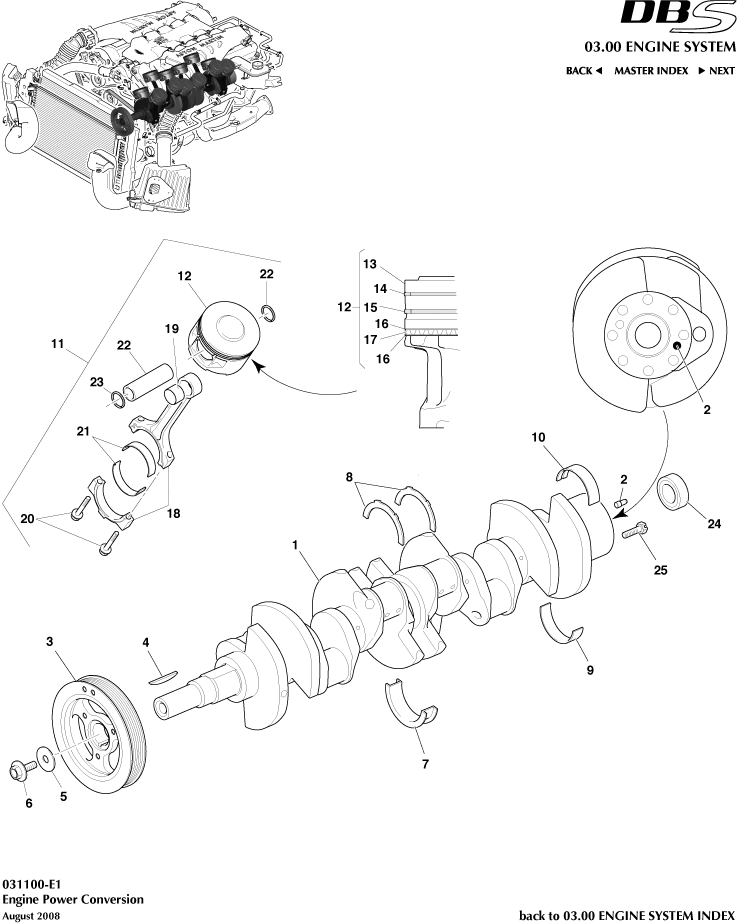

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012)	4R3E6A338BA Bearing, Crankshaft, Main, Lower (.012) -	-	-	Enquire
-	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	4R3E6A338CA Bearing, Crankshaft, Main, Lower (.014) -	-	-	Enquire
-	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2	4R3E6333BA Bearing Crankshaft Main Upper Grade 2 -	-	-	Enquire
-	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3	4R3E6333CA Bearing Crankshaft Main Upper Grade 3 -	-	-	Enquire
-	8D330210019	Piston, Grade Size 2	8D330210019 Piston, Grade Size 2 -	-	-	Enquire
-	8D330210021	Piston, Grade Size 3	8D330210021 Piston, Grade Size 3 -	-	-	Enquire
-	6E5E6211BB	BEARING CON ROD 0.25	6E5E6211BB BEARING CON ROD 0.25 0.25mm undersized	-	24	Enquire
1	4G430210229	CrankShaft	4G430210229 CrankShaft -	-	1	Enquire
2	1R124110177	DOWEL PIN	1R124110177 DOWEL PIN -	-	1	Enquire
4	285008	Key, Crankshaft, 4.76 x 53.5	285008 Key, Crankshaft, 4.76 x 53.5 -	-	1	Enquire
5	4G430210821	WASHER-13.5 x 39.5 x 7.35 FL STL	4G430210821 WASHER-13.5 x 39.5 x 7.35 FL STL -	-	1	Enquire
6	4G430210822	BOLT-M12x48 HF PIL10 ARRIVING SOON	4G430210822 BOLT-M12x48 HF PIL10 ALWAYS REPLACE. DO NOT RE-USE ARRIVING SOON	-	1	Enquire
7	673011598	SENSOR	673011598 SENSOR -	-	1	Enquire
8	4W7E6A341AB	WSHR-CRANK MN THRT U	4W7E6A341AB WSHR-CRANK MN THRT U -	-	2	Enquire
9	4R3E6A338AA	Bearing CrankShaft Main Thrust Lower	4R3E6A338AA Bearing CrankShaft Main Thrust Lower -	-	6	Enquire
10	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1	4R3E6333AA Bearing Crankshaft Main Upper Grade 1 -	-	7	Enquire
11	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Please order individual items	-	12	Enquire
12	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Order Details	-	-	Enquire
13	4G4E6110AA	PISTON -GRADE SIZE 1	4G4E6110AA PISTON -GRADE SIZE 1	-	-	Enquire
14	1R120210060	Piston Ring Compression Upper	1R120210060 Piston Ring Compression Upper -	-	12	Enquire
15	285013	Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	285013 Piston Ring Compression Lower Orange/Yellow Ring - ARRIVING SOON	-	12	Enquire
16	285014	Segment, Piston Oil Control Ring	285014 Segment, Piston Oil Control Ring -	-	24	Enquire
17	285015	Spacer, Piston Oil Control Segment	285015 Spacer, Piston Oil Control Segment -	-	12	Enquire
18	4G430210687	CONN ROD ASSY	4G430210687 CONN ROD ASSY -	-	12	Enquire
19	4G430210968	BUSH - CONN ROD V12	4G430210968 BUSH - CONN ROD V12 -	-	12	Enquire
20	285018	Bolt, Connecting Rod ARRIVING SOON	285018 Bolt, Connecting Rod ALWAYS REPLACE. DO NOT RE-USE ARRIVING SOON	-	24	Enquire
21	6E5E6211AB	Bearing, Connecting Rod	6E5E6211AB Bearing, Connecting Rod -	-	24	Enquire
22	285010	PIN-PISTON	285010 PIN-PISTON -	-	12	Enquire
23	1R120210448	Retainer, Piston Pin	1R120210448 Retainer, Piston Pin -	-	24	Enquire
24	1R120210061	Bearing Assembly Pilot ARRIVING SOON	1R120210061 Bearing Assembly Pilot - ARRIVING SOON	-	1	Enquire
25	697786PK	Bolt-M10 x 1 x 30 HEX HD Locking Pack of 5	697786PK Bolt-M10 x 1 x 30 HEX HD Locking Pack of 5 ALWAYS REPLACE. DO NOT RE-USE. Pack of 5	-	8	Enquire
