Coolant Hoses & Reservoir of Aston Martin Aston Martin GT DBS (2007-2012)

View All

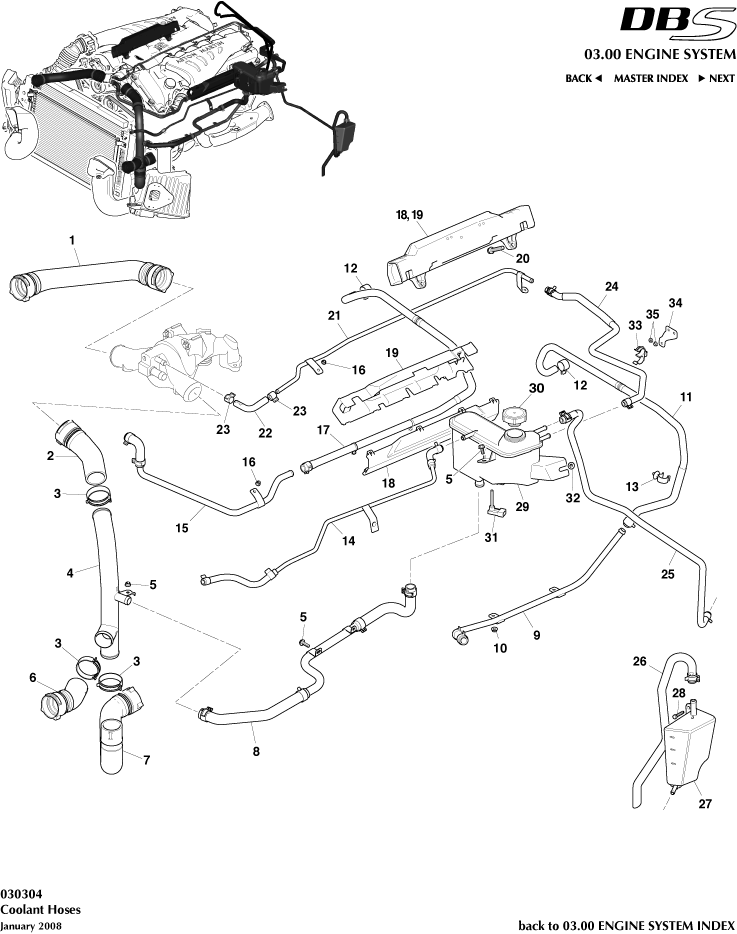

Aston Martin GT DBS (2007-2012) - Coolant Hoses & Reservoir

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G438C350CA	Hose, Make Up Tube to Bypass Tube	4G438C350CA Hose, Make Up Tube to Bypass Tube -	-	1	Enquire
-	4G438C350FA	MAKE UP TUBE ASSY	4G438C350FA MAKE UP TUBE ASSY -	-	1	Enquire
-	4G438C350EA	HOSE MAKE UP TUBE TO RESERVOIR	4G438C350EA HOSE MAKE UP TUBE TO RESERVOIR -	-	1	Enquire
-	4G4318D359AC	HEATER OUTLET HOSE ASSY - LHD	4G4318D359AC HEATER OUTLET HOSE ASSY - LHD LHD	-	1	Enquire
-	4G4318D334AC	HEATER INLET HOSE ASSY - LHD	4G4318D334AC HEATER INLET HOSE ASSY - LHD LHD	-	1	Enquire
1	8D338333AA	HOSE RADIATOR	8D338333AA HOSE RADIATOR -	-	1	Enquire
2	8D338555EA	HOSE ASSY - BYPASS TUBE TO THERMOSTAT	8D338555EA HOSE ASSY - BYPASS TUBE TO THERMOSTAT -	-	1	Enquire
3	702903	Heavy Duty Spring Band Clamp 55 x 15	702903 Heavy Duty Spring Band Clamp 55 x 15 -	-	2	Enquire
4	8D338555FA	TUBE - WATER BYPASS	8D338555FA TUBE - WATER BYPASS -	-	1	Enquire
5	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD -	-	4	Enquire
6	8D338555DA	HOSE ASSY- BYPASS TUBE TO RADIATOR MODULE	8D338555DA HOSE ASSY- BYPASS TUBE TO RADIATOR MODULE -	-	1	Enquire
7	8D338555BA	HOSE ASSY - BYPASS TUBE TO WATER PUMP	8D338555BA HOSE ASSY - BYPASS TUBE TO WATER PUMP -	-	1	Enquire
8	4G438C350AD	HOS-ENG COOL RESVR A	4G438C350AD HOS-ENG COOL RESVR A -	-	1	Enquire
9	4G4318674AD	TUB-ASY HTR OLET	4G4318674AD TUB-ASY HTR OLET -	-	1	Enquire
10	701345	NUT M6 HEX FLG MTL 8	701345 NUT M6 HEX FLG MTL 8 -	-	2	Enquire
11	4G4318D359BC	HEATER OUTLET HOSE ASSY - RHD	4G4318D359BC HEATER OUTLET HOSE ASSY - RHD RHD	-	1	Enquire
12	701335	Clip, Hose Spring, 20 x 15	701335 Clip, Hose Spring, 20 x 15 -	-	2	Enquire
13	701570	Clip, Swivel 20-24.5mm	701570 Clip, Swivel 20-24.5mm -	-	1	Enquire
14	4G438C363FC	HOSE RAD DEGAS	4G438C363FC HOSE RAD DEGAS -	-	1	Enquire
15	4G438584DA	TUB HTR INLT	4G438584DA TUB HTR INLT -	-	1	Enquire
16	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	4	Enquire
18	4G436793BB	Top Cover, Engine Harness	4G436793BB Top Cover, Engine Harness -	-	2	Enquire
19	4G434867BC	Bottom Cover, Engine Harness	4G434867BC Bottom Cover, Engine Harness -	-	2	Enquire
20	703731	Bolt, M8 x 35, Hex Flange Head	703731 Bolt, M8 x 35, Hex Flange Head -	-	4	Enquire
21	4G438003EA	PIPE-C/OVR BLD	4G438003EA PIPE-C/OVR BLD -	-	1	Enquire
22	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	4G438003CA Hose, Thermo Housing, Cross Over Bleed -	-	1	Enquire
23	702904	Spring Clamp, Hose, 17 x 15	702904 Spring Clamp, Hose, 17 x 15 -	-	2	Enquire
25	4G438B081AG	HOSE - RADIATOR SUPPLY TANK OVERFLOW	4G438B081AG HOSE - RADIATOR SUPPLY TANK OVERFLOW -	-	1	Enquire
26	4G438N029AG	Hose Assy, Overflow	4G438N029AG Hose Assy, Overflow -	-	1	Enquire
27	6G33TBD2AA	OVERFLOW BOTTLE	6G33TBD2AA OVERFLOW BOTTLE -	-	1	Enquire
28	701667	Bolt and Washer, M6 x 25	701667 Bolt and Washer, M6 x 25 -	-	2	Enquire
29	4G4319B518BC	Tank-Asy Expansion	4G4319B518BC Tank-Asy Expansion -	-	1	Enquire
30	4G438101BA	Pressure Cap Assy	4G438101BA Pressure Cap Assy -	-	1	Enquire
31	1R123710166	Switch, Coolant Level	1R123710166 Switch, Coolant Level -	-	1	Enquire
32	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB -	-	1	Enquire
33	4G4358AA	HOSE CLIP SPACER PLATE	4G4358AA HOSE CLIP SPACER PLATE -	-	1	Enquire
34	4G432A155AD	Bracket, Hose Clip, Heater Outlet	4G432A155AD Bracket, Hose Clip, Heater Outlet -	-	1	Enquire
35	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	2	Enquire
