Engine Structure of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Engine Structure

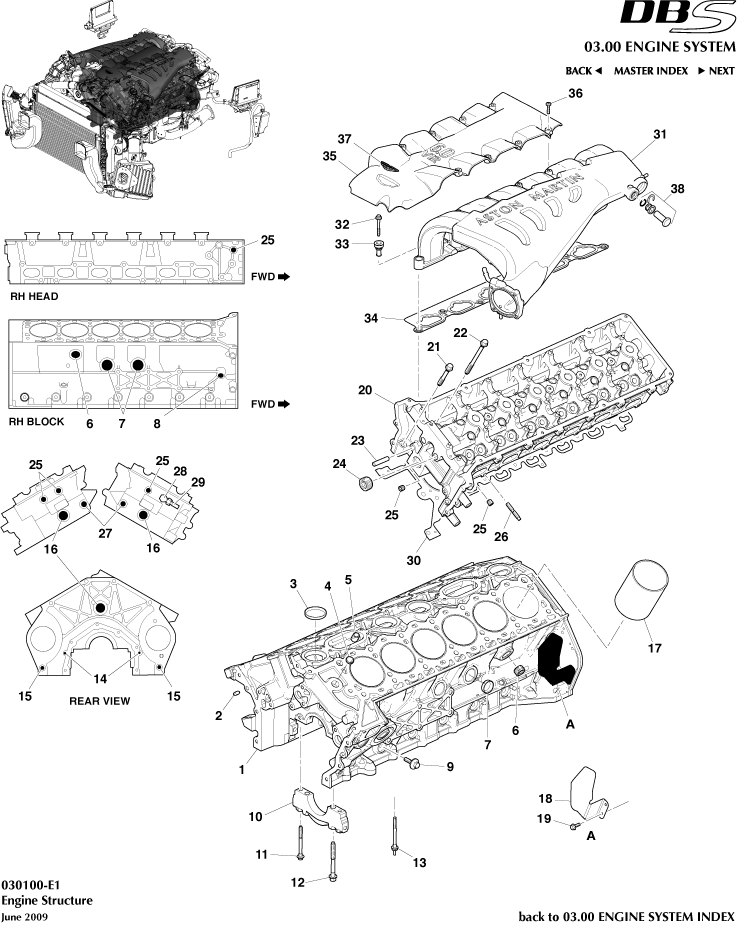

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D336007AA	BASE ENG ASSY VH300	8D336007AA BASE ENG ASSY VH300 Up to 11MY	-	1	Enquire
-	SY9Y3600TCW	STEERING WHEEL	SY9Y3600TCW STEERING WHEEL Up to 11MY	-	1	Enquire
-	BD336007AA	BASE ENG ASSY VH300	BD336007AA BASE ENG ASSY VH300 From 11MY	-	1	Enquire
-	8D336049AA	HEAD ASSEMBLY CYLINDER RH	8D336049AA HEAD ASSEMBLY CYLINDER RH -	-	1	Enquire
-	1R120610468	CYL HEAD GASKET-RH	1R120610468 CYL HEAD GASKET-RH -	-	1	Enquire
-	AD239424BA	Intake, Manifold Assy LH	AD239424BA Intake, Manifold Assy LH 10MY	-	1	Enquire
-	8D339424CB	INTAKE MANIFOLD ASSY	8D339424CB INTAKE MANIFOLD ASSY -	-	1	Enquire
-	AD239424AA	Intake, Manifold Assy RH	AD239424AA Intake, Manifold Assy RH 10MY	-	1	Enquire
-	8D336007AA	BASE ENG ASSY VH300	8D336007AA BASE ENG ASSY VH300 Up to 11MY	-	1	Enquire
-	SY9Y3600TCW	STEERING WHEEL	SY9Y3600TCW STEERING WHEEL Up to 11MY	-	1	Enquire
-	BD336007AA	BASE ENG ASSY VH300	BD336007AA BASE ENG ASSY VH300 From 11MY	-	1	Enquire
-	8D336049AA	HEAD ASSEMBLY CYLINDER RH	8D336049AA HEAD ASSEMBLY CYLINDER RH -	-	1	Enquire
-	1R120610468	CYL HEAD GASKET-RH	1R120610468 CYL HEAD GASKET-RH -	-	1	Enquire
-	AD239424BA	Intake, Manifold Assy LH	AD239424BA Intake, Manifold Assy LH 10MY	-	1	Enquire
-	8D339424CB	INTAKE MANIFOLD ASSY	8D339424CB INTAKE MANIFOLD ASSY -	-	1	Enquire
-	AD239424AA	Intake, Manifold Assy RH	AD239424AA Intake, Manifold Assy RH 10MY	-	1	Enquire
1	83305B61D81	Supplementary kit	83305B61D81 Supplementary kit -	-	1	Enquire
1	83305B61D81	Supplementary kit	83305B61D81 Supplementary kit -	-	1	Enquire
2	184995	Dowel, 8 x 18	184995 Dowel, 8 x 18 -	-	2	Enquire
2	184995	Dowel, 8 x 18	184995 Dowel, 8 x 18 -	-	2	Enquire
3	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup -	-	4	Enquire
3	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup -	-	4	Enquire
4	185001	Plug, Cup Expansion	185001 Plug, Cup Expansion -	-	1	Enquire
4	185001	Plug, Cup Expansion	185001 Plug, Cup Expansion -	-	1	Enquire
5	184994	Dowel, 16 x 19	184994 Dowel, 16 x 19 -	-	4	Enquire
5	184994	Dowel, 16 x 19	184994 Dowel, 16 x 19 -	-	4	Enquire
6	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	2	Enquire
6	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	2	Enquire
7	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm) -	-	4	Enquire
7	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm) -	-	4	Enquire
8	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	7	Enquire
8	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	7	Enquire
9	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
9	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
10	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	1R120110678 CAP-CRANKSHAFT MAIN BRG-REAR -	-	7	Enquire
10	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	1R120110678 CAP-CRANKSHAFT MAIN BRG-REAR -	-	7	Enquire
11	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91 ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
11	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91 ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
12	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head ALWAYS REPLACE. DO NOT RE-USE ARRIVING SOON	-	10	Enquire
12	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head ALWAYS REPLACE. DO NOT RE-USE ARRIVING SOON	-	10	Enquire
13	185133	Stud Bolt, Bearing Caps ARRIVING SOON	185133 Stud Bolt, Bearing Caps ALWAYS REPLACE. DO NOT RE-USE ARRIVING SOON	-	4	Enquire
13	185133	Stud Bolt, Bearing Caps ARRIVING SOON	185133 Stud Bolt, Bearing Caps ALWAYS REPLACE. DO NOT RE-USE ARRIVING SOON	-	4	Enquire
14	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE -	-	2	Enquire
14	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE -	-	2	Enquire
15	699134	Dowel, Hollow	699134 Dowel, Hollow -	-	2	Enquire
15	699134	Dowel, Hollow	699134 Dowel, Hollow -	-	2	Enquire
16	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	3	Enquire
16	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	3	Enquire
17	7G436055AA	Cylinder Liner, V12	7G436055AA Cylinder Liner, V12 -	-	12	Enquire
17	7G436055AA	Cylinder Liner, V12	7G436055AA Cylinder Liner, V12 -	-	12	Enquire
18	8G436K342BB	CRANK SENSOR HEATSHIELD	8G436K342BB CRANK SENSOR HEATSHIELD -	-	1	Enquire
18	8G436K342BB	CRANK SENSOR HEATSHIELD	8G436K342BB CRANK SENSOR HEATSHIELD -	-	1	Enquire
19	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	2	Enquire
19	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	2	Enquire
20	8D336050AA	HEAD ASSEMBLY CYLINDER HEAD LH	8D336050AA HEAD ASSEMBLY CYLINDER HEAD LH -	-	1	Enquire
20	8D336050AA	HEAD ASSEMBLY CYLINDER HEAD LH	8D336050AA HEAD ASSEMBLY CYLINDER HEAD LH -	-	1	Enquire
21	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	4	Enquire
21	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	4	Enquire
22	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	28	Enquire
22	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	28	Enquire
23	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25 -	-	2	Enquire
23	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25 -	-	2	Enquire
24	685032	PLUG-1 x 11.5	685032 PLUG-1 x 11.5 -	-	1	Enquire
24	685032	PLUG-1 x 11.5	685032 PLUG-1 x 11.5 -	-	1	Enquire
25	184999	PLUG-PIPE-SHORT	184999 PLUG-PIPE-SHORT -	-	2	Enquire
25	184999	PLUG-PIPE-SHORT	184999 PLUG-PIPE-SHORT -	-	2	Enquire
26	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head -	-	24	Enquire
26	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head -	-	24	Enquire
27	685031	PLUG-3/8 x 14	685031 PLUG-3/8 x 14 -	-	2	Enquire
27	685031	PLUG-3/8 x 14	685031 PLUG-3/8 x 14 -	-	2	Enquire
28	1R1E9B339AB	FTG-OIL PRESS SDR	1R1E9B339AB FTG-OIL PRESS SDR -	-	1	Enquire
28	1R1E9B339AB	FTG-OIL PRESS SDR	1R1E9B339AB FTG-OIL PRESS SDR -	-	1	Enquire
29	1R123910532	Switch, Oil Pressure	1R123910532 Switch, Oil Pressure -	-	1	Enquire
29	1R123910532	Switch, Oil Pressure	1R123910532 Switch, Oil Pressure -	-	1	Enquire
30	1R120610469	CYL HEAD GASKET-LH	1R120610469 CYL HEAD GASKET-LH -	-	1	Enquire
30	1R120610469	CYL HEAD GASKET-LH	1R120610469 CYL HEAD GASKET-LH -	-	1	Enquire
31	8D339424DB	MANF ASY INTK LH	8D339424DB MANF ASY INTK LH -	-	1	Enquire
31	8D339424DB	MANF ASY INTK LH	8D339424DB MANF ASY INTK LH -	-	1	Enquire
32	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 -	-	14	Enquire
32	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 -	-	14	Enquire
33	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold -	-	14	Enquire
33	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold -	-	14	Enquire
34	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) -	-	2	Enquire
34	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) -	-	2	Enquire
35	8D339J444AD	SUPT INTAKE MANIFOLD	8D339J444AD SUPT INTAKE MANIFOLD -	-	1	Enquire
35	8D339J444AD	SUPT INTAKE MANIFOLD	8D339J444AD SUPT INTAKE MANIFOLD -	-	1	Enquire
36	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8 -	-	8	Enquire
36	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8 -	-	8	Enquire
37	8D33001B46BB	Wing Badge, Engine Manifold	8D33001B46BB Wing Badge, Engine Manifold -	-	1	Enquire
37	8D33001B46BB	Wing Badge, Engine Manifold	8D33001B46BB Wing Badge, Engine Manifold -	-	1	Enquire
38	705136	CARTRIDGE ASSY	705136 CARTRIDGE ASSY -	-	1	Enquire
38	705136	CARTRIDGE ASSY	705136 CARTRIDGE ASSY -	-	1	Enquire
