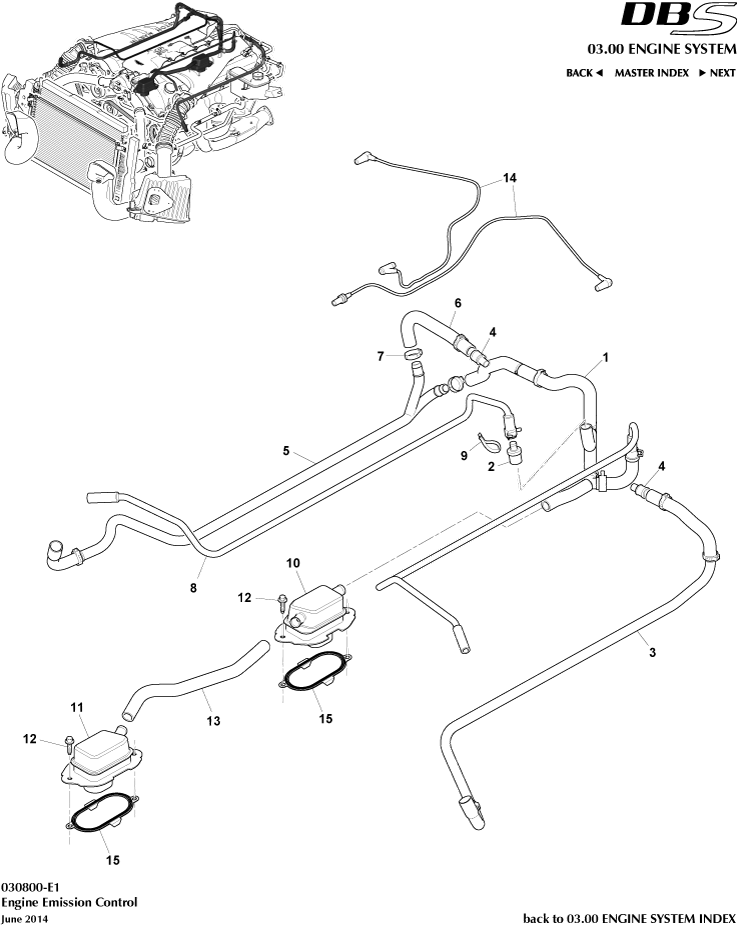

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G439E498AA	Vacuum Harness, Engine IN STOCK	4G439E498AA Vacuum Harness, Engine - IN STOCK	-	1	Enquire
1	4G433710288	Vacuum Harness Engine	4G433710288 Vacuum Harness Engine -	-	1	Enquire
2	3485327	PCV Valve IN STOCK	3485327 PCV Valve - IN STOCK	-	1	Enquire
3	4G433710289	Vacuum Harness Engine IN STOCK	4G433710289 Vacuum Harness Engine - IN STOCK	-	1	Enquire
4	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	2	Enquire
5	4G433710290	VACUUM HARNESS-ENG	4G433710290 VACUUM HARNESS-ENG -	-	1	Enquire
6	4G433710293	Vacuum Harness Engine IN STOCK	4G433710293 Vacuum Harness Engine - IN STOCK	-	1	Enquire
7	702828	CLIP - HOSE CLAMP CRIMP 19.4 IN STOCK	702828 CLIP - HOSE CLAMP CRIMP 19.4 - IN STOCK	-	2	Enquire
8	4G433710291	Vacuum Harness Engine IN STOCK	4G433710291 Vacuum Harness Engine - IN STOCK	-	1	Enquire
10	4G430110197	Separator Assy, Oil	4G430110197 Separator Assy, Oil -	-	1	Enquire
11	4G430110836	OIL SEPARATOR	4G430110836 OIL SEPARATOR -	-	1	Enquire
12	702542	BOLT M6 x 20 HF PIL 8 IN STOCK	702542 BOLT M6 x 20 HF PIL 8 - IN STOCK	-	4	Enquire
13	4G433710135	Vacuum Harness Engine IN STOCK	4G433710135 Vacuum Harness Engine - IN STOCK	-	1	Enquire
14	4G433710133	VACUUM HARNESS- ENGINE	4G433710133 VACUUM HARNESS- ENGINE -	-	1	Enquire
15	1R120110487	Gasket, Oil Separator to Cylinder Block IN STOCK	1R120110487 Gasket, Oil Separator to Cylinder Block - IN STOCK	-	2	Enquire
