Evaporative Emissions of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Evaporative Emissions

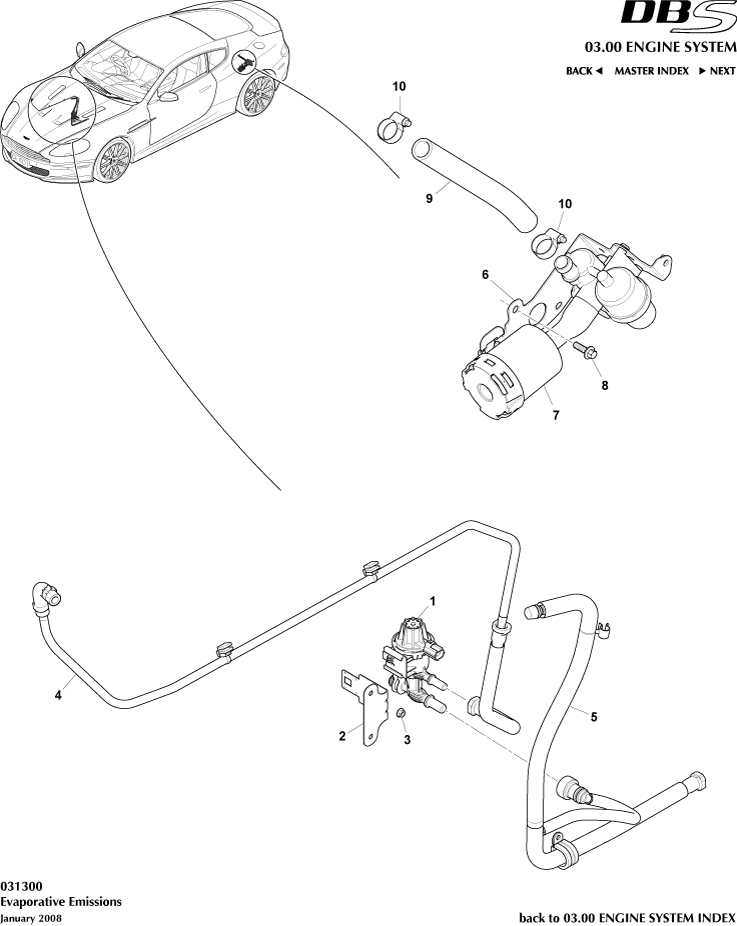

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D339D665AB	BRACKET ASSEMBLY DMTL & FILTER	8D339D665AB BRACKET ASSEMBLY DMTL & FILTER Federal	-	1	Enquire
-	BG439F984BB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984BB Hose, Fuel/Vapour Canister Vent Inlet From VIN E03189, Non Federal	-	1	Enquire
-	8D339F984AA	HOSE FUEL VAPOUR CANNISTER VENT INLET	8D339F984AA HOSE FUEL VAPOUR CANNISTER VENT INLET Up To VIN E03188, Federal	-	1	Enquire
-	BG439F984AB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984AB Hose, Fuel/Vapour Canister Vent Inlet From VIN E03189, Federal	-	1	Enquire
-	4G439D653AA	CARBON CANNISTER	4G439D653AA CARBON CANNISTER -	-	1	Enquire
-	6H529C111BA	PMP ON BD DGNTL LEK	6H529C111BA PMP ON BD DGNTL LEK -	-	1	Enquire
1	4L249G641BB	VALVE ASSY FUEL	4L249G641BB VALVE ASSY FUEL -	-	1	Enquire
2	4G439G743AA	Bracket, Electronic Fuel Vapour Management	4G439G743AA Bracket, Electronic Fuel Vapour Management -	-	1	Enquire
3	700114	NUT M5 HEX FLG 8	700114 NUT M5 HEX FLG 8 -	-	2	Enquire
4	4G439D289BD	TUBE ASSY - EVMV TO MANIFOLD RH	4G439D289BD TUBE ASSY - EVMV TO MANIFOLD RH -	-	1	Enquire
5	4G439B051AD	TUBE - PURGE VALVE INLET	4G439B051AD TUBE - PURGE VALVE INLET -	-	1	Enquire
6	8D339D665BA	BRACKET ASSEMBLY FILTER (NON FEDERAL)	8D339D665BA BRACKET ASSEMBLY FILTER (NON FEDERAL) Non Federal	-	1	Enquire
7	4G439B995AA	Filter, Fuel/Vapour Storage Canister	4G439B995AA Filter, Fuel/Vapour Storage Canister -	-	1	Enquire
8	700211	SCREW M6x14 HEX FLG8	700211 SCREW M6x14 HEX FLG8 -	-	3	Enquire
9	8G439F984BA	HOSE FUEL/VAPOUR CANISTER VENT INLET	8G439F984BA HOSE FUEL/VAPOUR CANISTER VENT INLET Up To VIN E03188, Non Federal	-	1	Enquire
10	6G430310043	CLIP HOSE-SPRING	6G430310043 CLIP HOSE-SPRING -	-	2	Enquire
