Exhaust Manifolds of Aston Martin Aston Martin GT DBS (2007-2012)

View All

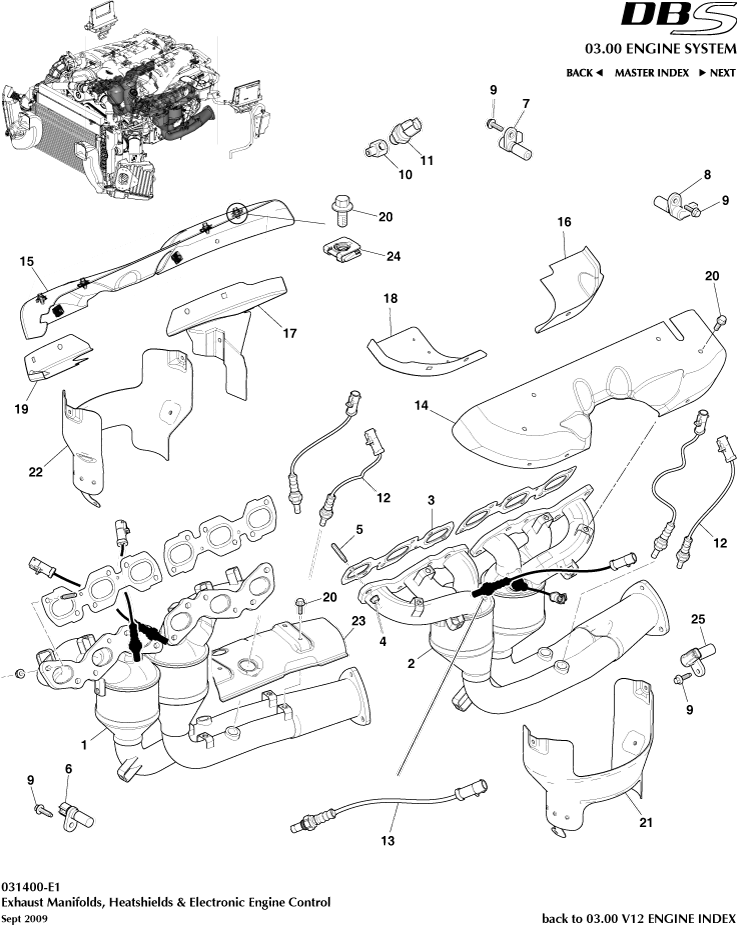

Aston Martin GT DBS (2007-2012) - Exhaust Manifolds

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields -	-	4	Enquire
-	1R120710230	SENSOR RING-IGNITION	1R120710230 SENSOR RING-IGNITION -	-	1	Enquire
1	8G435G236AA	MANF & CONV ASY EXHR	8G435G236AA MANF & CONV ASY EXHR -	-	1	Enquire
2	8G435G232AA	MANF & CONV ASY EXHL	8G435G232AA MANF & CONV ASY EXHL -	-	1	Enquire
3	4G433510003	Gasket Exhaust Manifold	4G433510003 Gasket Exhaust Manifold -	-	4	Enquire
4	697775PK	Nut M8 Hex Flange Head (Pack of 10)	697775PK Nut M8 Hex Flange Head (Pack of 10) -	-	24	Enquire
5	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head -	-	24	Enquire
6	3985756	SENSOR-CRANK TIMING	3985756 SENSOR-CRANK TIMING -	-	1	Enquire
9	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8 -	-	4	Enquire
10	685664	ADAPTOR-O/PRESS SWTC	685664 ADAPTOR-O/PRESS SWTC -	-	1	Enquire
12	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	1R123910175 Sensor HEGO RH Rear Post Catalytic Converter -	-	4	Enquire
13	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	1R123910174 Heated Exhaust Gas Oxygen Sensor Rear -	-	4	Enquire
14	4G439A462AC	Heat Shield, Exhaust Manifold, LH	4G439A462AC Heat Shield, Exhaust Manifold, LH -	-	1	Enquire
15	4G439A462BC	Heat Shield, Exhaust Manifold, RH	4G439A462BC Heat Shield, Exhaust Manifold, RH -	-	1	Enquire
16	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	4G439A462CC EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR -	-	1	Enquire
17	8G439A462AB	EXHAUST MAN HEATSHLD	8G439A462AB EXHAUST MAN HEATSHLD -	-	1	Enquire
18	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	8D339A462BB Heat Shield, Exhaust Manifold, LH Front -	-	1	Enquire
19	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	4G439A462CC EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR -	-	1	Enquire
20	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD -	-	20	Enquire
21	4G439N454AD	SHLD ASY-EXH MANF HT	4G439N454AD SHLD ASY-EXH MANF HT -	-	1	Enquire
22	4G439N454BC	SHLD ASY-EXH MANF HT	4G439N454BC SHLD ASY-EXH MANF HT -	-	1	Enquire
23	AD23C5K286AA	SHIELD - EXHAUST PIPE HEAT RH	AD23C5K286AA SHIELD - EXHAUST PIPE HEAT RH -	-	1	Enquire
25	4G433910014	Sensor, Crankshaft, Rear	4G433910014 Sensor, Crankshaft, Rear -	-	1	Enquire
