Engine Cooling (Line Fit) of Aston Martin Aston Martin GT DBS (2007-2012)

View All

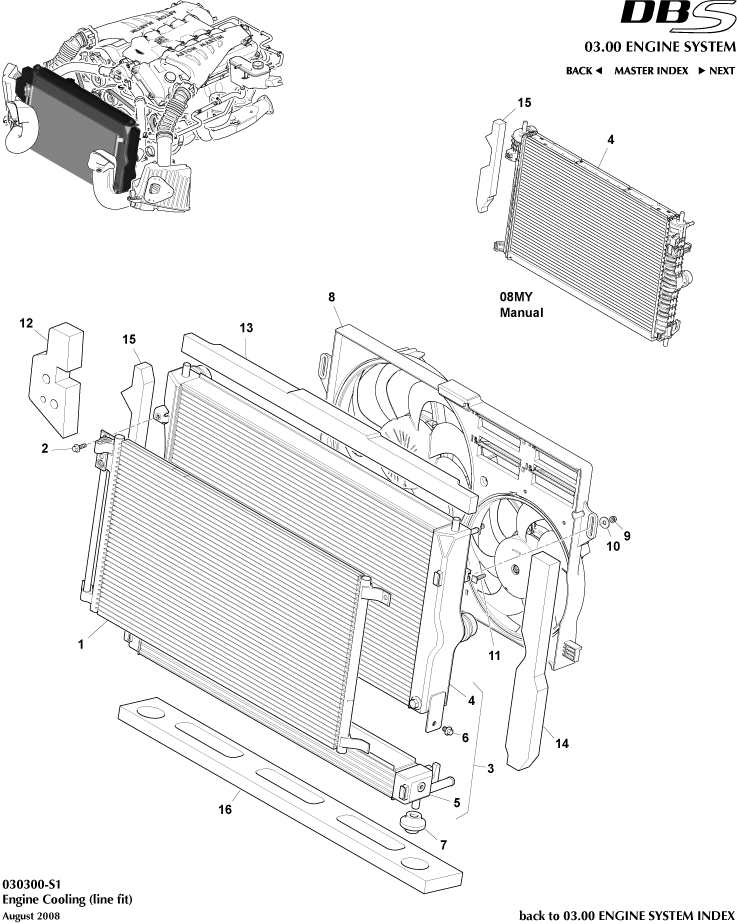

Aston Martin GT DBS (2007-2012) - Engine Cooling (Line Fit)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D338005AC	RADIATOR	8D338005AC RADIATOR 08MY	-	1	Enquire
-	9D33F8B170AA	FOAM SEAL - R/HAND	9D33F8B170AA FOAM SEAL - R/HAND 9.5MY	-	1	Enquire
-	1R12322666AAS	COOLANT A/FREEZE-1Lt	1R12322666AAS COOLANT A/FREEZE-1Lt Litre	-	1	Enquire
1	9G4319710AA	Condenser	9G4319710AA Condenser -	-	1	Enquire
2	703750	Bolt, M6 x 20, Hex Flg Hd	703750 Bolt, M6 x 20, Hex Flg Hd -	-	1	Enquire
3	9D338W000AA	Combined Radiator/Transmission Oil Cooler	9D338W000AA Combined Radiator/Transmission Oil Cooler 9.5MY	-	1	Enquire
4	9D338005AA	RADIATOR ASSY	9D338005AA RADIATOR ASSY 9.5MY	-	1	Enquire
5	SY9Y10041AA	RR WNG PYLN LH OUTHR	SY9Y10041AA RR WNG PYLN LH OUTHR 9.5MY	-	1	Enquire
6	703202	Screw, M8 x 12, Flange Hd	703202 Screw, M8 x 12, Flange Hd -	-	2	Enquire
7	3285101PK	Bush Mounting Upper (Pack of 2)	3285101PK Bush Mounting Upper (Pack of 2) -	-	4	Enquire
9	703168	NUT M6 HF PTM 8	703168 NUT M6 HF PTM 8 -	-	2	Enquire
10	699614	WASHER 22 X 6.8 X 2 STAINLESS	699614 WASHER 22 X 6.8 X 2 STAINLESS -	-	2	Enquire
11	703728	Screw, M6 x 19, Square Head	703728 Screw, M6 x 19, Square Head -	-	2	Enquire
12	4G43C8585BA	Foam Pad	4G43C8585BA Foam Pad -	-	1	Enquire
13	CG438N301AA	Foam Seal - Upper Fan Module	CG438N301AA Foam Seal - Upper Fan Module -	-	1	Enquire
14	8D33F8B171AA	FOAM SEAL - L/HAND	8D33F8B171AA FOAM SEAL - L/HAND -	-	1	Enquire
15	8D33F8B170AA	FOAM SEAL - R/HAND	8D33F8B170AA FOAM SEAL - R/HAND 08MY	-	1	Enquire
16	CG438C477AD	Foam Seal, Lower	CG438C477AD Foam Seal, Lower -	-	1	Enquire
