Engine Cooling of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Engine Cooling

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

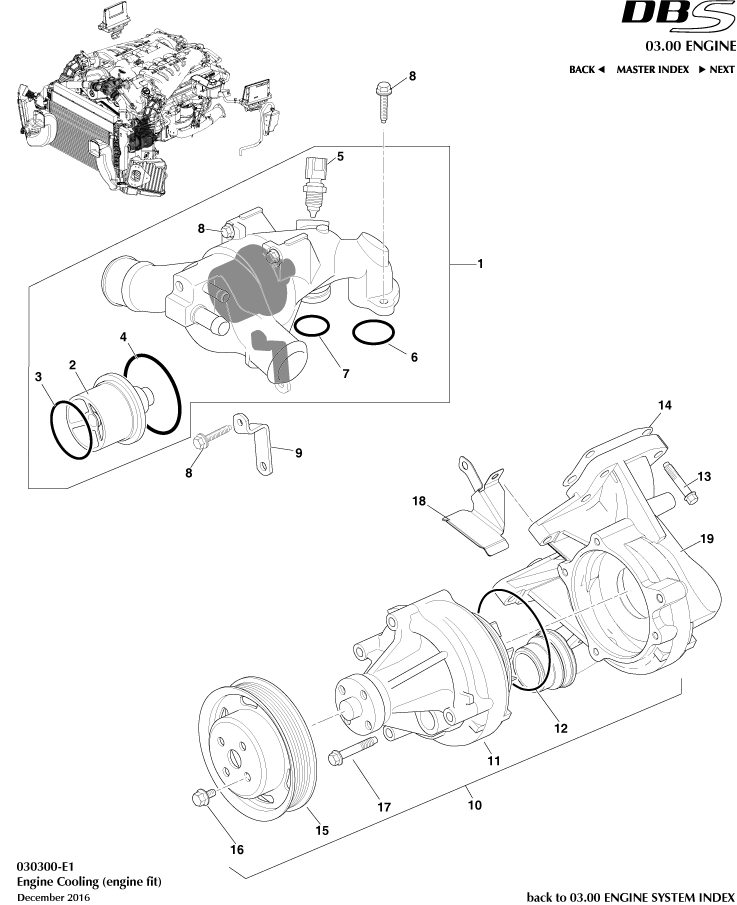

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	702842	Bolt, M8 x 1.25 x 41, Hex Flange Head	702842 Bolt, M8 x 1.25 x 41, Hex Flange Head -	-	3	Enquire
1	8G438A586AA	HSG & CONN ASY ENG T	8G438A586AA HSG & CONN ASY ENG T -	-	1	Enquire
2	4G4E8575AB	Thermostat ARRIVING SOON	4G4E8575AB Thermostat - ARRIVING SOON	-	1	Enquire
3	3285116	Seal Thermostat ARRIVING SOON	3285116 Seal Thermostat - ARRIVING SOON	-	1	Enquire
4	3285114	O Ring - Seal Housing	3285114 O Ring - Seal Housing -	-	1	Enquire
5	6G433910080	Sensor, Engine Coolant Temperature ARRIVING SOON	6G433910080 Sensor, Engine Coolant Temperature - ARRIVING SOON	-	1	Enquire
6	3285112	O Ring - Water Outlet	3285112 O Ring - Water Outlet -	-	1	Enquire
7	3285113	O RING SEAL ARRIVING SOON	3285113 O RING SEAL - ARRIVING SOON	-	1	Enquire
8	702855	BOLT &WASHER-M6x30 HEX FLG PIL	702855 BOLT &WASHER-M6x30 HEX FLG PIL -	-	6	Enquire
9	7G438A588AA	Bracket, Engine Thermostat Connector	7G438A588AA Bracket, Engine Thermostat Connector -	-	1	Enquire
10	8G438K168BA	WATER PUMP ASSEMBLY	8G438K168BA WATER PUMP ASSEMBLY -	-	1	Enquire
11	22AD429GP	LATCH TAILGATE POWER CLOSE LH	22AD429GP LATCH TAILGATE POWER CLOSE LH -	$450.84	1
12	1R123210531	WATER PUMP PRESS IN SEAL	1R123210531 WATER PUMP PRESS IN SEAL -	-	1	Enquire
13	703694	BOLT & WASHER M8x45 HF PIL 8	703694 BOLT & WASHER M8x45 HF PIL 8 -	-	3	Enquire
14	585382	Gasket, Water Pump	585382 Gasket, Water Pump -	-	3	Enquire
15	585104	Pulley, Water Pump	585104 Pulley, Water Pump -	-	1	Enquire
16	702843	Screw and Washer, M8 x 1.25 x 19, Hex Head	702843 Screw and Washer, M8 x 1.25 x 19, Hex Head -	-	4	Enquire
17	22AB711GP	PLUG 23X1.7-2.2	22AB711GP PLUG 23X1.7-2.2 -	$20.95	4
18	4G4318482AA	Hose Guard, Water Pump	4G4318482AA Hose Guard, Water Pump -	-	1	Enquire
19	8G438A513AA	CVR ASY WTR PMP	8G438A513AA CVR ASY WTR PMP -	-	1	Enquire
