Air Charging of Aston Martin Aston Martin GT DB12 (2024-

View All

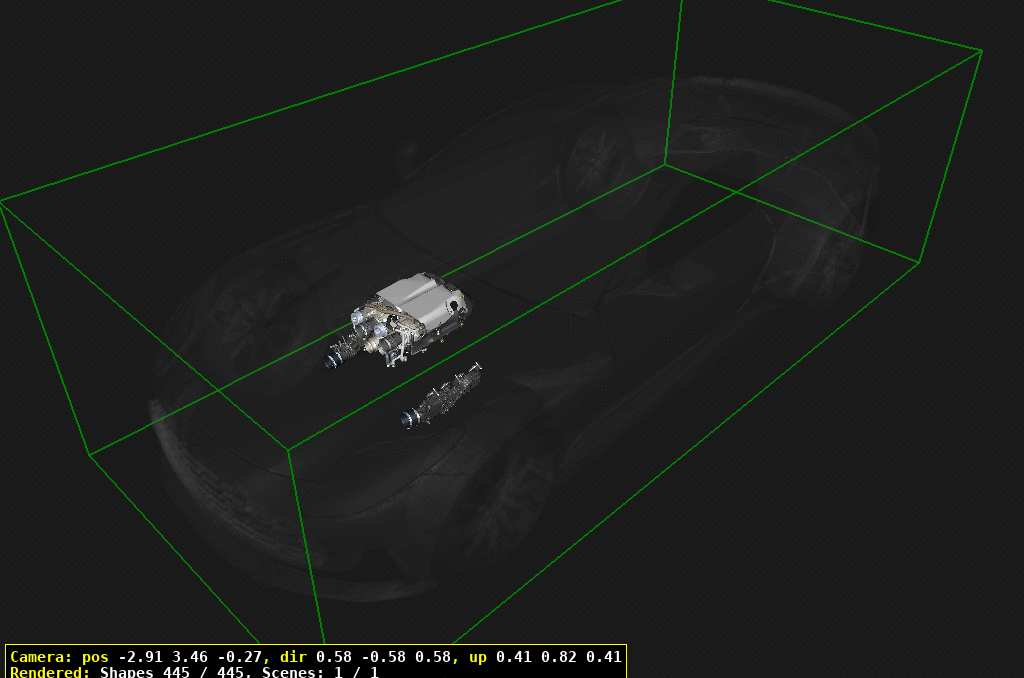

Aston Martin GT DB12 (2024- - Air Charging

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AA403GP	GAS STRUT BONNET	22AA403GP GAS STRUT BONNET When ordering a newTurbo, also order item 40	-	-	Enquire
20	PY83SE9G438BA	TURBOCHARGER ASSY RH	PY83SE9G438BA TURBOCHARGER ASSY RH	-	1	Enquire
30	PY83SE9G438AA	TURBOCHARGER ASSY LH	PY83SE9G438AA TURBOCHARGER ASSY LH	-	1	Enquire
40	MY83SE6466AA	METAL GASKET - TURBO	MY83SE6466AA METAL GASKET - TURBO Manifold to Turbo	-	2	Enquire
50	RY53SE9U468AA	PIPE - COOLANT FEED	RY53SE9U468AA PIPE - COOLANT FEED Includes item 60	-	1	Enquire
60	JY53SE8590CA	O RING SEAL	JY53SE8590CA O RING SEAL	-	1	Enquire
70	JY53SEHS000007AA	SCREW M6X30 PAN HEAD	JY53SEHS000007AA SCREW M6X30 PAN HEAD	-	1	Enquire
80	MY83SE2L202AA	SUPPORT BRACKET	MY83SE2L202AA SUPPORT BRACKET	-	1	Enquire
90	JY53SE8777AA	OETIKER CLAMP	JY53SE8777AA OETIKER CLAMP	-	4	Enquire
100	JY53SEHS000002AA	SCREW M6X12 PAN HEAD	JY53SEHS000002AA SCREW M6X12 PAN HEAD	-	7	Enquire
110	JY53SE8777BA	OETIKER CLAMP	JY53SE8777BA OETIKER CLAMP	-	1	Enquire
120	MY83SE98659AA	RETURN PIPE- COOLANT	MY83SE98659AA RETURN PIPE- COOLANT Includes item 130	-	1	Enquire
130	JY53SE8590CA	O RING SEAL	JY53SE8590CA O RING SEAL	-	1	Enquire
140	JY53SE6266AA	PLUG-COOLANT	JY53SE6266AA PLUG-COOLANT Includes item 150	-	1	Enquire
150	JY53SE8590BA	O RING SEAL	JY53SE8590BA O RING SEAL	-	1	Enquire
160	JY53SEHS000002AA	SCREW M6X12 PAN HEAD	JY53SEHS000002AA SCREW M6X12 PAN HEAD	-	1	Enquire
170	RY53SE9A462AA	HEAT SHIELD - LH	RY53SE9A462AA HEAT SHIELD - LH	-	1	Enquire
180	MY83SE9A462BA	HEAT SHIELD - RH	MY83SE9A462BA HEAT SHIELD - RH	-	1	Enquire
190	JY53SEHS000017AA	BOLT M6X16 TORX MALE	JY53SEHS000017AA BOLT M6X16 TORX MALE	-	3	Enquire
200	JY53SEHS000025AA	BOLT M8x40 TORX MALE	JY53SEHS000025AA BOLT M8x40 TORX MALE	-	2	Enquire
210	MY83SE5K272BA	PROFILE CLAMP	MY83SE5K272BA PROFILE CLAMP	-	1	Enquire
220	MY83SE5K272AA	PROFILE CLAMP	MY83SE5K272AA PROFILE CLAMP Includes item 230	-	1	Enquire
230	JY53SEHN000001AA	NUT M8 SQUARE	JY53SEHN000001AA NUT M8 SQUARE	-	2	Enquire
240	MY83SE9U468BA	PIPE - COOLANT FEED	MY83SE9U468BA PIPE - COOLANT FEED Includes item 250	-	1	Enquire
250	JY53SE8590BA	O RING SEAL	JY53SE8590BA O RING SEAL	-	2	Enquire
260	RY53SE9A462CA	TURBO COVER PLATE	RY53SE9A462CA TURBO COVER PLATE	-	1	Enquire
270	RY53SE98659BA	PIPE- COOLANT OUTLET	RY53SE98659BA PIPE- COOLANT OUTLET Includes item 280	-	1	Enquire
280	JY53SE8590BA	O RING SEAL	JY53SE8590BA O RING SEAL	-	2	Enquire
290	MY83SE9G441AA	OIL RETURN LINE-LH	MY83SE9G441AA OIL RETURN LINE-LH Includes item 310	-	1	Enquire
300	MY83SE9G441BA	OIL RETURN LINE-RH	MY83SE9G441BA OIL RETURN LINE-RH Includes item 310	-	1	Enquire
310	MY83SE00815CA	O-RING	MY83SE00815CA O-RING	-	6	Enquire
320	JY53SEHS000002AA	SCREW M6X12 PAN HEAD	JY53SEHS000002AA SCREW M6X12 PAN HEAD	-	2	Enquire
330	MY83SE98659CA	RETURN PIPE- COOLANT	MY83SE98659CA RETURN PIPE- COOLANT	-	1	Enquire
340	MY83SE9U468EA	AIR EXTRACTION PIPE	MY83SE9U468EA AIR EXTRACTION PIPE	-	1	Enquire
350	PY83SE9G440AA	OIL FEED LINE	PY83SE9G440AA OIL FEED LINE Includes items 360 & 370	-	1	Enquire
360	MY83SE00815DA	O-RING 9 x2.5mm	MY83SE00815DA O-RING 9 x2.5mm	-	4	Enquire
370	PY83SE00815AA	O RING	PY83SE00815AA O RING	-	1	Enquire
380	RY53SE9A462DA	HEATSHIELD - TOP	RY53SE9A462DA HEATSHIELD - TOP	-	1	Enquire
390	RY53SE9A462EA	HEATSHIELD - LOWER	RY53SE9A462EA HEATSHIELD - LOWER	-	1	Enquire
400	JY53SE9B462AA	BRACKET-HEATSHIELD	JY53SE9B462AA BRACKET-HEATSHIELD	-	1	Enquire
410	702293	Screw, M6 x 12mm, Pan Head	702293 Screw, M6 x 12mm, Pan Head	-	8	Enquire
420	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	3	Enquire
430	4328994	PROTECTION SET-EXT	4328994 PROTECTION SET-EXT	-	2	Enquire
440	RY53SE9W549AB	HOSE CLEAN AIR LH	RY53SE9W549AB HOSE CLEAN AIR LH	-	1	Enquire
450	RY53SE9W549BB	HOSE CLEAN AIR RH	RY53SE9W549BB HOSE CLEAN AIR RH	-	1	Enquire
460	MY83SE98659DA	RETURN PIPE- COOLANT	MY83SE98659DA RETURN PIPE- COOLANT Includes item 470	-	1	Enquire
470	JY53SE8590BA	O RING SEAL	JY53SE8590BA O RING SEAL	-	2	Enquire
480	52209475295	Bracket for trim, left	52209475295 Bracket for trim, left Includes item 490	-	1	Enquire
490	JY53SE8590BA	O RING SEAL	JY53SE8590BA O RING SEAL	-	2	Enquire
500	JY53SEHS000002AA	SCREW M6X12 PAN HEAD	JY53SEHS000002AA SCREW M6X12 PAN HEAD	-	2	Enquire
510	RY53SE42596AA	SPRING CLIP	RY53SE42596AA SPRING CLIP Included with Heatshields	-	2	Enquire
600	RY53SE9425AA	MANIFOLD ASSY-LH	RY53SE9425AA MANIFOLD ASSY-LH Includes items 620-650	-	1	Enquire
610	RY53SE9425BA	MANIFOLD ASSY-RH	RY53SE9425BA MANIFOLD ASSY-RH Includes items 620-650	-	1	Enquire
620	JY53SE9P851AA	GASKET-SEAL-MANIFOLD	JY53SE9P851AA GASKET-SEAL-MANIFOLD	-	8	Enquire
630	JY53SE12B676AA	PRESSURE SENSOR-WCAC	JY53SE12B676AA PRESSURE SENSOR-WCAC	-	2	Enquire
640	MY83SEHS000054AA	SCREW M6X16	MY83SEHS000054AA SCREW M6X16	-	2	Enquire
650	JY53SE12B676BA	SENSOR-TEMPERATURE	JY53SE12B676BA SENSOR-TEMPERATURE	-	2	Enquire
660	JY53SE9C789AA	VENT STUB-MANIFOLD	JY53SE9C789AA VENT STUB-MANIFOLD	-	2	Enquire
670	RY53SE9S331AA	THROTTLE CUFF LH	RY53SE9S331AA THROTTLE CUFF LH Includes item 690	-	1	Enquire
680	RY53SE9S331BA	THROTTLE CUFF RH	RY53SE9S331BA THROTTLE CUFF RH Includes item 690	-	1	Enquire
690	JY53SE9N832AA	HOSE BAND CLAMP	JY53SE9N832AA HOSE BAND CLAMP	-	4	Enquire
