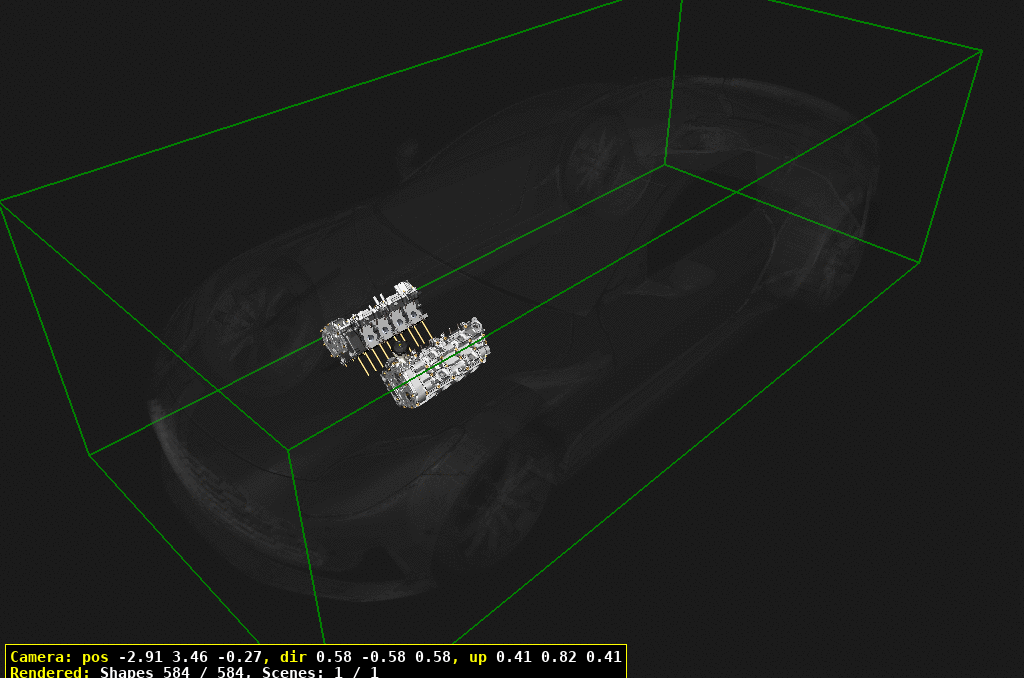

Cylinder Head of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Cylinder Head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	JY53SE6766AB	CAP-OIL FILLER-AML	JY53SE6766AB CAP-OIL FILLER-AML	-	1	Enquire
30	JY53SE9E936AA	SEAL-OIL FILLER CAP	JY53SE9E936AA SEAL-OIL FILLER CAP	-	1	Enquire
40	JY53SE6065AA	BOLT-CYLINDER HEAD	JY53SE6065AA BOLT-CYLINDER HEAD ALWAYS REPLACE. DO NOTREUSE	-	20	Enquire
50	JY53SE9400AA	ROLLER TAPPET	JY53SE9400AA ROLLER TAPPET Fuel Pump	-	2	Enquire
60	JY53SE6D080BA	COVER - CHAIN CASE	JY53SE6D080BA COVER - CHAIN CASE	-	2	Enquire
70	JY53SEHS000014AA	SCREW M6X16 TORX HD	JY53SEHS000014AA SCREW M6X16 TORX HD	-	18	Enquire
80	JY53SE6M299AA	END CAP-CAMSHAFT	JY53SE6M299AA END CAP-CAMSHAFT	-	3	Enquire
90	RY53SE6763AA	OIL FILLER NECK	RY53SE6763AA OIL FILLER NECK Includes item 95	-	1	Enquire
95	JY53SE6721AA	SEAL-FILLER NECK	JY53SE6721AA SEAL-FILLER NECK	-	1	Enquire
100	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	2	Enquire
110	MY83SEHS000061AA	BOLT-M7 TORX MALE	MY83SEHS000061AA BOLT-M7 TORX MALE ALWAYS REPLACE. DO NOTREUSE	-	4	Enquire
120	JY53SE6065BA	BOLT-CYLINDER HEAD	JY53SE6065BA BOLT-CYLINDER HEAD ALWAYS REPLACE. DO NOTREUSE	-	2	Enquire
130	JY53SE9072AA	GROMMET-OIL FILLER	JY53SE9072AA GROMMET-OIL FILLER	-	1	Enquire
140	JY53SE6083AB	GASKET-CYL.HEAD-LH	JY53SE6083AB GASKET-CYL.HEAD-LH	-	1	Enquire
150	JY53SE6051AB	GASKET-CYL.HEAD-RH	JY53SE6051AB GASKET-CYL.HEAD-RH	-	1	Enquire
160	JY53SE3823AA	STUD-EXH MANIFOLD	JY53SE3823AA STUD-EXH MANIFOLD	-	32	Enquire
170	22AB727GP	SEAL BONNET MARGIN MLD RH	22AB727GP SEAL BONNET MARGIN MLD RH Bare Head	-	1	Enquire
180	11A7142CP	BRACKET - DAMPER MOUNTING - LH	11A7142CP BRACKET - DAMPER MOUNTING - LH Bare Head	$194.06	1
190	JY53SEHS000027AA	BOLT-M7x80 TORX MALE	JY53SEHS000027AA BOLT-M7x80 TORX MALE ALWAYS REPLACE. DO NOTREUSE	-	6	Enquire
200	JY53SEHS000026AA	BOLT-M7x40 TORX MALE	JY53SEHS000026AA BOLT-M7x40 TORX MALE ALWAYS REPLACE. DO NOTREUSE	-	43	Enquire
210	JY53SEHS000005AA	SCREW M6X25 PAN HEAD	JY53SEHS000005AA SCREW M6X25 PAN HEAD	-	1	Enquire
220	SY9Y8N502BA	CLAMP PLATE ELECTRIC	SY9Y8N502BA CLAMP PLATE ELECTRIC	-	20	Enquire
230	JY53SE6026BA	THREADED PLUG-M14	JY53SE6026BA THREADED PLUG-M14	-	1	Enquire
240	JY53SE6B026BA	SEALING RING-M14	JY53SE6B026BA SEALING RING-M14	-	1	Enquire
250	JY53SE6A267AA	INTAKE CAMSHAFT-LH	JY53SE6A267AA INTAKE CAMSHAFT-LH	-	1	Enquire
260	SY9Y10344AA	M5 SHEAR NUT	SY9Y10344AA M5 SHEAR NUT	-	1	Enquire
270	JY53SE6A266AA	INTAKE CAMSHAFT-RH	JY53SE6A266AA INTAKE CAMSHAFT-RH	-	1	Enquire
280	84105B76FA3	Telematic Communication Box 4	84105B76FA3 Telematic Communication Box 4	-	1	Enquire
290	JY53SE6B501AA	CAM BEARING COVER	JY53SE6B501AA CAM BEARING COVER	-	4	Enquire
300	JY53SEHS000046AA	BOLT-M8X20-TORX	JY53SEHS000046AA BOLT-M8X20-TORX	-	4	Enquire
310	705358	Sealant Loctite 5970, Plenum Cover	705358 Sealant Loctite 5970, Plenum Cover	-	A/R	Enquire
400	JY53SE6507AA	VALVE-INLET	JY53SE6507AA VALVE-INLET	-	16	Enquire
410	JY53SE6505AA	VALVE-EXHAUST	JY53SE6505AA VALVE-EXHAUST	-	16	Enquire
420	JY53SE6513AA	SPRING-VALVE-INLET	JY53SE6513AA SPRING-VALVE-INLET	-	16	Enquire
430	JY53SE6513BA	SPRING-VALVE-EXHAUST	JY53SE6513BA SPRING-VALVE-EXHAUST	-	16	Enquire
440	41007493768	Bracket umbrella holder right	41007493768 Bracket umbrella holder right	-	16	Enquire
450	RY53SE6A517AA	SEAL-VALVE STEM	RY53SE6A517AA SEAL-VALVE STEM	-	16	Enquire
460	JY53SE6A518AA	COLLET-VALVE	JY53SE6A518AA COLLET-VALVE	-	64	Enquire
470	JY53SE6514BA	CAP-VALVE SPRING	JY53SE6514BA CAP-VALVE SPRING Lower	-	32	Enquire
480	JY53SE6514AA	CAP-VALVE SPRING	JY53SE6514AA CAP-VALVE SPRING Upper	-	32	Enquire
490	JY53SE6529AA	ROCKER ARM-VALVE	JY53SE6529AA ROCKER ARM-VALVE	-	16	Enquire
500	JY53SE6C501AA	ROCKER POST	JY53SE6C501AA ROCKER POST	-	32	Enquire
