Cooling System of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Cooling System

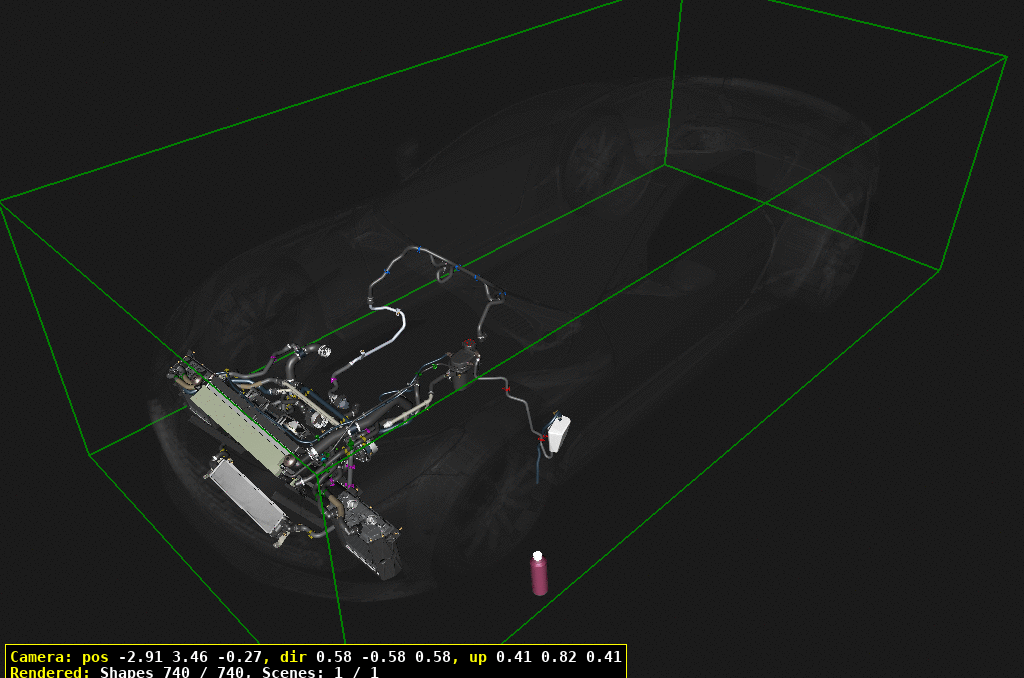

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	RY738D048AA	CNTR RAD ASY AUX	RY738D048AA CNTR RAD ASY AUX	-	1	Enquire
30	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	1	Enquire
40	RY738084AA	BRKT RAD MTNG LH AUX	RY738084AA BRKT RAD MTNG LH AUX	-	1	Enquire
50	RY738083AA	BRKT RAD MTNG RH AUX	RY738083AA BRKT RAD MTNG RH AUX	-	1	Enquire
60	702293	Screw, M6 x 12mm, Pan Head	702293 Screw, M6 x 12mm, Pan Head	-	4	Enquire
70	RY638C477FA	LHS COOLER CASSETTE	RY638C477FA LHS COOLER CASSETTE	-	1	Enquire
80	RY638C477GA	LHS COOLER CASSETTE	RY638C477GA LHS COOLER CASSETTE	-	1	Enquire
90	RY638C477EA	RHS COOLER CASSETTE	RY638C477EA RHS COOLER CASSETTE	-	1	Enquire
100	RY638C477HA	RHS COOLER CASSETTE	RY638C477HA RHS COOLER CASSETTE	-	1	Enquire
110	707146	SCREW-M5 x 16	707146 SCREW-M5 x 16	-	13	Enquire
120	RY53SE18D603AA	AUX HT EXCH ASSY	RY53SE18D603AA AUX HT EXCH ASSY LTS	-	2	Enquire
130	PY83SE6A642AA	ENGINE OIL COOLER	PY83SE6A642AA ENGINE OIL COOLER For Oil Cooler Pipes, seeSection 03-1606	-	1	Enquire
140	RY53SE18D506AA	AUX HT EXCH ASSY	RY53SE18D506AA AUX HT EXCH ASSY HTS	-	1	Enquire
150	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	6	Enquire
160	AG43384993AA	COMP LIMITER	AG43384993AA COMP LIMITER	-	6	Enquire
170	AG4328460AA	ISO BUSH B	AG4328460AA ISO BUSH B	-	6	Enquire
300	RY638333AC	TOP HOSE ASSY	RY638333AC TOP HOSE ASSY	-	1	Enquire
310	RY632922AA	HS CTL AUX HX INLET	RY632922AA HS CTL AUX HX INLET	-	1	Enquire
320	MY83W704533AA	HOSE RETENTION CLIP	MY83W704533AA HOSE RETENTION CLIP	-	4	Enquire
330	KY53W704533AA	HOSE RETENTION CLIP	KY53W704533AA HOSE RETENTION CLIP	-	7	Enquire
340	RY6361J31AC	BOTTOM HS ASY	RY6361J31AC BOTTOM HS ASY	-	1	Enquire
350	RY6361J31BA	BOTTOM HS ASY	RY6361J31BA BOTTOM HS ASY	-	1	Enquire
360	RY639263AA	HS CTL AUX HX OTLET	RY639263AA HS CTL AUX HX OTLET	-	1	Enquire
370	RY638A577AA	HOSE - OUTRUN PUMP	RY638A577AA HOSE - OUTRUN PUMP	-	1	Enquire
380	HY538B552AA	COOLANT RUN ON PUMP	HY538B552AA COOLANT RUN ON PUMP	-	1	Enquire
390	RY638A583AA	BRKT AUX COOL PMP	RY638A583AA BRKT AUX COOL PMP	-	1	Enquire
400	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
420	RY638B566AA	PIP INLT RUN ON PMP	RY638B566AA PIP INLT RUN ON PMP Includes item 320	-	1	Enquire
430	JY53E804707AA	M10 X 20 FIXING	JY53E804707AA M10 X 20 FIXING	-	2	Enquire
440	RY638C350AA	DEGAS M/UP HOS ASY	RY638C350AA DEGAS M/UP HOS ASY Includes item 330	-	1	Enquire
450	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	2	Enquire
460	HY5319B518AE	RADIATOR EXPANSION TANK	HY5319B518AE RADIATOR EXPANSION TANK Includes item 470	-	1	Enquire
470	RY538101AA	PRSR CAP ASY 180KPA	RY538101AA PRSR CAP ASY 180KPA	-	1	Enquire
480	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	2	Enquire
490	HY538B081AA	HOSE SUPPLY TANK	HY538B081AA HOSE SUPPLY TANK	-	1	Enquire
500	6G33TBD2BA	Reservoir, Coolant Expansion	6G33TBD2BA Reservoir, Coolant Expansion	-	1	Enquire
510	703152	SCREW/WSHR M6x20 HEX PILOT CHROME FREE	703152 SCREW/WSHR M6x20 HEX PILOT CHROME FREE	-	2	Enquire
520	HY538N029AA	OVERFLOW HOSE	HY538N029AA OVERFLOW HOSE	-	1	Enquire
530	RY638C363AB	DEGAS HOSE ASSY	RY638C363AB DEGAS HOSE ASSY Includes item 540	-	1	Enquire
540	HY53482907AA	C-CLIP D8MM	HY53482907AA C-CLIP D8MM	-	4	Enquire
550	RY638063AA	BS ENG DGS HOS ASY	RY638063AA BS ENG DGS HOS ASY Includes item 540	-	1	Enquire
560	HY5317Z606AA	CABLE CLIP	HY5317Z606AA CABLE CLIP	-	1	Enquire
570	RY636A960BA	HX OTLT HOSE BRKT	RY636A960BA HX OTLT HOSE BRKT	-	1	Enquire
580	JY53322666AAPK	COOLANT-(1.5 LTR)-10	JY53322666AAPK COOLANT-(1.5 LTR)-10 1 Litre, Pack of 10	-	A/R	Enquire
600	RY639H298AA	WACAC OTLT HS ASY LH	RY639H298AA WACAC OTLT HS ASY LH Includes item 610	-	1	Enquire
610	KY53W704533AA	HOSE RETENTION CLIP	KY53W704533AA HOSE RETENTION CLIP	-	2	Enquire
620	RY6318K582AC	CNT HX OTLET HOS ASY	RY6318K582AC CNT HX OTLET HOS ASY Includes item 630	-	1	Enquire
630	KY53W704533AA	HOSE RETENTION CLIP	KY53W704533AA HOSE RETENTION CLIP	-	2	Enquire
640	RY639H299AA	WACAC INLT HS ASY RH	RY639H299AA WACAC INLT HS ASY RH	-	1	Enquire
650	RY638K101AA	AUX HX OLET H ASY LH	RY638K101AA AUX HX OLET H ASY LH	-	1	Enquire
660	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
670	RY6315167AA	CNTRL HX INLET HOSE	RY6315167AA CNTRL HX INLET HOSE Includes item 680	-	1	Enquire
680	JY53109090AB	CLIP PIPE DOUBLE	JY53109090AB CLIP PIPE DOUBLE	-	1	Enquire
690	JY538K276AA	DGS HOSE ASY LTS	JY538K276AA DGS HOSE ASY LTS	-	1	Enquire
700	RY638K101BA	AUX HX OLET H ASY LH	RY638K101BA AUX HX OLET H ASY LH	-	1	Enquire
710	RY638K101DA	AUX HX OLET H ASY LH	RY638K101DA AUX HX OLET H ASY LH	-	1	Enquire
720	RY638K101CA	AUX HX OLET H ASY LH	RY638K101CA AUX HX OLET H ASY LH Includes item 730	-	1	Enquire
730	MY83W704533AA	HOSE RETENTION CLIP	MY83W704533AA HOSE RETENTION CLIP	-	2	Enquire
740	RY638B591AA	ELEC WATER PUMP	RY638B591AA ELEC WATER PUMP	-	1	Enquire
750	HY538B590AC	ELEC WATER PUMP	HY538B590AC ELEC WATER PUMP	-	1	Enquire
760	HY538N502AA	STRAP BRKT EPUMP	HY538N502AA STRAP BRKT EPUMP	-	2	Enquire
770	KY638N501AA	BASE BRKT EPUMP LHS	KY638N501AA BASE BRKT EPUMP LHS	-	1	Enquire
780	KY638N503AA	BASE BRKT EPUMP RHS	KY638N503AA BASE BRKT EPUMP RHS	-	1	Enquire
790	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	6	Enquire
800	RY638K101EA	RES LT OLET H ASY LH	RY638K101EA RES LT OLET H ASY LH Includes item 730	-	1	Enquire
900	RY6318D334AB	HT INLT HOS ASY LH	RY6318D334AB HT INLT HOS ASY LH LHD	-	1	Enquire
910	JY5318D359AB	HT OTLT HOS ASY LHD	JY5318D359AB HT OTLT HOS ASY LHD LHD	-	1	Enquire
920	HY53359568AA	C CLIP D23MM	HY53359568AA C CLIP D23MM	-	5	Enquire
930	RY6318D334BB	HT INLT HOS ASY RH	RY6318D334BB HT INLT HOS ASY RH RHD	-	1	Enquire
940	JY5318D359BB	HT OTLT HOS ASY RH	JY5318D359BB HT OTLT HOS ASY RH RHD	-	1	Enquire
1000	RY638005AB	CNTRL HX ASSY HTS	RY638005AB CNTRL HX ASSY HTS High Temperature System	-	1	Enquire
1010	HY534190AA	CONTROL HEAT EXCHANGE LH	HY534190AA CONTROL HEAT EXCHANGE LH Low Temperature System	-	1	Enquire
1020	HY537A095AA	HT EXCH ASSY TOC	HY537A095AA HT EXCH ASSY TOC	-	1	Enquire
1030	KY6361J05AA	SEALING FOAM	KY6361J05AA SEALING FOAM	-	1	Enquire
1040	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
1050	HY538C607AB	CNTRL FAN MOD ASSY	HY538C607AB CNTRL FAN MOD ASSY	-	1	Enquire
1060	KY53W704533AA	HOSE RETENTION CLIP	KY53W704533AA HOSE RETENTION CLIP	-	4	Enquire
1070	HY53482907AA	C-CLIP D8MM	HY53482907AA C-CLIP D8MM	-	2	Enquire
1080	HY5390781AA	PATCH BOLT&WSHR	HY5390781AA PATCH BOLT&WSHR	-	2	Enquire
1090	HY53F8B170AA	SL CNTRL RUB CL MOD	HY53F8B170AA SL CNTRL RUB CL MOD	-	2	Enquire
1100	HY538N301AA	GOP RUB SL	HY538N301AA GOP RUB SL 400mm	-	2	Enquire
1110	KY638C477AA	SEALING FOAM LWR	KY638C477AA SEALING FOAM LWR	-	1	Enquire
1120	HY536C681AA	ISOLATOR CONTROL COOLER MODULE	HY536C681AA ISOLATOR CONTROL COOLER MODULE	-	4	Enquire
