Fuel Injection System

Aston Martin GT DB12 (2024-

Find Your Part

Aston Martin GT DB12 (2024- - Fuel Injection System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

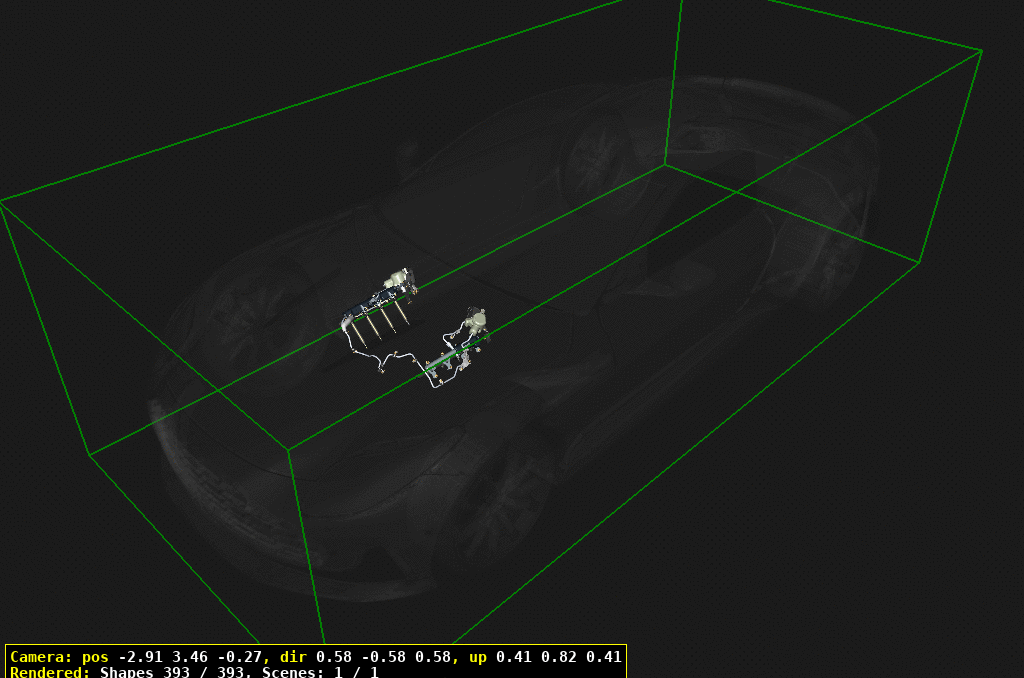

Fuel Injection System of Aston Martin Aston Martin GT DB12 (2024- Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
20 JY53SE9D376AB
HP FUEL PUMP 		- 2 Enquire
30 JY53SE9400AA
ROLLER TAPPET
Fuel Pump 		- 2 Enquire
40 JY53SE9276AA
O RING SEAL 		- 2 Enquire
50 JY53SEHS000028AA
SCREW M7X20 PAN HEAD 		- 4 Enquire
60 JY53SE9A397AA
HEATSHIELD-FUEL PUMP 		- 1 Enquire
70 JY53SE9A397BA
HEATSHIELD-FUEL PUMP 		- 1 Enquire
80 JY53SEHS000002AA
SCREW M6X12 PAN HEAD 		- 2 Enquire
90 JY53SEHS000017AA
BOLT M6X16 TORX MALE 		- 8 Enquire
100 RY53SE9F911AA
LOW PRESSURE PIPE-LH
Includes items 110 & 120 		- 1 Enquire
110 JY53SE19D702AA
CAP-SCHRADER VALVE
Schrader 		- 1 Enquire
120 JY53SE9H321AA
FUEL PRESSURE VALVE
Schrader 		- 1 Enquire
130 RY53SE9F911BA
LOW PRESSURE PIPE 		- 1 Enquire
140 RY53SE9F911CA
LOW PRESSURE PIPE-RH 		- 1 Enquire
150 MY83SE9G886AB
FUEL PIPE-LH-HP 		- 1 Enquire
160 RY53SE9G886AA
FUEL PIPE-RH-HP 		- 1 Enquire
170 RY53SE9S441AA
FUEL RAIL 		- 2 Enquire
190 JY53SE9G756AA
FUEL TEMP AND PRESS 		- 2 Enquire
200 JY53SE9F593AC
FUEL INJECTOR ASSY 		- 8 Enquire
210 JY53SE37H770AA
KIT-INJECTOR SEALS
Always Replace, NeverReuse 		- 8 Enquire
220 JY53SEHS000017AA
BOLT M6X16 TORX MALE 		- 16 Enquire
230 JY53SE2L202CA
CLAMP-FUEL LINE 		- 11 Enquire
240 JY53SEHS000030AA
SCREW-M6x16 TORX PAN 		- 8 Enquire
250 RY53SE9D440AA
COVER-FUEL RAIL-RH 		- 1 Enquire
260 RY53SE9D440BA
COVER-FUEL RAIL-LHR 		- 1 Enquire
270 RY53SE9D440CA
COVER-FUEL RAIL-RHR 		- 1 Enquire
280 RY53SE9D440DA
COVER-FUEL PUMP-LH 		- 1 Enquire
290 MY63SE9D440DA
COVER-FUEL PUMP-RH 		- 1 Enquire
300 MY83SE9294BA
RETAINER-FUEL LINE 		- 1 Enquire
310 SY9Y31112CCW
RR QTR UPR ASY RH 		- 1 Enquire
320 JY53SEHS000048AA
SCREW M6x16 PAN HEAD 		- 15 Enquire
330 MY83SEHC000066AA
HOSE CLIP 		- 2 Enquire
