Power Unit of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Power Unit

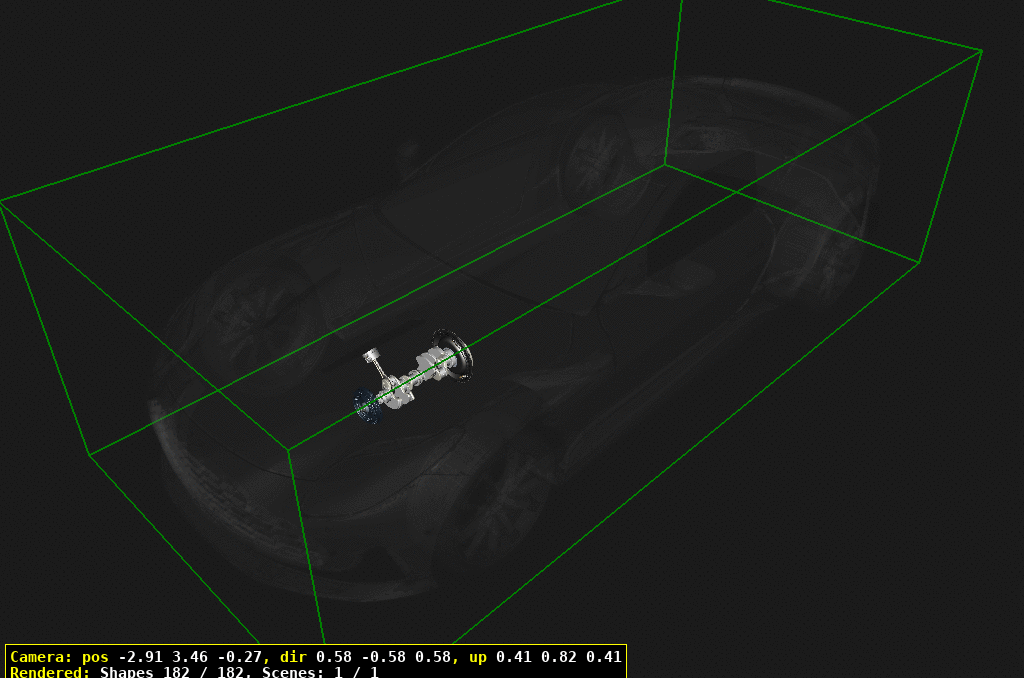

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	RY53SE6300AA	CRANKSHAFT ASSEMBLY	RY53SE6300AA CRANKSHAFT ASSEMBLY Includes items 30 & 40	-	1	Enquire
30	JY53SE7K578AA	DOWEL PIN	JY53SE7K578AA DOWEL PIN Front	-	1	Enquire
40	JY53SE7K578BA	DOWEL PIN	JY53SE7K578BA DOWEL PIN Rear	-	1	Enquire
50	HY53SE6A341AA	WASHER-THRUST-CRANK	HY53SE6A341AA WASHER-THRUST-CRANK	-	2	Enquire
60	HY53SE6A341BA	WASHER-THRUST-CRANK	HY53SE6A341BA WASHER-THRUST-CRANK	-	2	Enquire
70	55060661	LH BACKREST UPHOLSTERY	55060661 LH BACKREST UPHOLSTERY Outer Locations	-	2	Enquire
80	JY53SE6333BA	MAIN BEARING-UPPER	JY53SE6333BA MAIN BEARING-UPPER Inner Locations	-	3	Enquire
90	55062037	RH CUSHION UPHOLSTERY	55062037 RH CUSHION UPHOLSTERY Outer Locations	-	2	Enquire
100	55073836	RH THIRD BRAKE LIGHT TRIM	55073836 RH THIRD BRAKE LIGHT TRIM Inner Locations	-	3	Enquire
200	JY53SE6316AA	DRIVE PULLEY-GROOVED	JY53SE6316AA DRIVE PULLEY-GROOVED	-	1	Enquire
210	JY53SE218104AA	SPACER WASHER	JY53SE218104AA SPACER WASHER	-	1	Enquire
220	JY53SE6K340AA	BOLT-FLANGED HEAD	JY53SE6K340AA BOLT-FLANGED HEAD	-	1	Enquire
300	RY53SE6K109AA	PISTON ASSEMBLY	RY53SE6K109AA PISTON ASSEMBLY Includes Rings, Pin, andClips	-	8	Enquire
310	55073837	LH THIRD BRAKE LIGHT TRIM	55073837 LH THIRD BRAKE LIGHT TRIM	-	16	Enquire
320	JY53SE6200AA	CONNECTING ROD ASSY	JY53SE6200AA CONNECTING ROD ASSY Includes Small EndBearing	-	8	Enquire
330	HY53SE6214AA	BOLT-CONNECTING ROD	HY53SE6214AA BOLT-CONNECTING ROD ALWAYS REPLACE. DO NOTRE-USE	-	16	Enquire
340	22AB727GP	SEAL BONNET MARGIN MLD RH	22AB727GP SEAL BONNET MARGIN MLD RH Conrod	-	8	Enquire
400	JY53SE6375AA	FLYWHEEL & RING GEAR	JY53SE6375AA FLYWHEEL & RING GEAR	-	1	Enquire
410	JY53SE6A366AA	SPACER WASHER	JY53SE6A366AA SPACER WASHER Crankshaft Side	-	1	Enquire
420	LY6310089BA	RC BRG OTR BRNG	LY6310089BA RC BRG OTR BRNG	-	1	Enquire
430	RY536375AA	FLY WHEEL ASSEMBLY	RY536375AA FLY WHEEL ASSEMBLY	-	1	Enquire
440	LY63611B74AC	BOLT-M10x1.00x28.5	LY63611B74AC BOLT-M10x1.00x28.5 ALWAYS REPLACE. DO NOTRE-USE	-	8	Enquire
450	705355	Bolt, M10 x 25	705355 Bolt, M10 x 25 ALWAYS REPLACE. DO NOTRE-USE	-	6	Enquire
460	HY536W366AE	DRIVELINE COUPLING	HY536W366AE DRIVELINE COUPLING Remove Transit Bolt(s) onInstallation	-	1	Enquire
470	700036S447	Bolt, M8 x 1.25 x 25, Hex Flg Hd	700036S447 Bolt, M8 x 1.25 x 25, Hex Flg Hd ALWAYS REPLACE. DO NOTRE-USE	-	6	Enquire
480	1R120210061	Bearing Assembly Pilot ARRIVING SOON	1R120210061 Bearing Assembly Pilot ARRIVING SOON	-	1	Enquire
490	JY53SE6A366BA	SPACER WASHER	JY53SE6A366BA SPACER WASHER Transmission Side	-	1	Enquire
