Aston Martin GT DB12 (2024- - Engine Electrics

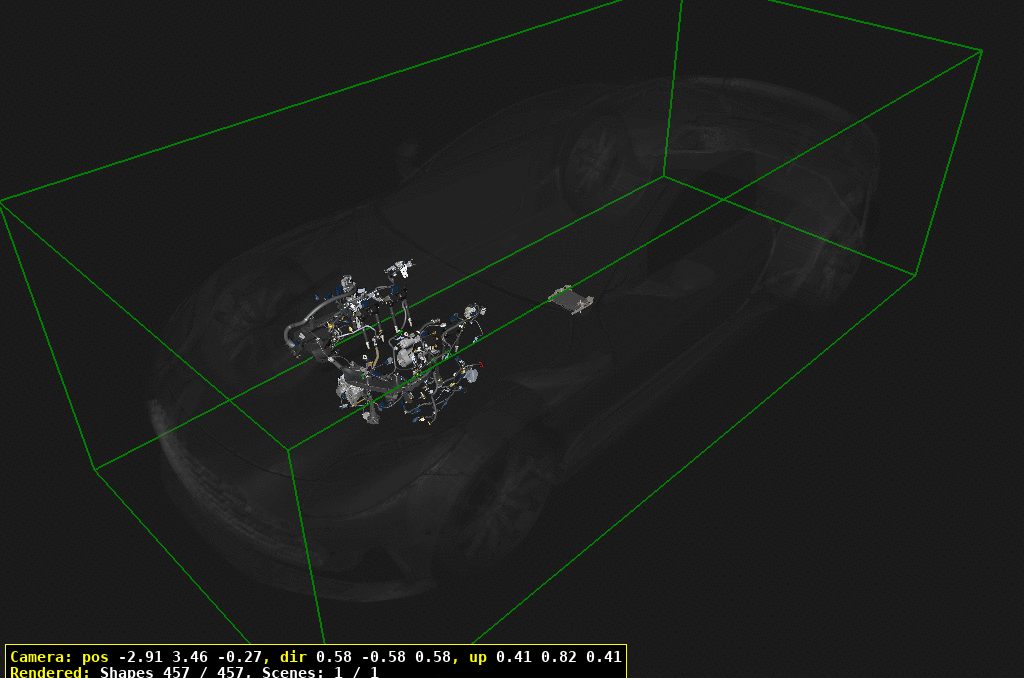

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	JY53SE11000AA	STARTER MOTOR ASSY	JY53SE11000AA STARTER MOTOR ASSY	-	1	Enquire
30	JY53SE6366AA	COVER-STARTER MOTOR	JY53SE6366AA COVER-STARTER MOTOR	-	1	Enquire
40	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
50	JY5311K195BA	CVR-STR MTR GR	JY5311K195BA CVR-STR MTR GR	-	1	Enquire
60	MY8314A163AA	ANTI-ROTATION CLIP	MY8314A163AA ANTI-ROTATION CLIP	-	1	Enquire
70	707128	BOLT-M10 x 85 HEX	707128 BOLT-M10 x 85 HEX	-	2	Enquire
100	MY83SE10300AA	ALTERNATOR	MY83SE10300AA ALTERNATOR	-	1	Enquire
110	MY83SE10239AA	BRACKET	MY83SE10239AA BRACKET	-	1	Enquire
120	MY83SEHS000070AA	SCREW M8X90	MY83SEHS000070AA SCREW M8X90	-	2	Enquire
130	JY53SEHS000039AA	BOLT-M8X30-HEX	JY53SEHS000039AA BOLT-M8X30-HEX	-	3	Enquire
200	HY53SE12405AB	SPARK PLUG ARRIVING SOON	HY53SE12405AB SPARK PLUG ARRIVING SOON	-	8	Enquire
210	MY83SE12A366AB	COIL PACK - DOUBLE	MY83SE12A366AB COIL PACK - DOUBLE Includes item 40	-	4	Enquire
220	MY83SE12A366CA	CONNECTING PLUG	MY83SE12A366CA CONNECTING PLUG	-	8	Enquire
230	JY53SEHS000019AA	BOLT M6X25 TORX MALE	JY53SEHS000019AA BOLT M6X25 TORX MALE	-	12	Enquire
300	LY63SE12A650AA	ECM	LY63SE12A650AA ECM	-	1	Enquire
310	JY5312B695BA	BOSCH ECU BRACKET	JY5312B695BA BOSCH ECU BRACKET	-	1	Enquire
320	JY5312B695AC	BOSCH ECU BRACKET	JY5312B695AC BOSCH ECU BRACKET	-	1	Enquire
340	702293	Screw, M6 x 12mm, Pan Head	702293 Screw, M6 x 12mm, Pan Head	-	4	Enquire
350	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	7	Enquire
360	PY83SE12B684AA	MODULE-POWERTRAIN	PY83SE12B684AA MODULE-POWERTRAIN CPC	-	1	Enquire
370	707786	SCREW-M5 x 12 PN BLK	707786 SCREW-M5 x 12 PN BLK	-	2	Enquire
380	RY5318D821AB	CPC MNTG BRKT	RY5318D821AB CPC MNTG BRKT LHD	-	1	Enquire
381	RY5318D820AB	CPC MNTG BRKT	RY5318D820AB CPC MNTG BRKT RHD	-	1	Enquire
390	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	2	Enquire
420	RY53SE18D820AA	BRACKET-ECM	RY53SE18D820AA BRACKET-ECM Includes items 430 & 440	-	1	Enquire
430	JY53SE9G823AA	MOUNTING RUBBER	JY53SE9G823AA MOUNTING RUBBER	-	4	Enquire
440	JY53SE9E393AA	MOUNTING RUBBER	JY53SE9E393AA MOUNTING RUBBER	-	2	Enquire
450	JY53SEHS000005AA	SCREW M6X25 PAN HEAD	JY53SEHS000005AA SCREW M6X25 PAN HEAD	-	3	Enquire
460	RY53SE18K582AA	COOLANT PIPE	RY53SE18K582AA COOLANT PIPE	-	1	Enquire
470	RY53SE18K582BA	HOSE ASSEMBLY	RY53SE18K582BA HOSE ASSEMBLY	-	1	Enquire
480	SY9Y2L202NA	COIL HOSE RIGHT BRCT	SY9Y2L202NA COIL HOSE RIGHT BRCT	-	1	Enquire
490	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	2	Enquire
600	MY83SE12A699AA	SENSOR-ENGINE KNOCK	MY83SE12A699AA SENSOR-ENGINE KNOCK	-	1	Enquire
610	HY53SE12A699AA	ENGINE KNOCK SENSOR	HY53SE12A699AA ENGINE KNOCK SENSOR	-	1	Enquire
620	MY63SE6C624AA	SENSOR-OIL LEVEL	MY63SE6C624AA SENSOR-OIL LEVEL	-	1	Enquire
630	JY53SEHS000019AA	BOLT M6X25 TORX MALE	JY53SEHS000019AA BOLT M6X25 TORX MALE	-	3	Enquire
640	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	1	Enquire
650	JY53SE6C315AA	SENSOR-CRANK POSTN	JY53SE6C315AA SENSOR-CRANK POSTN	-	1	Enquire
660	HY53SE12A699BA	KNOCK SENSOR-NO LEAD	HY53SE12A699BA KNOCK SENSOR-NO LEAD	-	2	Enquire
670	JY53SEHS000002AA	SCREW M6X12 PAN HEAD	JY53SEHS000002AA SCREW M6X12 PAN HEAD	-	1	Enquire
680	NY83SEHS000030AA	SCREW M6X12	NY83SEHS000030AA SCREW M6X12	-	12	Enquire
690	JY53SEHN000002AA	NUT - HEX HEAD - M6	JY53SEHN000002AA NUT - HEX HEAD - M6	-	2	Enquire
700	JY53SE12K350AA	BRACKET-SENSOR	JY53SE12K350AA BRACKET-SENSOR	-	1	Enquire
710	JY53SE6B297AA	MAGNET-VCT ACTUATOR	JY53SE6B297AA MAGNET-VCT ACTUATOR Includes item 720	-	4	Enquire
720	JY53SE6K292AA	SEAL-ELECTROMAGNET	JY53SE6K292AA SEAL-ELECTROMAGNET	-	4	Enquire
730	RY53SE9J460AA	VACUUM TRANSDUCER	RY53SE9J460AA VACUUM TRANSDUCER	-	1	Enquire
740	JY53SE12A648AA	SENSOR-TEMPERATURE	JY53SE12A648AA SENSOR-TEMPERATURE Includes item 750	-	1	Enquire
750	JY53SE6734CA	SEALING RING	JY53SE6734CA SEALING RING	-	1	Enquire
760	JY53SE12A648BA	OIL TEMP SENSOR	JY53SE12A648BA OIL TEMP SENSOR	-	1	Enquire
770	JY53SE6734BA	SEALING WASHER-OIL	JY53SE6734BA SEALING WASHER-OIL	-	1	Enquire
780	JY53SEHS000010AA	SCREW M8X35 PAN HEAD	JY53SEHS000010AA SCREW M8X35 PAN HEAD	-	4	Enquire
790	JY53SE12K073AA	SENSOR-CAM POSTN	JY53SE12K073AA SENSOR-CAM POSTN	-	4	Enquire
800	JY53SEHS000015AA	SCREW M6X14 TORX HD	JY53SEHS000015AA SCREW M6X14 TORX HD	-	4	Enquire
900	RY53SE12B637AA	ENGINE HARNESS	RY53SE12B637AA ENGINE HARNESS	-	1	Enquire
910	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	9	Enquire
920	RY53SE14A004AA	BRACKET	RY53SE14A004AA BRACKET	-	1	Enquire
930	RY53SE12B637BA	LINK HARNESS	RY53SE12B637BA LINK HARNESS	-	1	Enquire
940	MY83SE12B637DA	HARNESS	MY83SE12B637DA HARNESS	-	1	Enquire
950	MY63SE12B637AB	WIRING HARNESS-ENG	MY63SE12B637AB WIRING HARNESS-ENG	-	1	Enquire
960	MY83SE12B695AA	BRACKET LH	MY83SE12B695AA BRACKET LH	-	1	Enquire
970	71215B71357	Type plate	71215B71357 Type plate	-	1	Enquire
980	702293	Screw, M6 x 12mm, Pan Head	702293 Screw, M6 x 12mm, Pan Head	-	1	Enquire
990	RY53SE42596AA	SPRING CLIP	RY53SE42596AA SPRING CLIP	-	4	Enquire
