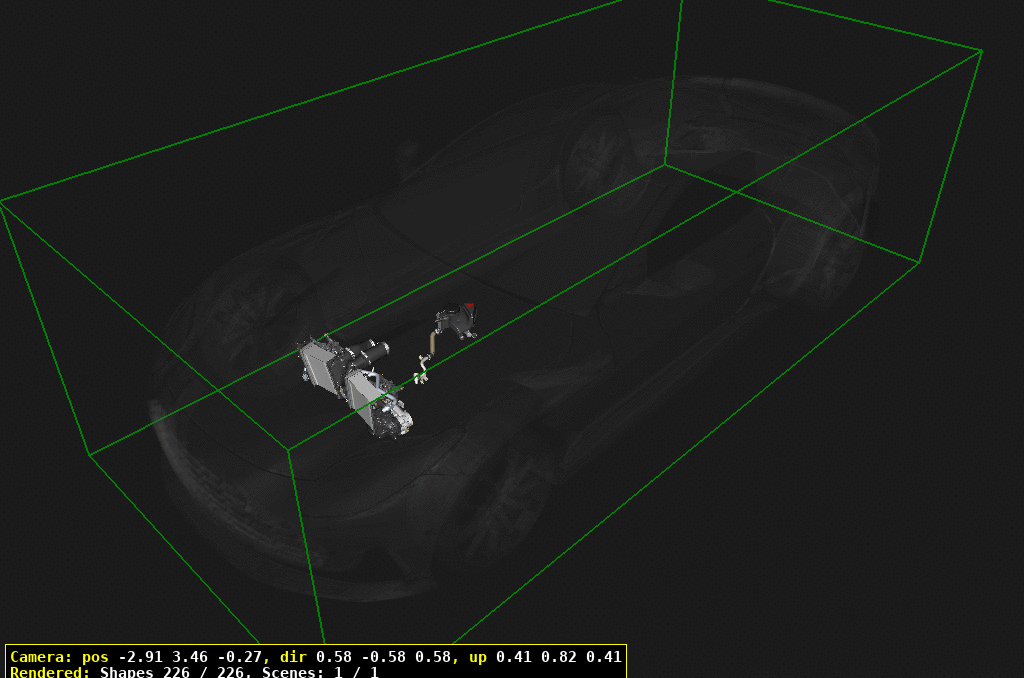

Air Cooler of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Air Cooler

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	RY53SE6K775AA	CHARGE AIR COOLER-LH	RY53SE6K775AA CHARGE AIR COOLER-LH Includes items 40-130,320 & 330	-	1	Enquire
30	RY53SE6K775BB	CHARGE AIR COOLER-RH	RY53SE6K775BB CHARGE AIR COOLER-RH Includes items 50-140,340 & 350	-	1	Enquire
40	SY9Y3N239AA	BRKT ASY DRVS PD LHD	SY9Y3N239AA BRKT ASY DRVS PD LHD	-	1	Enquire
50	RY53SE9E926AA	THROTTLE BODY	RY53SE9E926AA THROTTLE BODY	-	2	Enquire
60	JY53SE12B676AA	PRESSURE SENSOR-WCAC	JY53SE12B676AA PRESSURE SENSOR-WCAC	-	2	Enquire
70	JY53SE8590AA	O RING-WCAC	JY53SE8590AA O RING-WCAC	-	4	Enquire
80	MY83SE5867827AA	BALL STUD MOUNT	MY83SE5867827AA BALL STUD MOUNT	-	3	Enquire
90	JY53SEHS000016AA	BOLT M6X16 TORX MALE	JY53SEHS000016AA BOLT M6X16 TORX MALE	-	4	Enquire
100	JY53SE8287BA	CLAMP-PIPE TO WCAC	JY53SE8287BA CLAMP-PIPE TO WCAC	-	4	Enquire
110	JY53SEHS000012AA	SCREW M6X20 PAN HEAD	JY53SEHS000012AA SCREW M6X20 PAN HEAD	-	4	Enquire
120	MY83SEHS000064AA	SCREW M6X45	MY83SEHS000064AA SCREW M6X45	-	8	Enquire
130	RY53SEF9793AA	SEAL-THROTTLE BODY	RY53SEF9793AA SEAL-THROTTLE BODY	-	2	Enquire
140	SY9Y04317FCW	PASS OUTBRD PAD	SY9Y04317FCW PASS OUTBRD PAD	-	1	Enquire
200	RY53SE6K767BA	BRACKET-LOWER-LH	RY53SE6K767BA BRACKET-LOWER-LH Includes item 220	-	1	Enquire
210	RY53SE6K767CA	BRACKET-LOWER-RH	RY53SE6K767CA BRACKET-LOWER-RH Includes item 220	-	1	Enquire
220	SY9Y16F141AB	BRKT HV BATT RR RHS	SY9Y16F141AB BRKT HV BATT RR RHS	-	2	Enquire
230	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
240	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	6	Enquire
250	RY53SE2976AA	HOSE-INLET-LH	RY53SE2976AA HOSE-INLET-LH	-	1	Enquire
260	RY53SE2976BA	HOSE-INLET-RH	RY53SE2976BA HOSE-INLET-RH	-	1	Enquire
280	83305B694B5	Thread cleaner	83305B694B5 Thread cleaner	-	5	Enquire
290	RY53SE9K308AA	HOSE ASSEMBLY	RY53SE9K308AA HOSE ASSEMBLY	-	1	Enquire
300	RY53SE6K767DA	BRACKET-UPPER	RY53SE6K767DA BRACKET-UPPER	-	1	Enquire
310	RY538A583AA	WCAC COOLANT PIP ASS	RY538A583AA WCAC COOLANT PIP ASS	-	1	Enquire
320	SY9Y20123RC	DOOR ASSY LH	SY9Y20123RC DOOR ASSY LH	-	1	Enquire
330	SY9Y5494AA	FRONT ARB	SY9Y5494AA FRONT ARB	-	1	Enquire
340	83215B5A212	Group LL-04 0W-30	83215B5A212 Group LL-04 0W-30	-	1	Enquire
350	RY53SE8592BA	PIPE-COOLER FEED RH	RY53SE8592BA PIPE-COOLER FEED RH	-	1	Enquire
400	RY53SE19B518AA	SURGE TANK	RY53SE19B518AA SURGE TANK Includes items 410 & 420	-	1	Enquire
410	JY53SE8101AA	CAP-COOLANT TANK	JY53SE8101AA CAP-COOLANT TANK	-	1	Enquire
420	JY53SE9G823AA	MOUNTING RUBBER	JY53SE9G823AA MOUNTING RUBBER	-	2	Enquire
430	RY53SE18K582CB	HOSE ASSEMBLY	RY53SE18K582CB HOSE ASSEMBLY	-	1	Enquire
440	JY53SEHS000005AA	SCREW M6X25 PAN HEAD	JY53SEHS000005AA SCREW M6X25 PAN HEAD	-	1	Enquire
450	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	1	Enquire
460	RY53SE6K767AA	BRACKET	RY53SE6K767AA BRACKET	-	1	Enquire
470	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	2	Enquire
