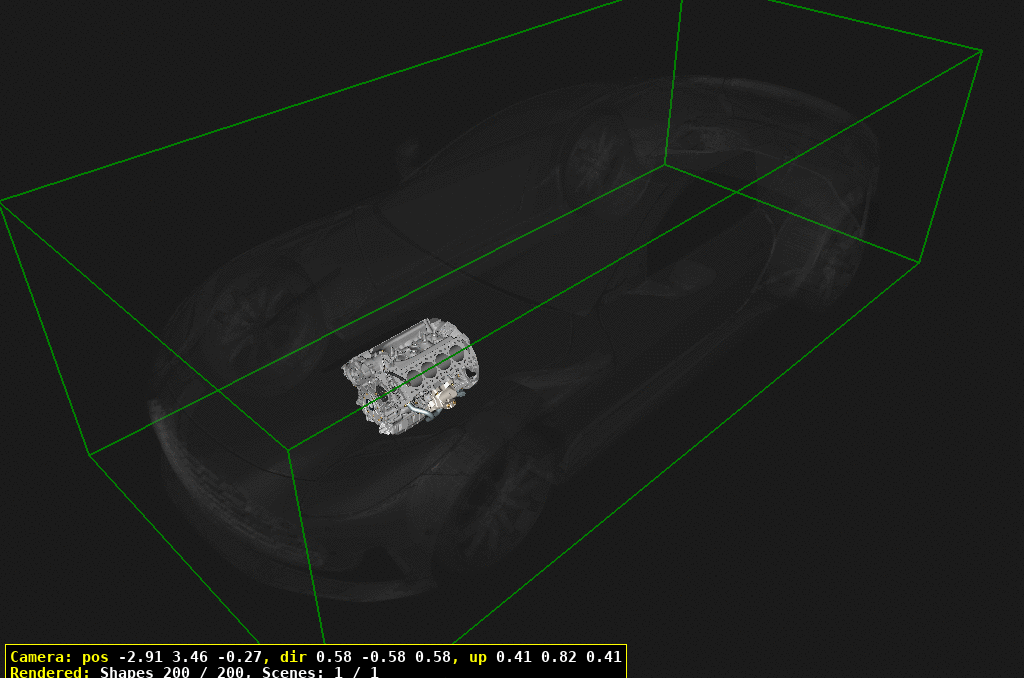

Engine Structure of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Engine Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	RY53SE6007AA	ENGINE ASSEMBLY V8	RY53SE6007AA ENGINE ASSEMBLY V8	-	1	Enquire
20	11AA108CP	BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706	11AA108CP BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706	$2.92	1
30	JY53SE6026BA	THREADED PLUG-M14	JY53SE6026BA THREADED PLUG-M14	-	3	Enquire
40	JY53SE6B026BA	SEALING RING-M14	JY53SE6B026BA SEALING RING-M14 ALWAYS REPLACE. DO NOTREUSE	-	3	Enquire
50	JY53SEHS000031AA	SCREW-M8X35-HEX	JY53SEHS000031AA SCREW-M8X35-HEX ALWAYS REPLACE. DO NOTREUSE	-	9	Enquire
60	12365A48F71	Sealing kit, elec machine, electronics	12365A48F71 Sealing kit, elec machine, electronics ALWAYS REPLACE. DO NOTREUSE	-	1	Enquire
70	JY53SEHS000024AA	BOLT M10X90 TORX MAL	JY53SEHS000024AA BOLT M10X90 TORX MAL ALWAYS REPLACE. DO NOTREUSE	-	10	Enquire
80	JY53SEHS000023AA	BOLT-M8x93 TORX MALE	JY53SEHS000023AA BOLT-M8x93 TORX MALE ALWAYS REPLACE. DO NOTREUSE	-	10	Enquire
90	JY53SEHS000047AA	BOLT-M8X20-MTORX	JY53SEHS000047AA BOLT-M8X20-MTORX	-	4	Enquire
100	JY53SE6N078AA	OIL NOZZLE-PISTON	JY53SE6N078AA OIL NOZZLE-PISTON	-	4	Enquire
110	MY83SE72058BA	DRAIN PLUG-FT AXLE	MY83SE72058BA DRAIN PLUG-FT AXLE	-	1	Enquire
120	RY53SE6B026AA	SEALING RING	RY53SE6B026AA SEALING RING	-	1	Enquire
130	JY53SEHS000004AA	SCREW M6X20 PAN HEAD	JY53SEHS000004AA SCREW M6X20 PAN HEAD	-	2	Enquire
140	JY53SE6616AA	ACCESS PLATE-ENGINE	JY53SE6616AA ACCESS PLATE-ENGINE	-	1	Enquire
150	JY53SE87066AA	SEAL-ACCESS PLATE	JY53SE87066AA SEAL-ACCESS PLATE	-	1	Enquire
160	MY83SE6K318BA	CRANK SEAL-REAR	MY83SE6K318BA CRANK SEAL-REAR	-	1	Enquire
170	JY53SEHS000001AA	SCREW M6X10 PAN HEAD	JY53SEHS000001AA SCREW M6X10 PAN HEAD	-	13	Enquire
180	JY53SEHS000002AA	SCREW M6X12 PAN HEAD	JY53SEHS000002AA SCREW M6X12 PAN HEAD	-	1	Enquire
190	RY63120609VA	DUP OWN TAIWAN 24MY	RY63120609VA DUP OWN TAIWAN 24MY	-	1	Enquire
200	NY83SEHS000022AA	DOWEL PIN M6X12	NY83SEHS000022AA DOWEL PIN M6X12	-	4	Enquire
210	RY53SEHP000001AA	DOWEL PIN	RY53SEHP000001AA DOWEL PIN	-	2	Enquire
220	JY53SEHS000001AA	SCREW M6X10 PAN HEAD	JY53SEHS000001AA SCREW M6X10 PAN HEAD	-	9	Enquire
230	JY53SE6700AA	CRANK SEAL-FRONT	JY53SE6700AA CRANK SEAL-FRONT	-	1	Enquire
240	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	2	Enquire
250	MY83SE6D080AA	LID - CHAIN CASE	MY83SE6D080AA LID - CHAIN CASE	-	1	Enquire
260	MY83SEHP000055AA	CYLINDRICAL PIN	MY83SEHP000055AA CYLINDRICAL PIN	-	2	Enquire
300	JY53SE6675AC	SUMP-ENGINE-ALLOY	JY53SE6675AC SUMP-ENGINE-ALLOY	-	1	Enquire
310	JY53SE6730AA	PLUG OIL DRAIN	JY53SE6730AA PLUG OIL DRAIN	-	1	Enquire
320	JY53SE6734AA	SEALING RING	JY53SE6734AA SEALING RING ALWAYS REPLACE. DO NOTREUSE	-	1	Enquire
330	JY53SE6A832AA	KIT-OIL FILTER	JY53SE6A832AA KIT-OIL FILTER Includes item 340	-	1	Enquire
340	JY53SE6744AA	OIL FILTER ARRIVING SOON	JY53SE6744AA OIL FILTER ARRIVING SOON	-	1	Enquire
350	JY53SEHS000019AA	BOLT M6X25 TORX MALE	JY53SEHS000019AA BOLT M6X25 TORX MALE	-	19	Enquire
360	JY53SE17443AA	SEAL-SUMP TO BLOCK	JY53SE17443AA SEAL-SUMP TO BLOCK	-	1	Enquire
370	HY53SE9T515AB	OIL LINE TO SUMP	HY53SE9T515AB OIL LINE TO SUMP Includes item 380& 390	-	1	Enquire
380	MY83SE00815AA	MOULDED SEAL	MY83SE00815AA MOULDED SEAL	-	1	Enquire
390	JY53SE00815EA	O RING SEAL	JY53SE00815EA O RING SEAL	-	1	Enquire
500	JY53SE6031AA	ENGINE MOUNT-LH	JY53SE6031AA ENGINE MOUNT-LH Includes item 530	-	1	Enquire
510	JY53SE6030AA	ENGINE MOUNT-RH	JY53SE6030AA ENGINE MOUNT-RH Includes item 530	-	1	Enquire
520	JY53SEHS000031AA	SCREW-M8X35-HEX	JY53SEHS000031AA SCREW-M8X35-HEX	-	8	Enquire
530	JY53SEHS000022AA	BOLT M8X40 TORX MALE	JY53SEHS000022AA BOLT M8X40 TORX MALE	-	4	Enquire
