Oil And Water Circulation

Aston Martin GT DB12 (2024-

Find Your Part

Aston Martin GT DB12 (2024- - Oil and Water Circulation

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

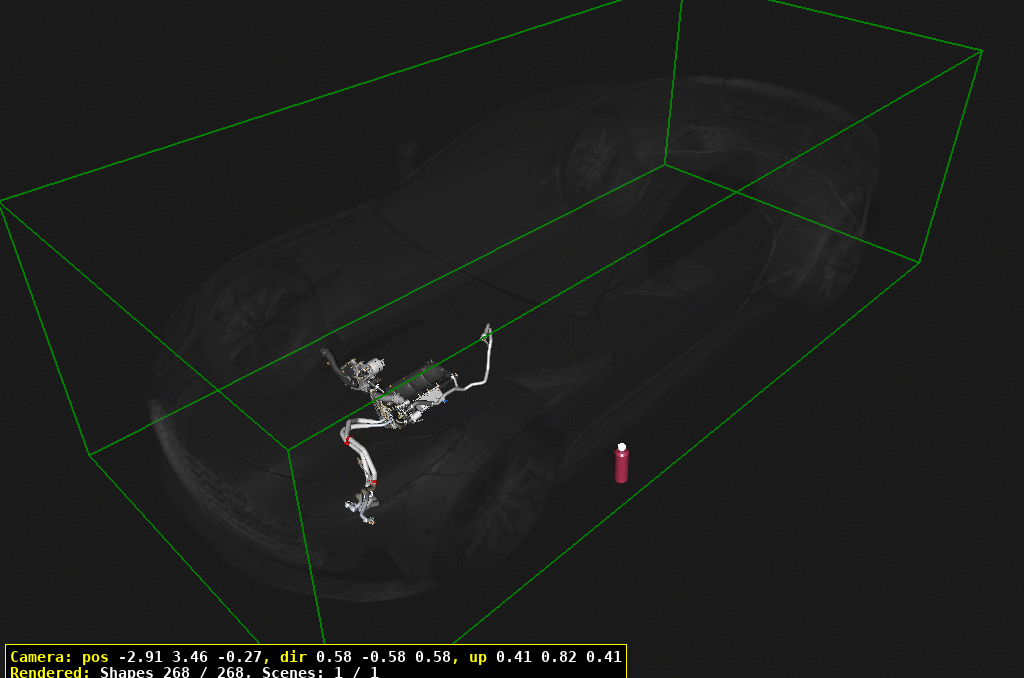

Oil and Water Circulation of Aston Martin Aston Martin GT DB12 (2024- Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
20 RY53SE6621AB
OIL PUMP-ENGINE
Includes item 210 & 220 		- 1 Enquire
30 MY83SEHS000063AA
FITTED BOLT 		- 2 Enquire
40 JY53SEHS000035AA
SCREW-M8X80-TORX 		- 1 Enquire
50 55058436
OWNER'S MANUAL
Includes item 200 		- 1 Enquire
60 JY53SE6A895AA
CHAIN-OIL PUMP 		- 1 Enquire
70 MY83SE6L266AA
TENSIONER-CHAIN 		- 1 Enquire
80 JY53SEHS000017AA
BOLT M6X16 TORX MALE 		- 5 Enquire
90 JY53SE108231AA
PIVOT BOLT 		- 1 Enquire
100 MY83SE6686AA
SPACER PLATE-PUMP
Includes item 110 		- 1 Enquire
110 JY53SE17443BA
SHAPED SEAL-OIL PUMP 		- 2 Enquire
120 JY53SE6A642AA
OIL COOLER-ENGINE
Engine Mounted 		- 1 Enquire
130 JY53SEHS000004AA
SCREW M6X20 PAN HEAD 		- 6 Enquire
140 JY53SE61J17AB
SEALING PLATE-COOLER 		- 1 Enquire
150 JY53SE6L635AA
THERMOSTAT- OIL 		- 1 Enquire
160 JY53SE6670AA
SPRING-OIL VALVE 		- 1 Enquire
170 RY53SE6L635AB
HOUSING-THERMOSTAT
Includes item 180 		- 1 Enquire
180 JY53SE61J17BA
O RING- THERMOSTAT 		- 1 Enquire
190 JY53SEHS000004AA
SCREW M6X20 PAN HEAD 		- 2 Enquire
200 JY53SE00815EA
O RING SEAL 		- 1 Enquire
210 HY53SE6C880AA
SOLENOID VALVE-OIL 		- 1 Enquire
220 JY53SEHS000011AA
SCREW M4 PAN HEAD 		- 2 Enquire
230 RY636B747AB
ENG OIL COOL HS ASY
Includes items 250-270 		- 1 Enquire
240 RY636B748AB
ENG OIL COOL HS ASY
Includes items 250-270 		- 1 Enquire
250 RY63SE6C610AA
O RING 21.3 x 2.54
1 per hose 		- 2 Enquire
260 RY63SE6C610BA
O RING 16.8 x 4
1 per hose 		- 2 Enquire
270 RY63SE6C610CA
O RING 16.95 x 2
1 per hose 		- 2 Enquire
310 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 4 Enquire
320 JY53109090AB
CLIP PIPE DOUBLE 		- 3 Enquire
330 RY632L202AA
BRACKET OIL LINE 		- 1 Enquire
340 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 1 Enquire
400 JY53SE8K168AA
WATER PUMP ASSEMBLY
Includes items 410,420 		- 1 Enquire
410 JY53SE8507AA
SEAL-WATER PUMP
Large 		- 1 Enquire
420 JY53SE8507BA
SEAL-WATER PUMP
Small 		- 1 Enquire
430 JY53SEHS000048AA
SCREW M6x16 PAN HEAD 		- 2 Enquire
440 MY83SE8A586AB
THERMOSTAT ASSEMBLY
Includes items 600-620 		- 1 Enquire
450 JY53SEHS000005AA
SCREW M6X25 PAN HEAD 		- 11 Enquire
460 RY53SE8274AA
INLET PIPE-WATERPUMP 		- 1 Enquire
470 MY83SE8A592AA
SEALING RING-INLET 		- 1 Enquire
480 JY53SEHS000048AA
SCREW M6x16 PAN HEAD 		- 7 Enquire
490 JY53SEHS000005AA
SCREW M6X25 PAN HEAD 		- 2 Enquire
500 MY83SEHS000064AA
SCREW M6X45 		- 2 Enquire
510 RY53SE8A504AA
PIPE ASSEMBLY 		- 2 Enquire
520 MY83SE18495AA
HEATER CONTROL VALVE 		- 1 Enquire
530 JY53SE8590EA
O RING SEAL 		- 2 Enquire
540 JY53SEHS000048AA
SCREW M6x16 PAN HEAD 		- 3 Enquire
550 RY53SE18D334AA
PIPE ASSEMBLY-INLET 		- 1 Enquire
560 JY53SE8590EA
O RING SEAL 		- 2 Enquire
570 JY53SE8A592AA
SEAL-T-STAT HOUSING 		- 1 Enquire
580 JY53SE8575AB
THERMOSTAT ACTUATOR 		- 1 Enquire
590 JY53SEHS000048AA
SCREW M6x16 PAN HEAD 		- 2 Enquire
600 MY83SE8A592BA
O RING SEAL 		- 1 Enquire
610 MY83SE8A592CA
O RING 		- 1 Enquire
620 MY83SE8A584AA
OUTLET CONNECTION 		- 1 Enquire
630 JY53SEHS000017AA
BOLT M6X16 TORX MALE 		- 3 Enquire
640 JY53SE109090BA
FIXING CLIP-WIRING 		- 1 Enquire
650 JY53322666AAPK
COOLANT-(1.5 LTR)-10
1 Litre, Pack of 10 		- A/R Enquire
