Headlamps and Fixings of Aston Martin Aston Martin DBS V12

View All

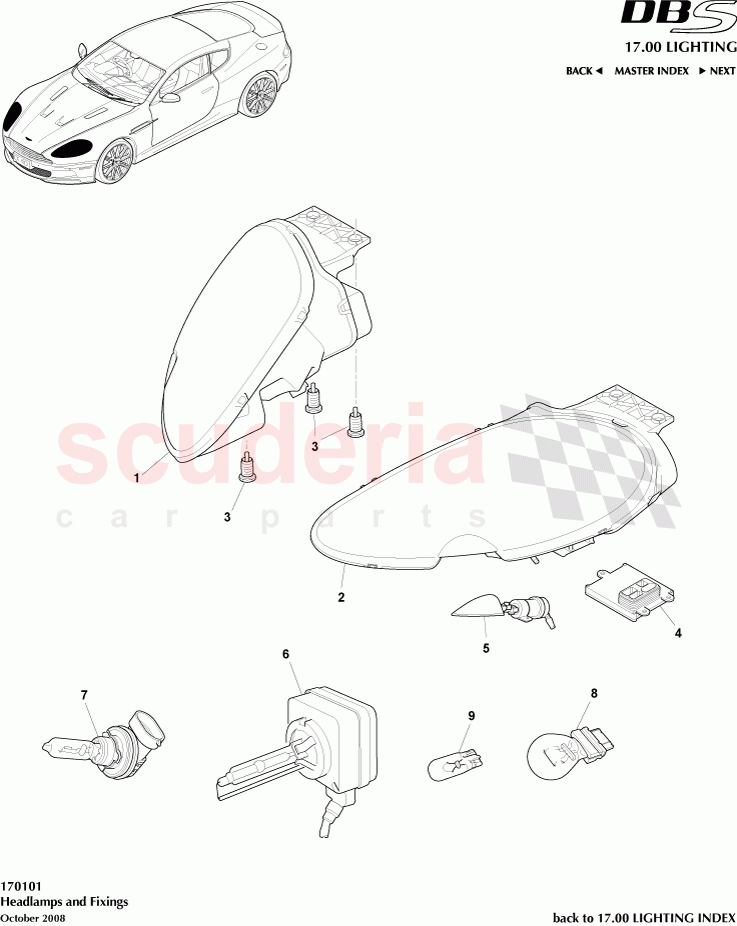

Aston Martin DBS V12 - Headlamps and Fixings

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

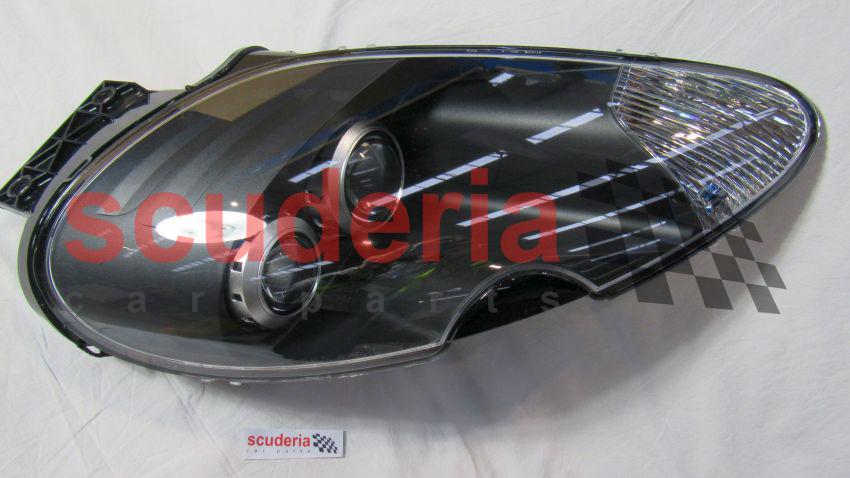

	4G4313W029AE	HEADLAMP RH RHD	Enquire	To Order
	4G4313W029BE	HEADLAMP RH LHD	Enquire	To Order
	4G4313W029CE	HEADLAMP ASSY RH-FED	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock

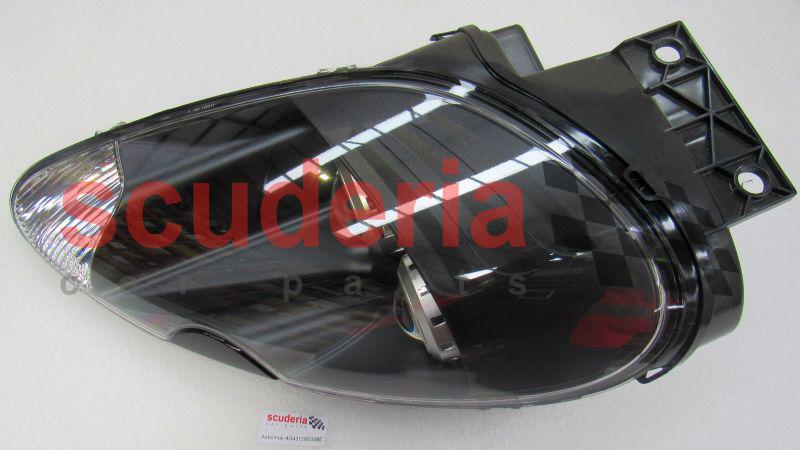

	4G4313W030AE	HEADLAMP ASY LH RHD	Enquire	To Order
	4G4313W030BE	HEADLAMP LH LHD	Enquire	To Order
	4G4313W030CE	HEADLAMP ASSY LH-FED	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4313037AD	Ajuster, M20, headlamp	Enquire	To Order
	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	Enquire	To Order
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313C169AB	BALLAST ASSEMBLY-HEADLAMP	Enquire	To Order
	AD4313C027AA	Cover Headlamp Wash, LH	Enquire	To Order
	AD4313C026AA	Cover Headlamp Wash, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G433710226	Bulb, HID, Dip Beam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4399703AA	MAIN BEAM BULB 65W TYPE H9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313465AAPK	BULB W5W BLUE PK 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313465BA	BULB PY27/7W DIRECTION INDICATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4313W029AE	HEADLAMP RH RHD	4G4313W029AE HEADLAMP RH RHD Wash and level	-	1	Enquire
1	4G4313W029BE	HEADLAMP RH LHD	4G4313W029BE HEADLAMP RH LHD Wash and level	-	1	Enquire
1	4G4313W029CE	HEADLAMP ASSY RH-FED	4G4313W029CE HEADLAMP ASSY RH-FED Wash and level	-	1	Enquire
1	BG4313W029AB	HEADLAMP ASSY RH RHD	BG4313W029AB HEADLAMP ASSY RH RHD 11MY	-	1	Enquire
1	BG4313W029BC	HEADLAMP ASSY RH LHD	BG4313W029BC HEADLAMP ASSY RH LHD 11MY	-	1	Enquire
1	BG4313W029CB	HEADLAMP ASSY RH-FED	BG4313W029CB HEADLAMP ASSY RH-FED 11MY	-	1	Enquire
2	4G4313W030AE	HEADLAMP ASY LH RHD	4G4313W030AE HEADLAMP ASY LH RHD Wash and level	-	1	Enquire
2	4G4313W030BE	HEADLAMP LH LHD	4G4313W030BE HEADLAMP LH LHD Wash and level	-	1	Enquire
2	4G4313W030CE	HEADLAMP ASSY LH-FED	4G4313W030CE HEADLAMP ASSY LH-FED Wash and level	-	1	Enquire
2	BG4313W030AB	HEADLAMP ASSY LH RHD	BG4313W030AB HEADLAMP ASSY LH RHD 11MY	-	1	Enquire
2	BG4313W030BC	HEADLAMP ASSY LH LHD	BG4313W030BC HEADLAMP ASSY LH LHD 11MY	-	1	Enquire
2	BG4313W030CB	HEADLAMP ASSY LH-FED	BG4313W030CB HEADLAMP ASSY LH-FED 11MY	-	1	Enquire
3	4G4313037AD	Ajuster, M20, headlamp	4G4313037AD Ajuster, M20, headlamp 3 per unit	-	1	Enquire
3	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	703144 Bolt M6 x 45 Pan Flange Torx 8 Chrome Free 3 per unit	-	1	Enquire
3	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10) 3 per unit	-	1	Enquire
4	4G4313C169AB	BALLAST ASSEMBLY-HEADLAMP	4G4313C169AB BALLAST ASSEMBLY-HEADLAMP 1 per unit	-	1	Enquire
4	AD4313C027AA	Cover Headlamp Wash, LH	AD4313C027AA Cover Headlamp Wash, LH 12MY	-	1	Enquire
4	AD4313C026AA	Cover Headlamp Wash, RH	AD4313C026AA Cover Headlamp Wash, RH 12MY	-	1	Enquire
4	4G4313C024AB	Jet wash Cover Nozzle Assembly & Pump	4G4313C024AB Jet wash Cover Nozzle Assembly & Pump	-	1	Enquire
6	4G433710226	Bulb, HID, Dip Beam	4G433710226 Bulb, HID, Dip Beam Dip Beam (HID)	-	1	Enquire
7	4G4399703AA	MAIN BEAM BULB 65W TYPE H9	4G4399703AA MAIN BEAM BULB 65W TYPE H9 Main Beam	-	1	Enquire
8	4G4313465AAPK	BULB W5W BLUE PK 2	4G4313465AAPK BULB W5W BLUE PK 2 Side lights	-	1	Enquire
9	4G4313465BA	BULB PY27/7W DIRECTION INDICATOR	4G4313465BA BULB PY27/7W DIRECTION INDICATOR Indicator	-	1	Enquire
