Air Distribution Components of Aston Martin Aston Martin DBS V12

View All

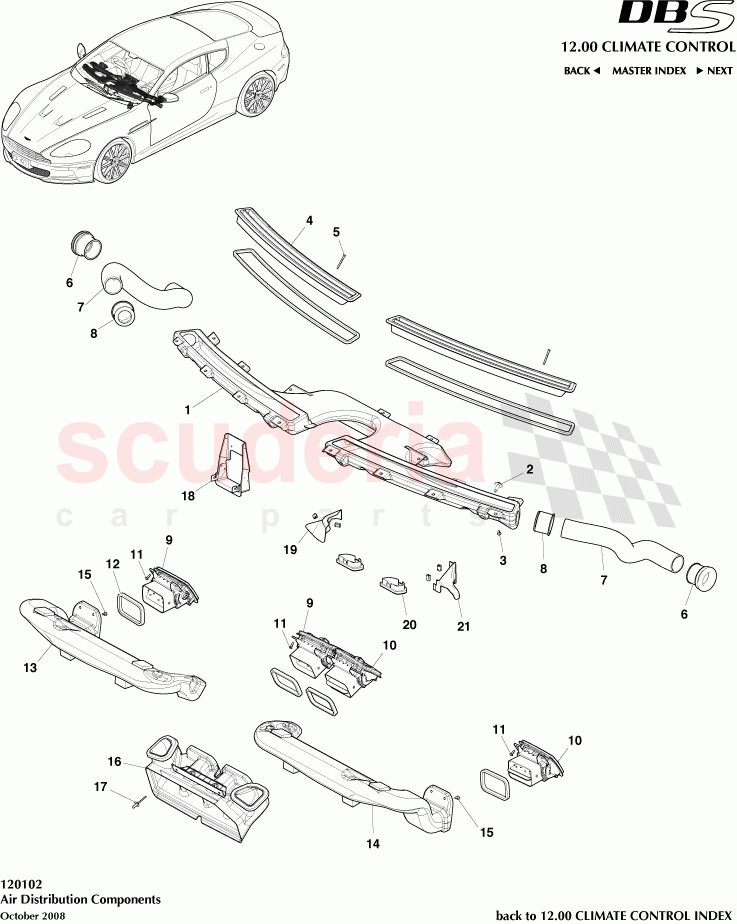

Aston Martin DBS V12 - Air Distribution Components

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3304432BD	Duct Assembly, Windshield Deflector, RHD	Enquire	To Order
	6G3304432AD	Duct Assembly, Windshield Deflector, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	Enquire	To Order
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

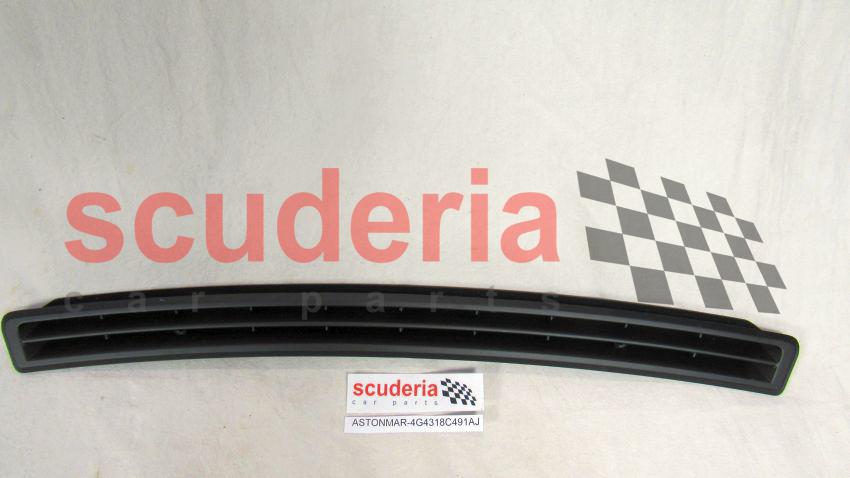

	4G4318C491AJ	Grille - Window Defrost	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3379231AC	Screw, M3.5 x 38, Flat Hd Csk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C046B80AC	SE I/PNL DEF OPG GRL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319E658AC	Hose, A/C Window Demister	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319E680AD	Connector, A/C Demister Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33046B30BB	Register Assembly, RH, Iridium Silver	Enquire	To Order
	4G43046B30BB	Register Assembly, Air Con, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33046B31BB	Register Assembly, LH, Iridium Silver	Enquire	To Order
	4G43046B31BB	Register Assembly, Air Con, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318D404CA	FOAM SEAL - AIR DISTRIBUTION DUCTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701447	Screw, M4 x 12, Pan Head, Torx Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4319C804AE	Duct Assembly, A/C Instrument Panel Centre to RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4319C805AE	Duct Assembly, A/C Instrument Panel Centre to LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33RA610123AA	Pop Rivet, Aluminium, 4.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4318D404BC	Duct Assembly, Heater Air Distribution, RHD	Enquire	To Order
	8G4318D404AC	Duct Assembly, Heater Air Distribution, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C608313AA	3.2X11.5 ALLY BLND POP RIVET	Enquire	To Order
	9G43370807AA	Bracket Assembly, Tyre Pressure Monitoring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33014K96AA	Duct Assembly, Aircon Footwell, RH, RHD	Enquire	To Order
	8G43014K97BB	Duct Assembly, Aircon Footwell, LH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43014K00AA	Plug Assembly, Foot Duct Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33014K97AA	Duct Assembly, Aircon Footwell, LH, LHD	Enquire	To Order
	8D3360302BB	Clip, Fir Tree, Flat Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G3304432BD	Duct Assembly, Windshield Deflector, RHD	6G3304432BD Duct Assembly, Windshield Deflector, RHD RHD	-	1	Enquire
1	6G3304432AD	Duct Assembly, Windshield Deflector, LHD	6G3304432AD Duct Assembly, Windshield Deflector, LHD LHD	-	1	Enquire
2	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free	-	4	Enquire
3	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	-	14	Enquire
3	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	2	Enquire
4	4G4318C491AJ	Grille - Window Defrost	4G4318C491AJ Grille - Window Defrost	-	2	Enquire
5	6G3379231AC	Screw, M3.5 x 38, Flat Hd Csk	6G3379231AC Screw, M3.5 x 38, Flat Hd Csk Screen defog gril	-	4	Enquire
6	4G43C046B80AC	SE I/PNL DEF OPG GRL	4G43C046B80AC SE I/PNL DEF OPG GRL	-	4	Enquire
7	4G4319E658AC	Hose, A/C Window Demister	4G4319E658AC Hose, A/C Window Demister	-	2	Enquire
8	4G4319E680AD	Connector, A/C Demister Hose	4G4319E680AD Connector, A/C Demister Hose	-	2	Enquire
9	8D33046B30BB	Register Assembly, RH, Iridium Silver	8D33046B30BB Register Assembly, RH, Iridium Silver Silver	-	2	Enquire
9	4G43046B30BB	Register Assembly, Air Con, RH	4G43046B30BB Register Assembly, Air Con, RH Black	-	2	Enquire
10	8D33046B31BB	Register Assembly, LH, Iridium Silver	8D33046B31BB Register Assembly, LH, Iridium Silver Silver	-	2	Enquire
10	4G43046B31BB	Register Assembly, Air Con, LH	4G43046B31BB Register Assembly, Air Con, LH Black	-	2	Enquire
11	4G4318D404CA	FOAM SEAL - AIR DISTRIBUTION DUCTS	4G4318D404CA FOAM SEAL - AIR DISTRIBUTION DUCTS	-	4	Enquire
12	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw Register to IP	-	12	Enquire
13	8G4319C804AE	Duct Assembly, A/C Instrument Panel Centre to RH	8G4319C804AE Duct Assembly, A/C Instrument Panel Centre to RH	-	1	Enquire
14	8G4319C805AE	Duct Assembly, A/C Instrument Panel Centre to LH	8G4319C805AE Duct Assembly, A/C Instrument Panel Centre to LH	-	1	Enquire
15	6G33RA610123AA	Pop Rivet, Aluminium, 4.8	6G33RA610123AA Pop Rivet, Aluminium, 4.8 Duct to mldg	-	10	Enquire
16	8G4318D404BC	Duct Assembly, Heater Air Distribution, RHD	8G4318D404BC Duct Assembly, Heater Air Distribution, RHD RHD	-	1	Enquire
16	8G4318D404AC	Duct Assembly, Heater Air Distribution, LHD	8G4318D404AC Duct Assembly, Heater Air Distribution, LHD LHD	-	1	Enquire
17	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	4G4317A873AA RIVET 4.8 x 12 BLND LRG AL	-	4	Enquire
18	6G33C608313AA	3.2X11.5 ALLY BLND POP RIVET	6G33C608313AA 3.2X11.5 ALLY BLND POP RIVET TPM bracket	-	4	Enquire
18	9G43370807AA	Bracket Assembly, Tyre Pressure Monitoring	9G43370807AA Bracket Assembly, Tyre Pressure Monitoring LHD	-	1	Enquire
19	9D33014K96AA	Duct Assembly, Aircon Footwell, RH, RHD	9D33014K96AA Duct Assembly, Aircon Footwell, RH, RHD	-	1	Enquire
19	8G43014K97BB	Duct Assembly, Aircon Footwell, LH, RHD	8G43014K97BB Duct Assembly, Aircon Footwell, LH, RHD	-	1	Enquire
20	7G43014K00AA	Plug Assembly, Foot Duct Outlet	7G43014K00AA Plug Assembly, Foot Duct Outlet	-	1	Enquire
21	9D33014K97AA	Duct Assembly, Aircon Footwell, LH, LHD	9D33014K97AA Duct Assembly, Aircon Footwell, LH, LHD	-	1	Enquire
21	8D3360302BB	Clip, Fir Tree, Flat Head	8D3360302BB Clip, Fir Tree, Flat Head	-	1	Enquire
