Engine Wiring

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Engine Wiring

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8G4312B637CB HARNESS ASSY ENGINE Enquire To Order
BG4312B637AA HARNESS ASSY ENGINE Enquire To Order
91700 HARNESS ASSY-ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
4G4314A004GG BRKT-CMS SENSOR BNKA Enquire To Order
Photo Part No Description Price (each) Stock
4G436147XAD BRACKET - AIRCON / ELECTRICAL Enquire To Order
Photo Part No Description Price (each) Stock
4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10) Enquire To Order
View All

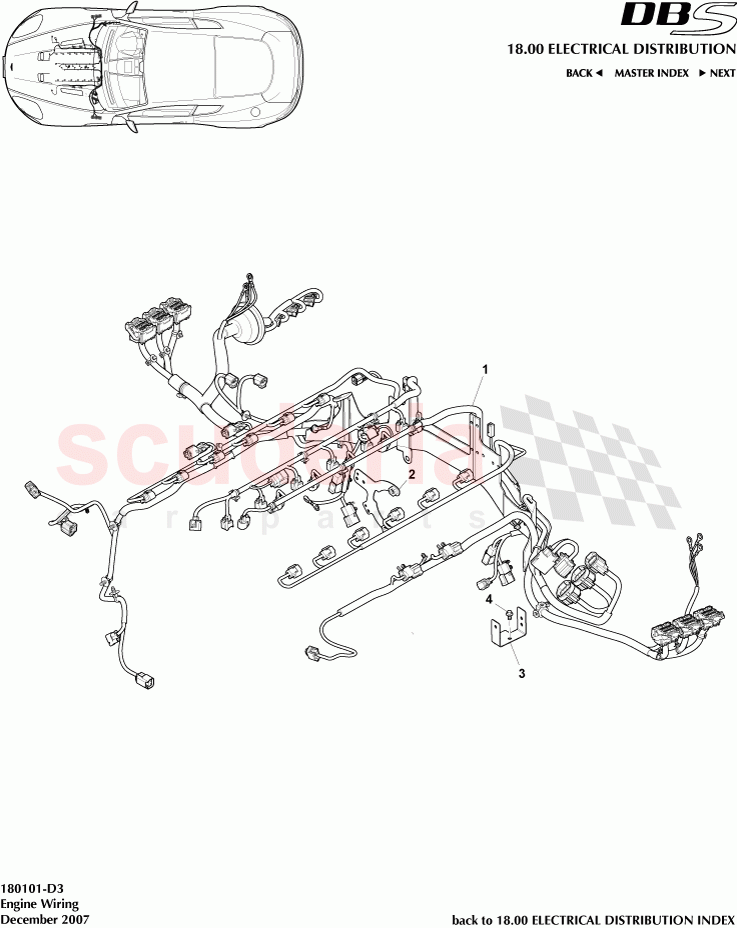

Engine Wiring of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8G4312B637CB
HARNESS ASSY ENGINE
-09MY 		- 1 Enquire
1 BG4312B637AA
HARNESS ASSY ENGINE
-11MY 		- 1 Enquire
1 91700
HARNESS ASSY-ENGINE 		- 1 Enquire
2 4G4314A004GG
BRKT-CMS SENSOR BNKA 		- 1 Enquire
3 4G436147XAD
BRACKET - AIRCON / ELECTRICAL 		- 1 Enquire
4 4G432710245PK
Copper Washer Drain Plug 22x28x1.5 (Pack of 10) 		- 1 Enquire
