Aston Martin DBS V12 - Fuse Panel, Fuses, Circuit Breakers

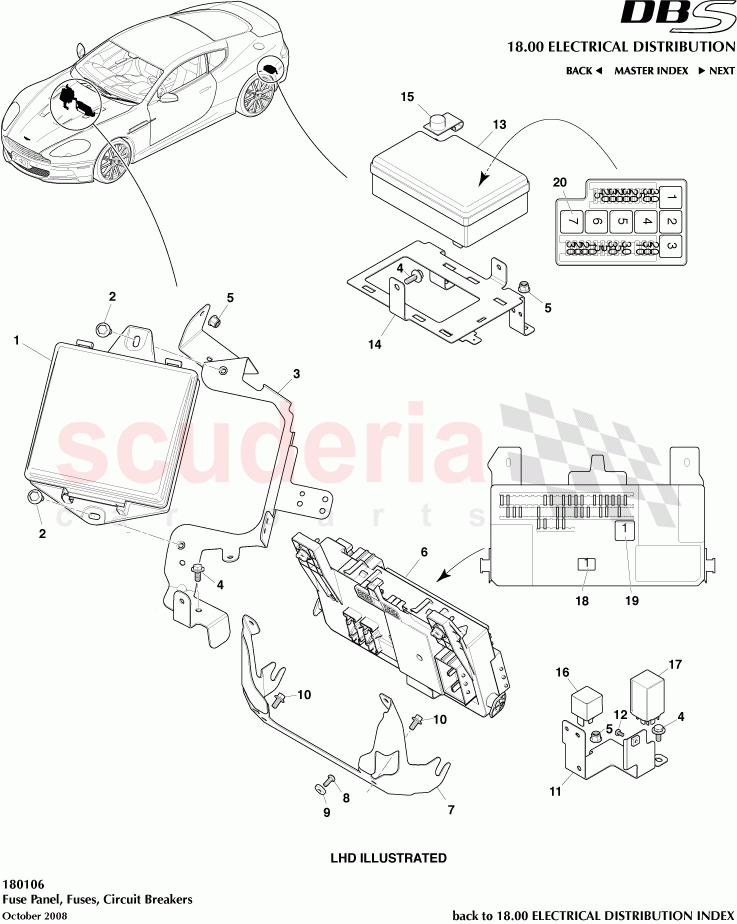

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BG3314A173AB	Fuse Box Assembly, Engine Bay	Enquire	To Order
	8D3314A173AB	ENGINE BAY FUSE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314A173BK	ENGINE BAY FUSEBOX BRACKET RHD	Enquire	To Order
	4G4314A173CH	ENG BAY F/BOX BRKT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4314C245AA	Central Electronic Module - CEM	Enquire	To Order
	8G4314C245AA	Central Electronic Module - CEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313B525BG	Bracket, Cabin Fuse Box CEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702082	Bolt, Self Locking, M5 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L41041AA	Edge Strip, Black 2 x 40	Enquire	To Order
	8D3314N072BD	Bracket, Fuse Box, RHD	Enquire	To Order
	8D3314N072AE	Bracket, Fuse Box, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314A073AJ	Fusebox, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314A301AH	Bracket, Boot Fusebox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785236	Protector, Power Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710659	TONNEAU LID LOCK RELAY 20A MICRO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333F826AA	MOD ASSY POWER STEERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710526	Relay, micro	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710526	Relay, micro	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3723423	Fuse Midi 7.5A	Enquire	To Order
	3723424	Fuse, Midi 10A	Enquire	To Order
	3723425	Fuse, Midi 15A	Enquire	To Order

...and 13 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BG3314A173AB	Fuse Box Assembly, Engine Bay	BG3314A173AB Fuse Box Assembly, Engine Bay 11MY	-	1	Enquire
1	8D3314A173AB	ENGINE BAY FUSE BOX	8D3314A173AB ENGINE BAY FUSE BOX	-	1	Enquire
2	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20)	-	2	Enquire
3	4G4314A173BK	ENGINE BAY FUSEBOX BRACKET RHD	4G4314A173BK ENGINE BAY FUSEBOX BRACKET RHD	-	1	Enquire
3	4G4314A173CH	ENG BAY F/BOX BRKT	4G4314A173CH ENG BAY F/BOX BRKT	-	1	Enquire
4	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	3	Enquire
5	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	5	Enquire
6	8G4314C245AA	Central Electronic Module - CEM	8G4314C245AA Central Electronic Module - CEM 10MY From (V) 01540	-	1	Enquire
6	8G4314C245AA	Central Electronic Module - CEM	8G4314C245AA Central Electronic Module - CEM	-	1	Enquire
7	4G4313B525BG	Bracket, Cabin Fuse Box CEM	4G4313B525BG Bracket, Cabin Fuse Box CEM	-	1	Enquire
8	702082	Bolt, Self Locking, M5 x 16	702082 Bolt, Self Locking, M5 x 16	-	2	Enquire
9	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	2	Enquire
10	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
11	4G43L41041AA	Edge Strip, Black 2 x 40	4G43L41041AA Edge Strip, Black 2 x 40 Bracket, Fusebox mounting	-	1	Enquire
11	8D3314N072BD	Bracket, Fuse Box, RHD	8D3314N072BD Bracket, Fuse Box, RHD	-	1	Enquire
11	8D3314N072AE	Bracket, Fuse Box, LHD	8D3314N072AE Bracket, Fuse Box, LHD	-	1	Enquire
12	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	-	1	Enquire
13	4G4314A073AJ	Fusebox, Rear	4G4314A073AJ Fusebox, Rear	-	1	Enquire
14	4G4314A301AH	Bracket, Boot Fusebox	4G4314A301AH Bracket, Boot Fusebox	-	1	Enquire
15	3785236	Protector, Power Stud	3785236 Protector, Power Stud	-	1	Enquire
16	4G433710659	TONNEAU LID LOCK RELAY 20A MICRO	4G433710659 TONNEAU LID LOCK RELAY 20A MICRO	-	1	Enquire
17	8D333F826AA	MOD ASSY POWER STEERING	8D333F826AA MOD ASSY POWER STEERING	-	1	Enquire
18	4G433710526	Relay, micro	4G433710526 Relay, micro	-	1	Enquire
19	4G433710526	Relay, micro	4G433710526 Relay, micro	-	1	Enquire
20	3723423	Fuse Midi 7.5A	3723423 Fuse Midi 7.5A 257 07.5	-	-	Enquire
20	3723424	Fuse, Midi 10A	3723424 Fuse, Midi 10A 257 010	-	-	Enquire
20	3723425	Fuse, Midi 15A	3723425 Fuse, Midi 15A 257 015	-	-	Enquire
20	3723426	Fuse, Midi 20A	3723426 Fuse, Midi 20A 257 020	-	-	Enquire
20	3723427	Fuse, Midi 25A	3723427 Fuse, Midi 25A 257 025	-	-	Enquire
20	3723428	Fuse, Midi 30A	3723428 Fuse, Midi 30A 257 030	-	-	Enquire
20	3723422	Fuse, Midi 5A	3723422 Fuse, Midi 5A 257 005	-	-	Enquire
20	4G433710962	FUSE 80 AMP- COOLING FAN MOTOR	4G433710962 FUSE 80 AMP- COOLING FAN MOTOR	-	-	Enquire
20	4G433710264	FUSE 60 AMP-YELLOW COOLING FAN MOTOR	4G433710264 FUSE 60 AMP-YELLOW COOLING FAN MOTOR	-	-	Enquire
20	4G433710579PK	MINI FUSE-7.5A PK 10	4G433710579PK MINI FUSE-7.5A PK 10	-	-	Enquire
20	4G433710580PK	MINI FUSE-10A PK 10	4G433710580PK MINI FUSE-10A PK 10	-	-	Enquire
20	4G433710581PK	MINI FUSE-15A PK 10	4G433710581PK MINI FUSE-15A PK 10	-	-	Enquire
20	4G433710582PK	MINI FUSE-20A PK 10	4G433710582PK MINI FUSE-20A PK 10	-	-	Enquire
20	4G433710583PK	MINI FUSE-25A PK 10	4G433710583PK MINI FUSE-25A PK 10	-	-	Enquire
20	4G433710578PK	MINI FUSE-5A PK 10	4G433710578PK MINI FUSE-5A PK 10	-	-	Enquire
20	1R123710526	RELAY-CHANGE OVER 40A MAXI	1R123710526 RELAY-CHANGE OVER 40A MAXI	-	7	Enquire
