IP Harness Assembly of Aston Martin Aston Martin DBS V12

View All

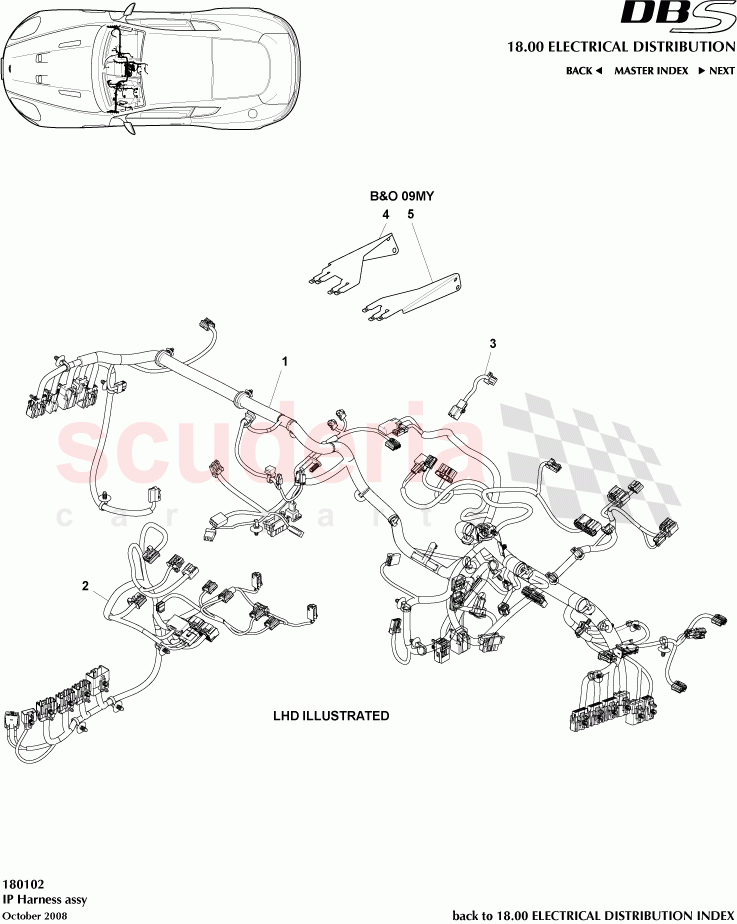

Aston Martin DBS V12 - IP Harness Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G4314401AC	HARNESS ASSY FACIA RHD MANUAL	Enquire	To Order
	9G4314401BC	HARNESS ASSY FACIA LHD MANUAL	Enquire	To Order
	CG4314K024AD	Harness assy, facia, B and O	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9G4314B079DC	CENTRE STACK HARNESS	Enquire	To Order
	9G4314B079CC	CENTRE STACK HARNESS	Enquire	To Order
	CG4314B079BC	Harness assy, centre Stack, MANUAL	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D339137BA	Harness Assembly, Passive Anti Theft System (PATS) Link	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3314N003AA	Inline bracket, Instrument Panel (IP), RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	Enquire	To Order
	CG4314D454BC	Link Harness, Garmin Sat Nav	Enquire	To Order
	4G4318C951HB	Media Oriented System transport (MOST), Service Loop	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9G4314401AC	HARNESS ASSY FACIA RHD MANUAL	9G4314401AC HARNESS ASSY FACIA RHD MANUAL RHD 9.5MY	-	1	Enquire
1	9G4314401BC	HARNESS ASSY FACIA LHD MANUAL	9G4314401BC HARNESS ASSY FACIA LHD MANUAL LHD 9.5MY	-	1	Enquire
1	CG4314K024AD	Harness assy, facia, B and O	CG4314K024AD Harness assy, facia, B and O RHD 12MY	-	1	Enquire
1	CG4314401AD	LHD B & O FACIA HARNESS	CG4314401AD LHD B & O FACIA HARNESS LHD 12MY	-	1	Enquire
1	8D3314401GD	HARNESS ASSY FACIA RHD	8D3314401GD HARNESS ASSY FACIA RHD RHD	-	1	Enquire
1	8D3314401HD	HARNESS ASSY FACIA LHD	8D3314401HD HARNESS ASSY FACIA LHD LHD	-	1	Enquire
2	9G4314B079DC	CENTRE STACK HARNESS	9G4314B079DC CENTRE STACK HARNESS 9.5MY	-	1	Enquire
2	9G4314B079CC	CENTRE STACK HARNESS	9G4314B079CC CENTRE STACK HARNESS 9.5MY	-	1	Enquire
2	CG4314B079BC	Harness assy, centre Stack, MANUAL	CG4314B079BC Harness assy, centre Stack, MANUAL 12MY	-	1	Enquire
2	CG4314B079CC	CENTRE STACK AUTO	CG4314B079CC CENTRE STACK AUTO 12MY	-	1	Enquire
2	8D3314B079AF	CENTRE STACK HARNESS	8D3314B079AF CENTRE STACK HARNESS	-	1	Enquire
3	8D339137BA	Harness Assembly, Passive Anti Theft System (PATS) Link	8D339137BA Harness Assembly, Passive Anti Theft System (PATS) Link	-	1	Enquire
4	9D3314N003AA	Inline bracket, Instrument Panel (IP), RHS	9D3314N003AA Inline bracket, Instrument Panel (IP), RHS 9.5MY	-	1	Enquire
5	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel 12MY, not illustrated	-	1	Enquire
5	CG4314D454BC	Link Harness, Garmin Sat Nav	CG4314D454BC Link Harness, Garmin Sat Nav 12MY, not illustrated	-	1	Enquire
5	4G4318C951HB	Media Oriented System transport (MOST), Service Loop	4G4318C951HB Media Oriented System transport (MOST), Service Loop not illustrated	-	1	Enquire
5	9D3314N003BB	Inline bracket, Instrument Panel (IP), LHS	9D3314N003BB Inline bracket, Instrument Panel (IP), LHS 9.5MY	-	1	Enquire
