Parking Aid of Aston Martin Aston Martin DBS V12

View All

Aston Martin DBS V12 - Parking Aid

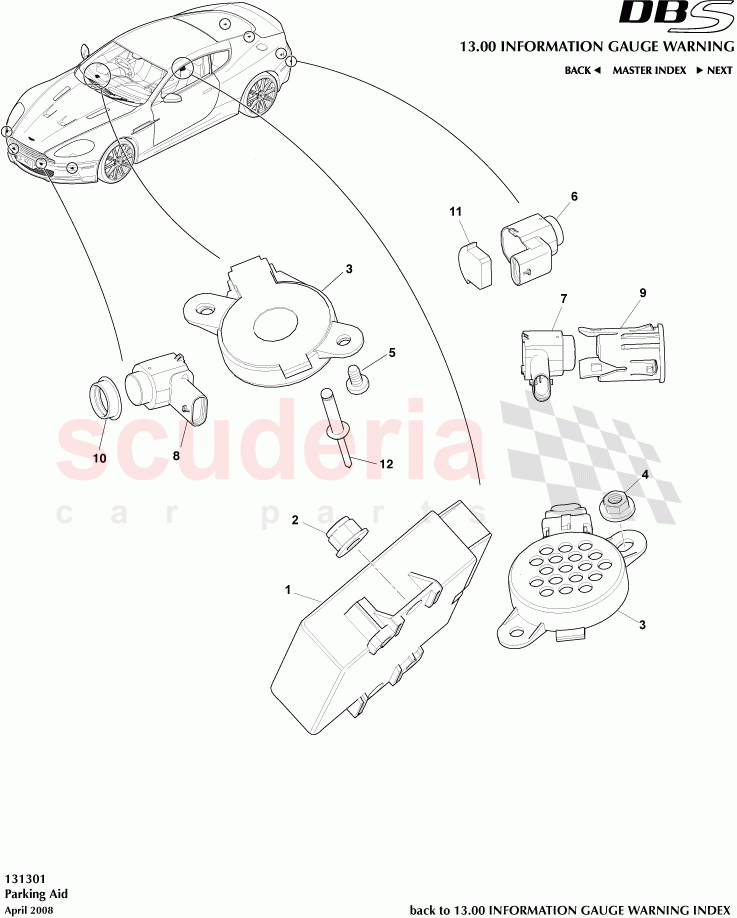

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G433711061	Module, Parking Aid	Enquire	To Order
	9G433711061	Module, Parking Aid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710342	Speaker, Rear Parking sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

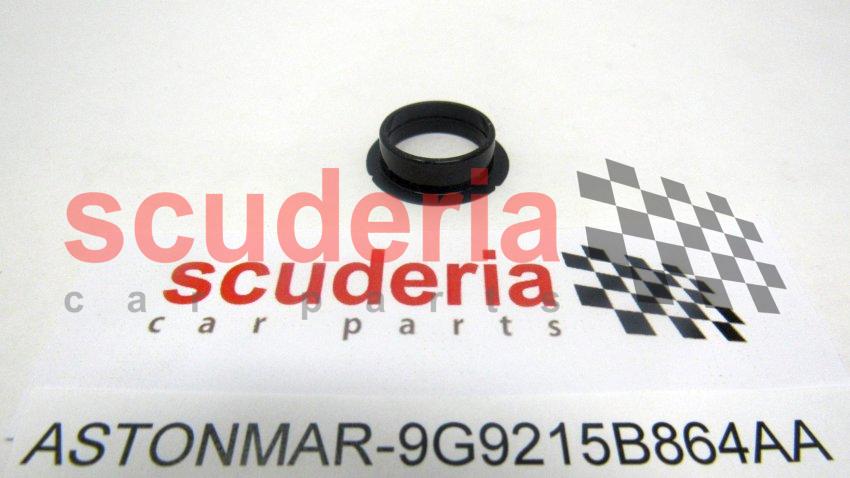

	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3315K872BA	Bracket, parking aid sensor, RH	Enquire	To Order
	8D3315K871BA	Bracket, parking aid sensor, LH	Enquire	To Order
	8D333710004	Bracket, Park Aid Sensor Inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33090400AA	Heat Shield, Sensor, Parking Aid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701580PK	Rivet Dome Head (Pack of 20)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9G433711061	Module, Parking Aid	9G433711061 Module, Parking Aid 09MY	-	1	Enquire
1	9G433711061	Module, Parking Aid	9G433711061 Module, Parking Aid	-	1	Enquire
2	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	2	Enquire
3	1R123710342	Speaker, Rear Parking sensor	1R123710342 Speaker, Rear Parking sensor	-	1	Enquire
4	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
5	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	-	2	Enquire
6	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	9G9215B864AA Parking Sensor Decoupling Ring Gen 5.3	-	2	Enquire
7	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	9G9215B864AA Parking Sensor Decoupling Ring Gen 5.3	-	2	Enquire
8	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	9G9215B864AA Parking Sensor Decoupling Ring Gen 5.3	-	4	Enquire
9	8D3315K872BA	Bracket, parking aid sensor, RH	8D3315K872BA Bracket, parking aid sensor, RH	-	1	Enquire
9	8D3315K871BA	Bracket, parking aid sensor, LH	8D3315K871BA Bracket, parking aid sensor, LH	-	1	Enquire
9	8D333710004	Bracket, Park Aid Sensor Inner	8D333710004 Bracket, Park Aid Sensor Inner	-	2	Enquire
10	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	9G9215B864AA Parking Sensor Decoupling Ring Gen 5.3	-	8	Enquire
11	8D33090400AA	Heat Shield, Sensor, Parking Aid	8D33090400AA Heat Shield, Sensor, Parking Aid	-	2	Enquire
12	701580PK	Rivet Dome Head (Pack of 20)	701580PK Rivet Dome Head (Pack of 20)	-	2	Enquire
