Battery Cables of Aston Martin Aston Martin DBS V12

View All

Aston Martin DBS V12 - Battery Cables

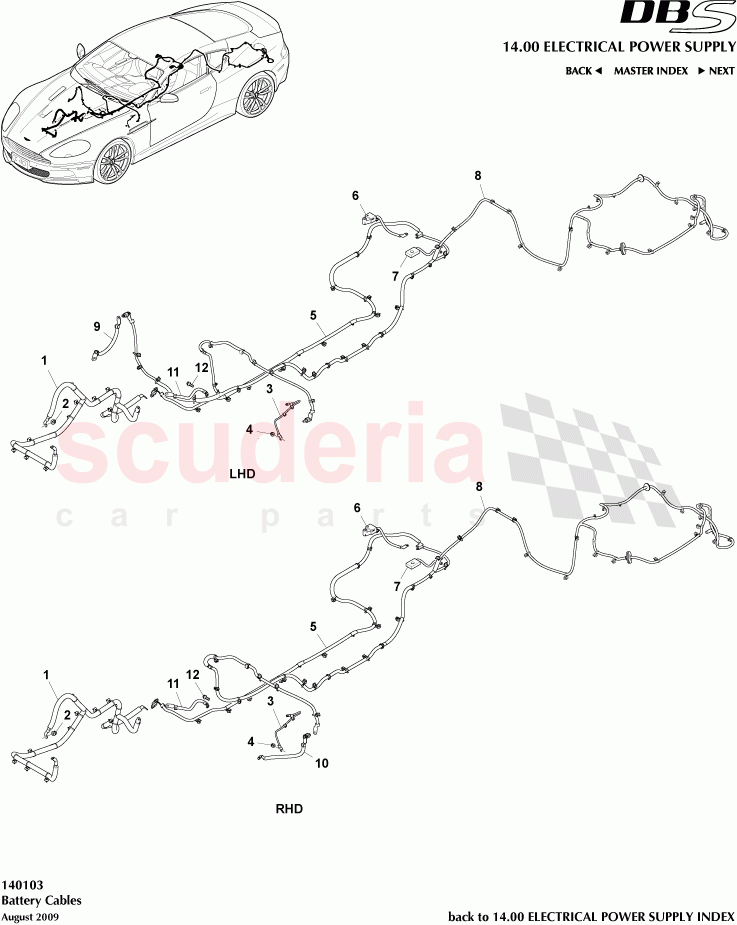

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D3310C310AB	CABLE ASSY DIRTYFEED BULKHEAD STUD TO STRTR/ALT/JUMPSTART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703739	Nut, M8, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314A280DD	Earth Strap, Bonnet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702840	Nut & Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314305AC	CABLE ASSY BDS TO BULKHEAD STUD DIRTY FEED	Enquire	To Order
	9G4310A752AB	TERMINAL POST ASSY	Enquire	To Order
	4G43E820201AA	M8 HALF NUT HEX BRASS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4314300AD	Cable Assembly, Battery to BDS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314301AD	Cable Assembly, Battery to GND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4314B278AC	CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED COUPE LHD	Enquire	To Order
	8G4314B278AB	CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED COUPE LHD	Enquire	To Order
	8G4314B278BC	Cable assy, BDS to bulkhd stud, to engine bay fuse box, RHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AD3314B278FB	CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED CONV RHD	Enquire	To Order
	4G4314B278DD	Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD3314B278EB	CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED CONV LHD	Enquire	To Order
	4G4314B278D1	Wire assy, bulkhead stud to engine bay fuse box RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G4314A280AA	Earth Strap, Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703200	SCREW M10x25 HEX FLG CHROME FREE	Enquire	To Order
	9G4310A752AB	TERMINAL POST ASSY	Enquire	To Order
	4G43E820201AA	M8 HALF NUT HEX BRASS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D3310C310AB	CABLE ASSY DIRTYFEED BULKHEAD STUD TO STRTR/ALT/JUMPSTART	8D3310C310AB CABLE ASSY DIRTYFEED BULKHEAD STUD TO STRTR/ALT/JUMPSTART	-	1	Enquire
2	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	1	Enquire
3	4G4314A280DD	Earth Strap, Bonnet	4G4314A280DD Earth Strap, Bonnet	-	1	Enquire
4	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head	-	1	Enquire
5	7G4314305AC	CABLE ASSY BDS TO BULKHEAD STUD DIRTY FEED	7G4314305AC CABLE ASSY BDS TO BULKHEAD STUD DIRTY FEED	-	1	Enquire
5	9G4310A752AB	TERMINAL POST ASSY	9G4310A752AB TERMINAL POST ASSY	-	1	Enquire
5	4G43E820201AA	M8 HALF NUT HEX BRASS	4G43E820201AA M8 HALF NUT HEX BRASS	-	2	Enquire
5	4G4310400AA	M8 COPPER SPRING WASHER	4G4310400AA M8 COPPER SPRING WASHER	-	2	Enquire
6	4G4314300AD	Cable Assembly, Battery to BDS	4G4314300AD Cable Assembly, Battery to BDS	-	1	Enquire
7	4G4314301AD	Cable Assembly, Battery to GND	4G4314301AD Cable Assembly, Battery to GND	-	1	Enquire
8	9G4314B278AC	CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED COUPE LHD	9G4314B278AC CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED COUPE LHD 9.5MY	-	1	Enquire
8	8G4314B278AB	CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED COUPE LHD	8G4314B278AB CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED COUPE LHD 08MY	-	1	Enquire
8	8G4314B278BC	Cable assy, BDS to bulkhd stud, to engine bay fuse box, RHD	8G4314B278BC Cable assy, BDS to bulkhd stud, to engine bay fuse box, RHD 08MY	-	1	Enquire
8	9G4314B278BC	CBL ASSY TO BULKHEAD STUD CLEAN FEED COUPE RHD	9G4314B278BC CBL ASSY TO BULKHEAD STUD CLEAN FEED COUPE RHD 09MY	-	1	Enquire
9	AD3314B278FB	CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED CONV RHD	AD3314B278FB CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED CONV RHD 10MY VOLANTE	-	1	Enquire
9	4G4314B278DD	Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box	4G4314B278DD Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box	-	1	Enquire
10	AD3314B278EB	CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED CONV LHD	AD3314B278EB CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED CONV LHD 10MY VOLANTE	-	1	Enquire
10	4G4314B278D1	Wire assy, bulkhead stud to engine bay fuse box RHD	4G4314B278D1 Wire assy, bulkhead stud to engine bay fuse box RHD	-	1	Enquire
11	6G4314A280AA	Earth Strap, Engine	6G4314A280AA Earth Strap, Engine	-	1	Enquire
12	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	1	Enquire
12	9G4310A752AB	TERMINAL POST ASSY	9G4310A752AB TERMINAL POST ASSY	-	1	Enquire
12	4G43E820201AA	M8 HALF NUT HEX BRASS	4G43E820201AA M8 HALF NUT HEX BRASS	-	2	Enquire
12	4G4310400AA	M8 COPPER SPRING WASHER	4G4310400AA M8 COPPER SPRING WASHER	-	2	Enquire
