Air Con Lines Fittings of Aston Martin Aston Martin DBS V12

View All

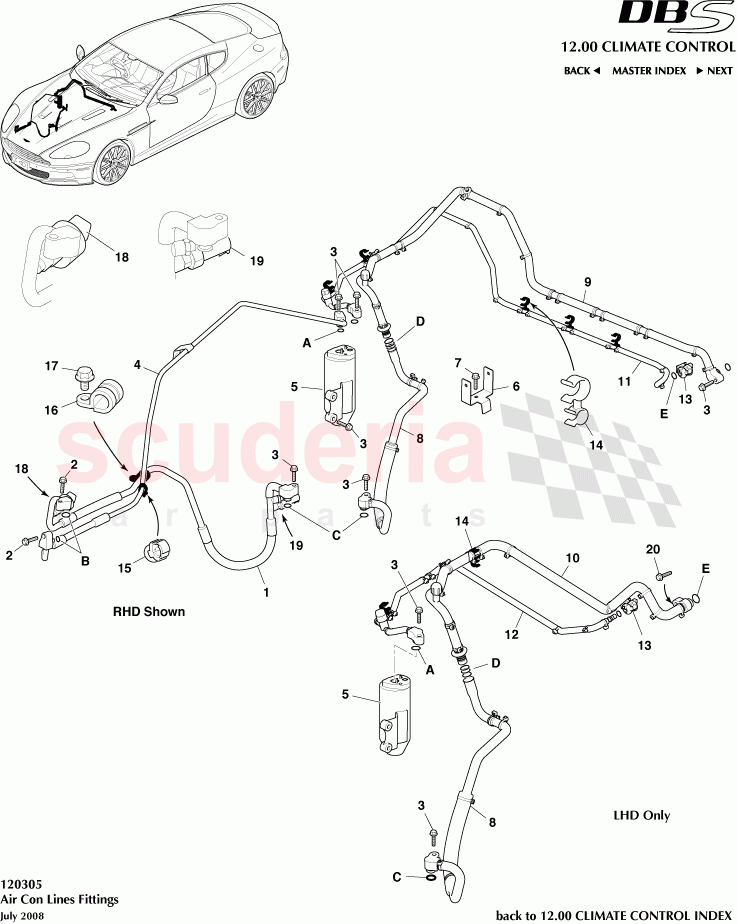

Aston Martin DBS V12 - Air Con Lines Fittings

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AG4319972AA	Tube - Air Conditioning Compressor to Condenser	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4319D719AA	TUBE ASSY - COND TO R/DRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319E891AD	Air Conditioning Drier	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4319A705AA	Tube Assy, Evaporator Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4319A705CA	Tube Assy, A/C Evaporator Outlet, Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4319A705BA	TUBE ASSY - AIRCON EVAP OUTLET LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4319835CA	Tube Assy, Receiver Drier to Evaporator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4319835BA	Tube Assy, Receiver Drier to Evaporator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434073AAA	CLAMP - LIQ	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701182	Clip, Pipe Swivel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701180	Clip, 14 x 4, Push In	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699634	P-Clip,13 x 15 x M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910192	Switch, A/C High Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG438911295	SW ASY-A/C PRES CTOF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	-	1	Enquire
-	4G438910910PK	O Rings-DB9 & V8 Condenser (Pack of 2)	4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2)	-	1	Enquire
-	4G438910909PK	O-Ring Compressor (Pack of 2)	4G438910909PK O-Ring Compressor (Pack of 2)	-	1	Enquire
-	4G438910911PK	O RINGS-DB9 EVAPORATOR-PACK OF 3	4G438910911PK O RINGS-DB9 EVAPORATOR-PACK OF 3	-	1	Enquire
-	6G438910446PK	O RING-V8 EVAPORATOR PACK OF 2	6G438910446PK O RING-V8 EVAPORATOR PACK OF 2	-	1	Enquire
1	AG4319972AA	Tube - Air Conditioning Compressor to Condenser	AG4319972AA Tube - Air Conditioning Compressor to Condenser	-	1	Enquire
2	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	2	Enquire
3	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	4	Enquire
4	AD4319D719AA	TUBE ASSY - COND TO R/DRIER	AD4319D719AA TUBE ASSY - COND TO R/DRIER	-	1	Enquire
5	4G4319E891AD	Air Conditioning Drier	4G4319E891AD Air Conditioning Drier	-	1	Enquire
6	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	4G436147XAD BRACKET - AIRCON / ELECTRICAL	-	1	Enquire
7	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	1	Enquire
8	AG4319A705AA	Tube Assy, Evaporator Outlet	AG4319A705AA Tube Assy, Evaporator Outlet	-	1	Enquire
9	AG4319A705CA	Tube Assy, A/C Evaporator Outlet, Upper	AG4319A705CA Tube Assy, A/C Evaporator Outlet, Upper RHD	-	1	Enquire
10	8G4319A705BA	TUBE ASSY - AIRCON EVAP OUTLET LHD	8G4319A705BA TUBE ASSY - AIRCON EVAP OUTLET LHD LHD	-	1	Enquire
11	AG4319835CA	Tube Assy, Receiver Drier to Evaporator	AG4319835CA Tube Assy, Receiver Drier to Evaporator RHD	-	1	Enquire
12	AG4319835BA	Tube Assy, Receiver Drier to Evaporator	AG4319835BA Tube Assy, Receiver Drier to Evaporator LHD	-	1	Enquire
13	4G434073AAA	CLAMP - LIQ	4G434073AAA CLAMP - LIQ	-	1	Enquire
14	701182	Clip, Pipe Swivel	701182 Clip, Pipe Swivel	-	5	Enquire
15	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In	-	-	Enquire
16	699634	P-Clip,13 x 15 x M6	699634 P-Clip,13 x 15 x M6	-	1	Enquire
17	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	1	Enquire
18	1R128910192	Switch, A/C High Pressure	1R128910192 Switch, A/C High Pressure	-	1	Enquire
19	AG438911295	SW ASY-A/C PRES CTOF	AG438911295 SW ASY-A/C PRES CTOF	-	1	Enquire
20	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head LHD Only	-	1	Enquire
