Centre Stack Assembly of Aston Martin Aston Martin DBS V12

View All

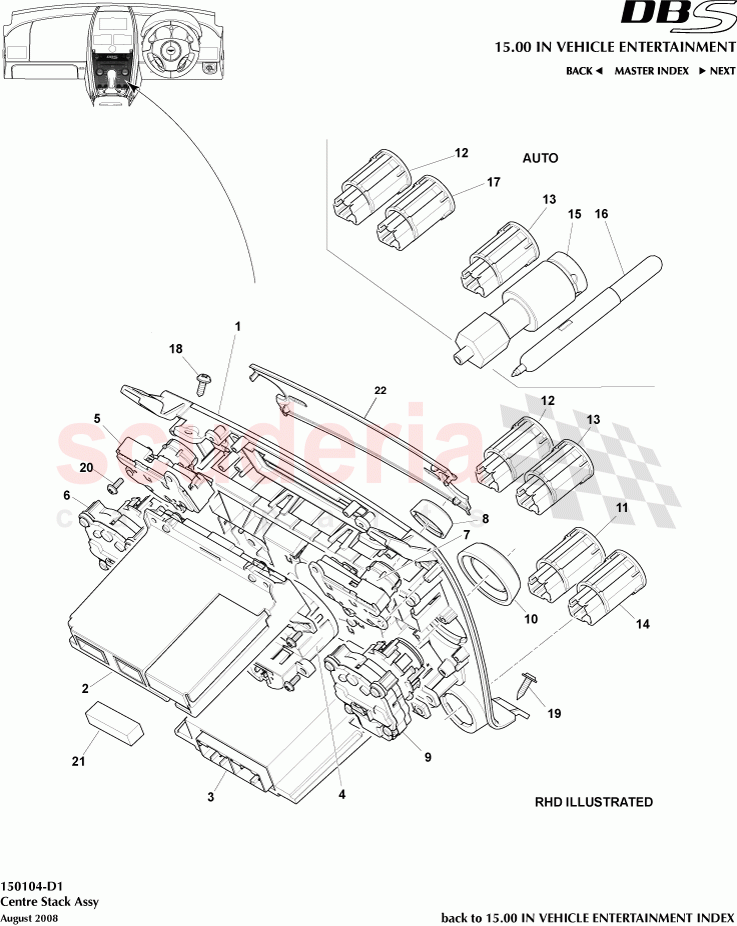

Aston Martin DBS V12 - Centre Stack Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD3313D734DA	SWITCH MAIN BODY	Enquire	To Order
	CD3313D734CA	SWITCH MAIN BODY	Enquire	To Order
	8D3313D734EC	SWITCH MAIN BODY (PIANO BLACK)	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4318C612BA	Module, Centre Console ECU	Enquire	To Order
	8D3318C612AB	CENTRE CONSOLE MODULE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3315000BB	Analogue Clock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313D734CB	Switch body, Piano Black surround and Silver lens	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318C612DA	Module, Temp HVAC Rotary Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313D734BB	Module, Volume / Auto Audio Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4318817BA	AUDIO CONTROL KNOB	Enquire	To Order
	8D3318817AB	AUDIO CONROL KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318C612EA	Module, Fan Speed HVAC Rotary Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD333710106	SWITCH KIT-GLASS DBS MANUAL (MADE TO ORDER)	Enquire	To Order
	AD333710107	SWITCH KIT-GLASS DBS AUTO (MADE TO ORDER)	Enquire	To Order
	CG4318783AA	Knob, HVAC control, satin chrome	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AD3315A860BB	PARKING SENSOR SWITC	Enquire	To Order
	8D3315A860BB	SWITCH-PARKNG SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD332C418CA	Switch, Active Damping	Enquire	To Order
	8D332C418CA	ACTIVE DAMPING SWTCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD332C418DA	Switch, DSC Control	Enquire	To Order
	6G332C418AA	DSC CONTROL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD3315K237BB	FOGLAMP SWITCH	Enquire	To Order
	6G3315K237BB	FOGLAMP SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4356051BB	PEN HOLDER	Enquire	To Order
	9G4356051BB	PEN HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700623	LAMY POCKET PEN-CHROME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD3314B626CB	SPORTS MODE SWITCH	Enquire	To Order
	9D3314B626AA	SPORTS MODE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707263	SCREW 4.2x13 FLG T/F	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3319H474AA	ANTI RATTLE HOLDER TRANSMISSION VEHICLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4304708BB	ICM LENS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9D3318C858DA	Centre stack assy, Piano black, AUTO	9D3318C858DA Centre stack assy, Piano black, AUTO LHD 9.5MY	-	1	Enquire
-	9D3318C858CA	CENTRE STACK ASSEMBLY PIANO BLACK	9D3318C858CA CENTRE STACK ASSEMBLY PIANO BLACK RHD 9.5MY	-	1	Enquire
-	9D3318C858BA	Centre stack assy, Aluminium, AUTO	9D3318C858BA Centre stack assy, Aluminium, AUTO LHD 9.5MY	-	1	Enquire
-	9D3318C858AA	Centre stack assy, Aluminium, AUTO	9D3318C858AA Centre stack assy, Aluminium, AUTO RHD 9.5MY	-	1	Enquire
-	CD3318C815HA	Centre stack, silver outer black, inner satin chrome knobs	CD3318C815HA Centre stack, silver outer black, inner satin chrome knobs 12MY	-	1	Enquire
-	CD3318C815JE	CENTRE STACK ASSY	CD3318C815JE CENTRE STACK ASSY 12MY	-	1	Enquire
-	8D3318C858AC	CENTRE STACK ASSEMBLY PIANO BLACK	8D3318C858AC CENTRE STACK ASSEMBLY PIANO BLACK LHD	-	1	Enquire
-	8D3318C858EA	Centre stack assy, Piano black, Inner Silver	8D3318C858EA Centre stack assy, Piano black, Inner Silver RHD	-	1	Enquire
-	8D3318C858DB	CENTRE STACK ASSEMBLY PIANO BLACK	8D3318C858DB CENTRE STACK ASSEMBLY PIANO BLACK LHD	-	1	Enquire
-	8D3318C858HA	CENTRE STACK ASSEMBLY PIANO BLACK	8D3318C858HA CENTRE STACK ASSEMBLY PIANO BLACK RHD	-	1	Enquire
-	8D3318C858BC	Centre stack assy, Aluminium	8D3318C858BC Centre stack assy, Aluminium LHD	-	1	Enquire
-	8D3318C858FA	Centre stack assy, Aluminium	8D3318C858FA Centre stack assy, Aluminium RHD	-	1	Enquire
-	8D3318C858CB	Centre stack assy, Silver	8D3318C858CB Centre stack assy, Silver LHD	-	1	Enquire
-	8D3318C858GA	Centre stack assy, Silver	8D3318C858GA Centre stack assy, Silver RHD	-	1	Enquire
-	8D3318C815AB	CENTRE STACK ASSEMBLY PIANO BLACK	8D3318C815AB CENTRE STACK ASSEMBLY PIANO BLACK	-	1	Enquire
-	8D3318C815CD	CENTRE STACK ASSY PIANO BLACK	8D3318C815CD CENTRE STACK ASSY PIANO BLACK	-	1	Enquire
-	8D3318C815BD	CENTRE STACK ASSEMBLY ALUMINIUM	8D3318C815BD CENTRE STACK ASSEMBLY ALUMINIUM	-	1	Enquire
-	9G4318C815AD	CENTRE STACK ASSY SILVER OUTR GRAPHITE INNER	9G4318C815AD CENTRE STACK ASSY SILVER OUTR GRAPHITE INNER	-	1	Enquire
1	CD3313D734DA	SWITCH MAIN BODY	CD3313D734DA SWITCH MAIN BODY 12MY	-	1	Enquire
1	CD3313D734CA	SWITCH MAIN BODY	CD3313D734CA SWITCH MAIN BODY 12MY	-	1	Enquire
1	8D3313D734EC	SWITCH MAIN BODY (PIANO BLACK)	8D3313D734EC SWITCH MAIN BODY (PIANO BLACK)	-	1	Enquire
1	8D3313D734CB	Switch body, Piano Black surround and Silver lens	8D3313D734CB Switch body, Piano Black surround and Silver lens	-	1	Enquire
1	8D3318783AC	HVAC CONTROL KNOB	8D3318783AC HVAC CONTROL KNOB	-	1	Enquire
2	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	8D3318K810AA INFOTAINMENT CONTROL MODULE HARDWARE	-	1	Enquire
3	CG4318C612BA	Module, Centre Console ECU	CG4318C612BA Module, Centre Console ECU 12MY	-	1	Enquire
3	8D3318C612AB	CENTRE CONSOLE MODULE ECU	8D3318C612AB CENTRE CONSOLE MODULE ECU	-	1	Enquire
4	8D3315000BB	Analogue Clock	8D3315000BB Analogue Clock	-	1	Enquire
5	8D3313D734CB	Switch body, Piano Black surround and Silver lens	8D3313D734CB Switch body, Piano Black surround and Silver lens	-	1	Enquire
6	8D3318C612DA	Module, Temp HVAC Rotary Control	8D3318C612DA Module, Temp HVAC Rotary Control	-	1	Enquire
7	8D3313D734BB	Module, Volume / Auto Audio Control	8D3313D734BB Module, Volume / Auto Audio Control	-	1	Enquire
8	CG4318817BA	AUDIO CONTROL KNOB	CG4318817BA AUDIO CONTROL KNOB 12MY	-	2	Enquire
8	8D3318817AB	AUDIO CONROL KNOB	8D3318817AB AUDIO CONROL KNOB	-	2	Enquire
9	8D3318C612EA	Module, Fan Speed HVAC Rotary Control	8D3318C612EA Module, Fan Speed HVAC Rotary Control	-	1	Enquire
10	AD333710106	SWITCH KIT-GLASS DBS MANUAL (MADE TO ORDER)	AD333710106 SWITCH KIT-GLASS DBS MANUAL (MADE TO ORDER) Manual	-	1	Enquire
10	AD333710107	SWITCH KIT-GLASS DBS AUTO (MADE TO ORDER)	AD333710107 SWITCH KIT-GLASS DBS AUTO (MADE TO ORDER) Auto	-	1	Enquire
10	CG4318783AA	Knob, HVAC control, satin chrome	CG4318783AA Knob, HVAC control, satin chrome 12MY	-	2	Enquire
10	8D3318783AC	HVAC CONTROL KNOB	8D3318783AC HVAC CONTROL KNOB	-	2	Enquire
11	AD3315A860BB	PARKING SENSOR SWITC	AD3315A860BB PARKING SENSOR SWITC 11MY, Glass	-	1	Enquire
11	8D3315A860BB	SWITCH-PARKNG SENSOR	8D3315A860BB SWITCH-PARKNG SENSOR	-	1	Enquire
12	AD332C418CA	Switch, Active Damping	AD332C418CA Switch, Active Damping 11MY, Glass	-	1	Enquire
12	8D332C418CA	ACTIVE DAMPING SWTCH	8D332C418CA ACTIVE DAMPING SWTCH	-	1	Enquire
13	AD332C418DA	Switch, DSC Control	AD332C418DA Switch, DSC Control 11MY, Glass	-	1	Enquire
13	6G332C418AA	DSC CONTROL SWITCH	6G332C418AA DSC CONTROL SWITCH	-	1	Enquire
14	AD3315K237BB	FOGLAMP SWITCH	AD3315K237BB FOGLAMP SWITCH 11MY, Glass	-	1	Enquire
14	6G3315K237BB	FOGLAMP SWITCH	6G3315K237BB FOGLAMP SWITCH	-	1	Enquire
15	9G4356051BB	PEN HOLDER	9G4356051BB PEN HOLDER 9.5MY	-	1	Enquire
15	9G4356051BB	PEN HOLDER	9G4356051BB PEN HOLDER 12MY	-	1	Enquire
16	700623	LAMY POCKET PEN-CHROME	700623 LAMY POCKET PEN-CHROME 9.5MY	-	1	Enquire
17	AD3314B626CB	SPORTS MODE SWITCH	AD3314B626CB SPORTS MODE SWITCH 11MY, Glass	-	1	Enquire
17	9D3314B626AA	SPORTS MODE SWITCH	9D3314B626AA SPORTS MODE SWITCH 9.5MY	-	1	Enquire
18	707263	SCREW 4.2x13 FLG T/F	707263 SCREW 4.2x13 FLG T/F	-	2	Enquire
19	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	2	Enquire
21	8D3319H474AA	ANTI RATTLE HOLDER TRANSMISSION VEHICLE	8D3319H474AA ANTI RATTLE HOLDER TRANSMISSION VEHICLE 12MY	-	1	Enquire
22	AG4304708BB	ICM LENS	AG4304708BB ICM LENS 9.5MY on	-	1	Enquire
