39 - TRANSMISSION COOLING SYSTEMS - 39.3 - CLUTCH OIL COOLER FEED AND RETURN PIPES of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 39 - TRANSMISSION COOLING SYSTEMS - 39.3 - CLUTCH OIL COOLER FEED AND RETURN PIPES

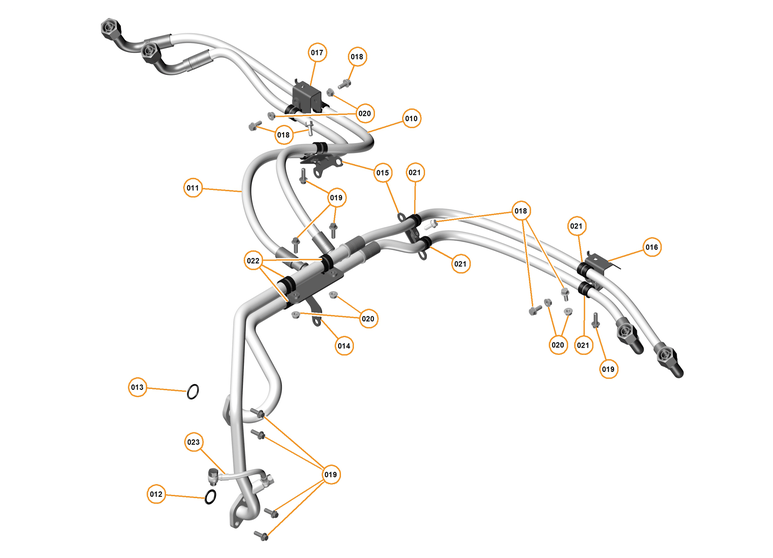

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12G0353CP	Hose - Clutch Cooler - Feed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0354CP	Hose - Clutch Cooler - Return	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11G0158CP	O-ring - Cooler - Trans/Clutch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11G0234CP	O-ring - Clutch Cooler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0357CP	Bracket - Clutch Cooler Pipes - Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0405CP	Bracket - Clutch Cooler Pipes - Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0359CP	Bracket - Clutch Cooler Pipes - Rear Frame - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0360CP	Bracket - Clutch Cooler Pipes - Rear Frame - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA061	Screw - M6x16 - Flange Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA309	NUT - M6-SS - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB005	P CLIP - DIA 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB060	P CLIP - DIA 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0281CP	Pipe Assy - Hybrid Drive Assembly - Feed - inc. Banjo bolts and washers	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12G0353CP	Hose - Clutch Cooler - Feed	12G0353CP Hose - Clutch Cooler - Feed Row ID: ID_BEGB0401_12G0353CP_ContPgHS;	-	1	Enquire
011	12G0354CP	Hose - Clutch Cooler - Return	12G0354CP Hose - Clutch Cooler - Return Row ID: ID_BEGB0402_12G0354CP_ContPgHS;	-	1	Enquire
012	11G0158CP	O-ring - Cooler - Trans/Clutch	11G0158CP O-ring - Cooler - Trans/Clutch Row ID: ID_BEGB0403_11G0158CP_ContPgHS;	-	1	Enquire
013	11G0234CP	O-ring - Clutch Cooler	11G0234CP O-ring - Clutch Cooler Row ID: ID_BEGB0404_11G0234CP_ContPgHS;	-	1	Enquire
014	12G0357CP	Bracket - Clutch Cooler Pipes - Front	12G0357CP Bracket - Clutch Cooler Pipes - Front Row ID: ID_BEGB0405_12G0357CP_ContPgHS;	-	1	Enquire
015	12G0405CP	Bracket - Clutch Cooler Pipes - Rear	12G0405CP Bracket - Clutch Cooler Pipes - Rear Row ID: ID_BEGB0406_12G0405CP_ContPgHS;	-	2	Enquire
016	12G0359CP	Bracket - Clutch Cooler Pipes - Rear Frame - LH	12G0359CP Bracket - Clutch Cooler Pipes - Rear Frame - LH Row ID: ID_BEGB0407_12G0359CP_ContPgHS;	-	1	Enquire
017	12G0360CP	Bracket - Clutch Cooler Pipes - Rear Frame - RH	12G0360CP Bracket - Clutch Cooler Pipes - Rear Frame - RH Row ID: ID_BEGB0408_12G0360CP_ContPgHS;	-	1	Enquire
018	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID_BEGB0409_00RA061_ContPgHS;	-	6	Enquire
019	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID_BEGB0410_00RA083_ContPgHS;	-	8	Enquire
020	00RA309	NUT - M6-SS - HEX	00RA309 NUT - M6-SS - HEX Row ID: ID_BEGB0411_00RA309_ContPgHS;	-	6	Enquire
021	00RB005	P CLIP - DIA 16	00RB005 P CLIP - DIA 16 Row ID: ID_BEGB0412_00RB005_ContPgHS;	-	8	Enquire
022	00RB060	P CLIP - DIA 20	00RB060 P CLIP - DIA 20 Row ID: ID_BEGB0413_00RB060_ContPgHS;	-	4	Enquire
023	12G0281CP	Pipe Assy - Hybrid Drive Assembly - Feed - inc. Banjo bolts and washers	12G0281CP Pipe Assy - Hybrid Drive Assembly - Feed - inc. Banjo bolts and washers Row ID: ID_BEGB0414_12G0281CP_ContPgHS;	-	1	Enquire
