34 - ENGINE OIL SYSTEM - 34.1 - ENGINE OIL TANK of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 34 - ENGINE OIL SYSTEM - 34.1 - ENGINE OIL TANK

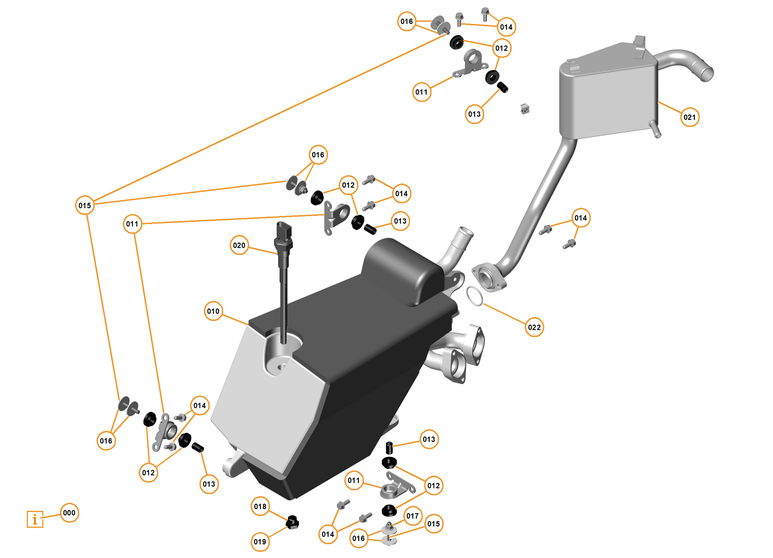

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11F0839CP	Bolt - M8x40 - Engine - Shouldered	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0638CP	Oil Tank - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0146CP	BRKT MOUNT-OIL TAN24	$75.92	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0289CP	AV MOUNT-WCAC 24	$19.29	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0430CP	Spacer - Oil Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA061	Screw - M6x16 - Flange Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA066	Bolt - M6x35 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC043	WASHER - M6XOD25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0021CP	Drain Plug - Oil Tank - M14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23FA328CP	Washer - Crush - Aluminium - 14x18x1.35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0369CP	SENSOR - ENGINE OIL LEVEL/TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0639CP	Breather - Oil Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12FA016CP	O-RING ID30 X THK2.5	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11F0839CP	Bolt - M8x40 - Engine - Shouldered	11F0839CP Bolt - M8x40 - Engine - Shouldered Row ID: ID_BEFC0101_11F0839CP_ContPgHS;	-	1	Enquire
010	12F0638CP	Oil Tank - Engine	12F0638CP Oil Tank - Engine Row ID: ID_BEFC0102_12F0638CP_ContPgHS;	-	1	Enquire
011	11F0146CP	BRKT MOUNT-OIL TAN24	11F0146CP BRKT MOUNT-OIL TAN24 Row ID: ID_BEFC0103_11F0146CP_ContPgHS;	$75.92	4
012	11F0289CP	AV MOUNT-WCAC 24	11F0289CP AV MOUNT-WCAC 24 Row ID: ID_BEFC0104_11F0289CP_ContPgHS;	$19.29	8
013	11F0430CP	Spacer - Oil Tank	11F0430CP Spacer - Oil Tank Row ID: ID_BEFC0105_11F0430CP_ContPgHS;	-	4	Enquire
014	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID_BEFC0106_00RA061_ContPgHS;	-	10	Enquire
015	00RA066	Bolt - M6x35 - Hex	00RA066 Bolt - M6x35 - Hex Row ID: ID_BEFC0107_00RA066_ContPgHS;	-	4	Enquire
016	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID_BEFC0108_00RC043_ContPgHS;	-	8	Enquire
017	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_BEFC0109_00RA055_ContPgHS;	-	2	Enquire
018	11F0021CP	Drain Plug - Oil Tank - M14	11F0021CP Drain Plug - Oil Tank - M14 Row ID: ID_BEFC0110_11F0021CP_ContPgHS;	-	1	Enquire
019	23FA328CP	Washer - Crush - Aluminium - 14x18x1.35	23FA328CP Washer - Crush - Aluminium - 14x18x1.35 Row ID: ID_BEFC0111_23FA328CP_ContPgHS;	-	1	Enquire
020	11M0369CP	SENSOR - ENGINE OIL LEVEL/TEMPERATURE	11M0369CP SENSOR - ENGINE OIL LEVEL/TEMPERATURE Row ID: ID_BEFC0112_11M0369CP_ContPgHS;	-	1	Enquire
021	12F0639CP	Breather - Oil Tank	12F0639CP Breather - Oil Tank Row ID: ID_BEFC0113_12F0639CP_ContPgHS;	-	1	Enquire
022	12FA016CP	O-RING ID30 X THK2.5	12FA016CP O-RING ID30 X THK2.5 Row ID: ID__12FA016CP_ContPgHS;	-	1	Enquire
