32 - ENGINE - 32.10 - POWER UNIT ASSEMBLY AND HARDWARE of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 32 - ENGINE - 32.10 - POWER UNIT ASSEMBLY AND HARDWARE

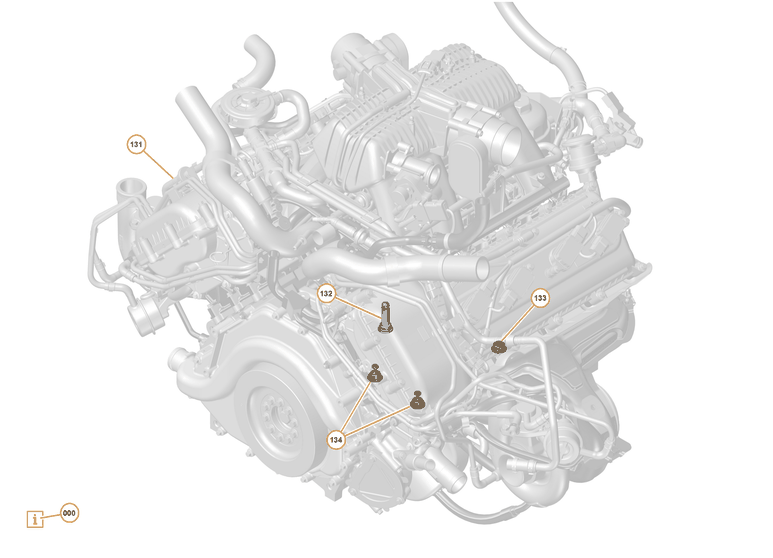

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11F1208CP	Bolt - M10 x 18 - Torx Head	Enquire	To Order
	11F1214CP	Grub Screw - Oil Channel - Engine	Enquire	To Order
	11F1150CP	Cable Tie - Engine	Enquire	To Order

...and 16 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	12FA001CP	Engine - 3.8 litre V8 Twin Turbo - China	Enquire	To Order
	12F0629CP	Engine - 3.8 litre V8 Twin Turbo	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0800CP	Over Pressure - Oil Relief Valve - Engine - Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2209CP	CRANK TIMING PLUG - ENGINE - INC. O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0799CP	ENGINE-BED PLATE PLUG-INCL WASHER	$25.37	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11F1208CP	Bolt - M10 x 18 - Torx Head	11F1208CP Bolt - M10 x 18 - Torx Head Row ID: ID_BEFA01F3_11F1208CP_ContPgHS;	-	1	Enquire
000	11F1214CP	Grub Screw - Oil Channel - Engine	11F1214CP Grub Screw - Oil Channel - Engine Row ID: ID_BEFA01F2_11F1214CP_ContPgHS;	-	1	Enquire
000	11F1150CP	Cable Tie - Engine	11F1150CP Cable Tie - Engine Row ID: ID_BEFA01F1_11F1150CP_ContPgHS;	-	1	Enquire
000	11F1014CP	Oetiker Clip - Engine - 30.8	11F1014CP Oetiker Clip - Engine - 30.8 Row ID: ID_BEFA01E9_11F1014CP_ContPgHS;	-	1	Enquire
000	11F1012CP	Oetiker Clip - Engine - 27.1	11F1012CP Oetiker Clip - Engine - 27.1 Row ID: ID_BEFA01E8_11F1012CP_ContPgHS;	-	1	Enquire
000	11F1009CP	Oetiker Clip - Engine - 22.6	11F1009CP Oetiker Clip - Engine - 22.6 Row ID: ID_BEFA01E7_11F1009CP_ContPgHS;	-	1	Enquire
000	11F1006CP	Oetiker Clip - Engine - 18.5	11F1006CP Oetiker Clip - Engine - 18.5 Row ID: ID_BEFA01E6_11F1006CP_ContPgHS;	-	1	Enquire
000	11F1004CP	Oetiker Clip - Engine - 16.6	11F1004CP Oetiker Clip - Engine - 16.6 Row ID: ID_BEFA01E5_11F1004CP_ContPgHS;	-	1	Enquire
000	11F1003CP	Oetiker Clip - Engine - 16.2	11F1003CP Oetiker Clip - Engine - 16.2 Row ID: ID_BEFA01E4_11F1003CP_ContPgHS;	-	1	Enquire
000	11F1001CP	Oetiker Clip - Engine - 13.8	11F1001CP Oetiker Clip - Engine - 13.8 Row ID: ID_BEFA01E3_11F1001CP_ContPgHS;	-	1	Enquire
000	11F0998CP	Oetiker Clip - Engine - 11.9	11F0998CP Oetiker Clip - Engine - 11.9 Row ID: ID_BEFA01E2_11F0998CP_ContPgHS;	-	1	Enquire
000	11F0994CP	Edge Clip - Pipe - Engine - 001	11F0994CP Edge Clip - Pipe - Engine - 001 Row ID: ID_BEFA01E1_11F0994CP_ContPgHS;	-	1	Enquire
000	11F0993CP	Edge Clip - Pipe - Engine - 223	11F0993CP Edge Clip - Pipe - Engine - 223 Row ID: ID_BEFA01E0_11F0993CP_ContPgHS;	-	1	Enquire
000	11F0992CP	Clip - C-C - 12-12 - Engine	11F0992CP Clip - C-C - 12-12 - Engine Row ID: ID_BEFA01D9_11F0992CP_ContPgHS;	-	1	Enquire
000	11F1131CP	Banjo Washer - Turbo Oil Feed	11F1131CP Banjo Washer - Turbo Oil Feed Row ID: ID_BEFA01D8_11F1131CP_ContPgHS;	-	1	Enquire
000	11F0835CP	Screw - M5x15 - Engine - Self Tapping	11F0835CP Screw - M5x15 - Engine - Self Tapping Row ID: ID_BEFA01D7_11F0835CP_ContPgHS;	-	1	Enquire
000	11F0701CP	Lifting Eye Set - Engine - inc. Bolts	11F0701CP Lifting Eye Set - Engine - inc. Bolts Row ID: ID_BEFA01D6_11F0701CP_ContPgHS;	-	1	Enquire
000	12F0779CP	Stud - M10x93mm	12F0779CP Stud - M10x93mm Row ID: ID_BEFA01D5_12F0779CP_ContPgHS;	-	2	Enquire
000	12F0630CP	STUD - M10X113MM	12F0630CP STUD - M10X113MM Row ID: ID_BEFA01D4_12F0630CP_ContPgHS;	-	1	Enquire
131	12FA001CP	Engine - 3.8 litre V8 Twin Turbo - China	12FA001CP Engine - 3.8 litre V8 Twin Turbo - China Row ID: ID_BEFA01G3_12FA001CP_ContPgHS;	-	1	Enquire
131	12F0629CP	Engine - 3.8 litre V8 Twin Turbo	12F0629CP Engine - 3.8 litre V8 Twin Turbo Row ID: ID_BEFA01F5_12F0629CP_ContPgHS;	-	1	Enquire
132	11F0800CP	Over Pressure - Oil Relief Valve - Engine - Assy	11F0800CP Over Pressure - Oil Relief Valve - Engine - Assy Row ID: ID_BEFA01F6_11F0800CP_ContPgHS;	-	1	Enquire
133	11F2209CP	CRANK TIMING PLUG - ENGINE - INC. O-RING	11F2209CP CRANK TIMING PLUG - ENGINE - INC. O-RING Row ID: ID_BEFA01F7_11F2209CP_ContPgHS;	-	1	Enquire
134	11F0799CP	ENGINE-BED PLATE PLUG-INCL WASHER IN STOCK	11F0799CP ENGINE-BED PLATE PLUG-INCL WASHER Row ID: ID_BEFA01F8_11F0799CP_ContPgHS; IN STOCK	$25.37	2
