36 - Engine Ancilliaries - 36.1 - Hvac Compressor

McLaren Ultimate Series McLaren P1 Coupe

Find Your Part

McLaren Ultimate Series McLaren P1 Coupe - 36 - ENGINE ANCILLIARIES - 36.1 - HVAC COMPRESSOR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1031CP Seal Kit - HVAC Compressor - Engine Enquire To Order
Photo Part No Description Price (each) Stock
12G0388CP HVAC Compressor - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0391CP Coupling - Compressor - Engine - HVAC Enquire To Order
Photo Part No Description Price (each) Stock
12G0212CP STUD BOLT - M8 X 18 Enquire To Order
Photo Part No Description Price (each) Stock
12G0210CP Bracket - AC Compressor Enquire To Order
Photo Part No Description Price (each) Stock
00RA073 SCREW - M6X30 - HEX Enquire To Order
View All

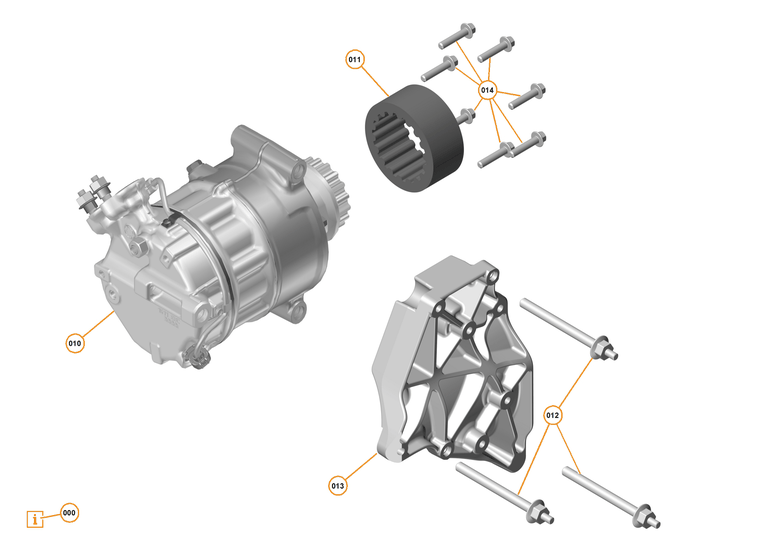

36 - ENGINE ANCILLIARIES - 36.1 - HVAC COMPRESSOR of McLaren McLaren Ultimate Series McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1031CP
Seal Kit - HVAC Compressor - Engine
Row ID: ID_BEFE0401_11F1031CP_ContPgHS; 		- 1 Enquire
010 12G0388CP
HVAC Compressor - Engine
Row ID: ID_BEFE0402_12G0388CP_ContPgHS; 		- 1 Enquire
011 11F0391CP
Coupling - Compressor - Engine - HVAC
Row ID: ID_BEFE0403_11F0391CP_ContPgHS; 		- 1 Enquire
012 12G0212CP
STUD BOLT - M8 X 18
Row ID: ID_BEFE0404_12G0212CP_ContPgHS; 		- 3 Enquire
013 12G0210CP
Bracket - AC Compressor
Row ID: ID_BEFE0405_12G0210CP_ContPgHS; 		- 1 Enquire
014 00RA073
SCREW - M6X30 - HEX
Row ID: ID_BEFE0406_00RA073_ContPgHS; 		- 6 Enquire
