35 - ENGINE COOLING SYSTEM - 35.1 - ENGINE WATER PUMP AND CIRCUIT of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 35 - ENGINE COOLING SYSTEM - 35.1 - ENGINE WATER PUMP AND CIRCUIT

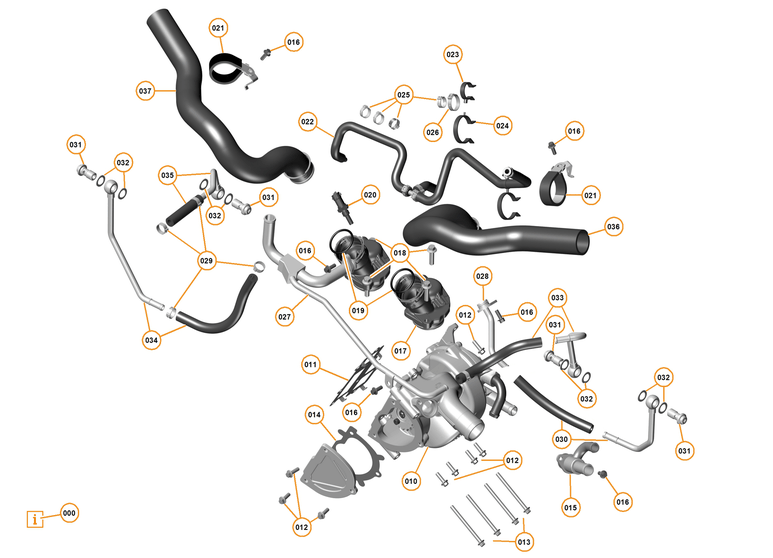

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12FA004CP	WATER PUMP - ENGINE - NO AC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0686CP	ENGINE WATER PUMP GASKET	$30.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11F1793CP	BOLT - M6X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0832CP	Bolt - M6x80 - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2434CP	GASKET SERVICE COVER WATER PUMP	$15.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11F0802CP	Heater Return Stub - Engine - Water Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0822CP	Bolt - M6x16 - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13FA050CP	THERMOSTAT	$243.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11F0809CP	Bolt - M8x30 - Engine - Thermostat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1132CP	O-ring - Radiator Hose - Inboard - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0739CP	Sensor - Engine - Head Temp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0704CP	ENGINE COOLANT TOP24OSE SUPPOR	$25.37	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0692CP	Head Degas - Engine - Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0712CP	Clip - Raymond - 053860	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0713CP	Clip - Raymond - 053986	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB093	OETIKER CLIP - 16.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB143	CLAMP - 25.6-706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0632CP	Heater Feed Pipe - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0680CP	STUB PIPE ASSEMBLY - TURBO WATER FEED - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0487CP	PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0684CP	Banjo Bolt - M14x1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0685CP	Washer - Sealing - M14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0488CP	PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0489CP	PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0490CP	PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1021CP	RADIATOR - INBOARD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1022CP	RADIATOR - INBOARD RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12FA004CP	WATER PUMP - ENGINE - NO AC	12FA004CP WATER PUMP - ENGINE - NO AC Row ID: ID_BEFD0102_12FA004CP_ContPgHS;	-	1	Enquire
011	11F0686CP	ENGINE WATER PUMP GASKET IN STOCK	11F0686CP ENGINE WATER PUMP GASKET Row ID: ID_BEFD0103_11F0686CP_ContPgHS; IN STOCK	$30.44	1
012	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX Row ID: ID_BEFD0104_11F1793CP_ContPgHS;	-	8	Enquire
013	11F0832CP	Bolt - M6x80 - Engine	11F0832CP Bolt - M6x80 - Engine Row ID: ID_BEFD0105_11F0832CP_ContPgHS;	-	4	Enquire
014	11F2434CP	GASKET SERVICE COVER WATER PUMP IN STOCK	11F2434CP GASKET SERVICE COVER WATER PUMP Row ID: ID_BEFD0106_11F2434CP_ContPgHS; IN STOCK	$15.21	1
015	11F0802CP	Heater Return Stub - Engine - Water Pump	11F0802CP Heater Return Stub - Engine - Water Pump Row ID: ID_BEFD0107_11F0802CP_ContPgHS;	-	1	Enquire
016	11F0822CP	Bolt - M6x16 - Engine	11F0822CP Bolt - M6x16 - Engine Row ID: ID_BEFD0108_11F0822CP_ContPgHS;	-	9	Enquire
017	13FA050CP	THERMOSTAT IN STOCK	13FA050CP THERMOSTAT Row ID: ID_BEFD0109_13FA050CP_ContPgHS; IN STOCK	$243.70	2
018	11F0809CP	Bolt - M8x30 - Engine - Thermostat	11F0809CP Bolt - M8x30 - Engine - Thermostat Row ID: ID_BEFD0110_11F0809CP_ContPgHS;	-	4	Enquire
019	11F1132CP	O-ring - Radiator Hose - Inboard - Engine	11F1132CP O-ring - Radiator Hose - Inboard - Engine Row ID: ID_BEFD0111_11F1132CP_ContPgHS;	-	2	Enquire
020	11F0739CP	Sensor - Engine - Head Temp	11F0739CP Sensor - Engine - Head Temp Row ID: ID_BEFD0112_11F0739CP_ContPgHS;	-	1	Enquire
021	11F0704CP	ENGINE COOLANT TOP24OSE SUPPOR	11F0704CP ENGINE COOLANT TOP24OSE SUPPOR Row ID: ID_BEFD0113_11F0704CP_ContPgHS;	$25.37	2
022	12F0692CP	Head Degas - Engine - Assembly	12F0692CP Head Degas - Engine - Assembly Row ID: ID_BEFD0114_12F0692CP_ContPgHS;	-	1	Enquire
023	12F0712CP	Clip - Raymond - 053860	12F0712CP Clip - Raymond - 053860 Row ID: ID_BEFD0115_12F0712CP_ContPgHS;	-	1	Enquire
024	12F0713CP	Clip - Raymond - 053986	12F0713CP Clip - Raymond - 053986 Row ID: ID_BEFD0116_12F0713CP_ContPgHS;	-	1	Enquire
025	00RB093	OETIKER CLIP - 16.6	00RB093 OETIKER CLIP - 16.6 Row ID: ID_BEFD0117_00RB093_ContPgHS;	-	4	Enquire
026	00RB143	CLAMP - 25.6-706R	00RB143 CLAMP - 25.6-706R Row ID: ID_BEFD0118_00RB143_ContPgHS;	-	1	Enquire
027	12F0632CP	Heater Feed Pipe - Engine	12F0632CP Heater Feed Pipe - Engine Row ID: ID_BEFD0119_12F0632CP_ContPgHS;	-	1	Enquire
028	12F0680CP	STUB PIPE ASSEMBLY - TURBO WATER FEED - LH	12F0680CP STUB PIPE ASSEMBLY - TURBO WATER FEED - LH Row ID: ID_BEFD0120_12F0680CP_ContPgHS;	-	1	Enquire
030	12F0487CP	PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH	12F0487CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH Row ID: ID_BEFD0122_12F0487CP_ContPgHS;	-	1	Enquire
031	12F0684CP	Banjo Bolt - M14x1.5	12F0684CP Banjo Bolt - M14x1.5 Row ID: ID_BEFD0123_12F0684CP_ContPgHS;	-	4	Enquire
032	12F0685CP	Washer - Sealing - M14	12F0685CP Washer - Sealing - M14 Row ID: ID_BEFD0124_12F0685CP_ContPgHS;	-	8	Enquire
033	12F0488CP	PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - LH	12F0488CP PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - LH Row ID: ID_BEFD0125_12F0488CP_ContPgHS;	-	1	Enquire
034	12F0489CP	PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH	12F0489CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH Row ID: ID_BEFD0126_12F0489CP_ContPgHS;	-	1	Enquire
035	12F0490CP	PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - RH	12F0490CP PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - RH Row ID: ID_BEFD0127_12F0490CP_ContPgHS;	-	1	Enquire
036	11F1021CP	RADIATOR - INBOARD LH	11F1021CP RADIATOR - INBOARD LH Row ID: ID_BEFD0128_11F1021CP_ContPgHS;	-	1	Enquire
037	11F1022CP	RADIATOR - INBOARD RH	11F1022CP RADIATOR - INBOARD RH Row ID: ID_BEFD0129_11F1022CP_ContPgHS;	-	1	Enquire
